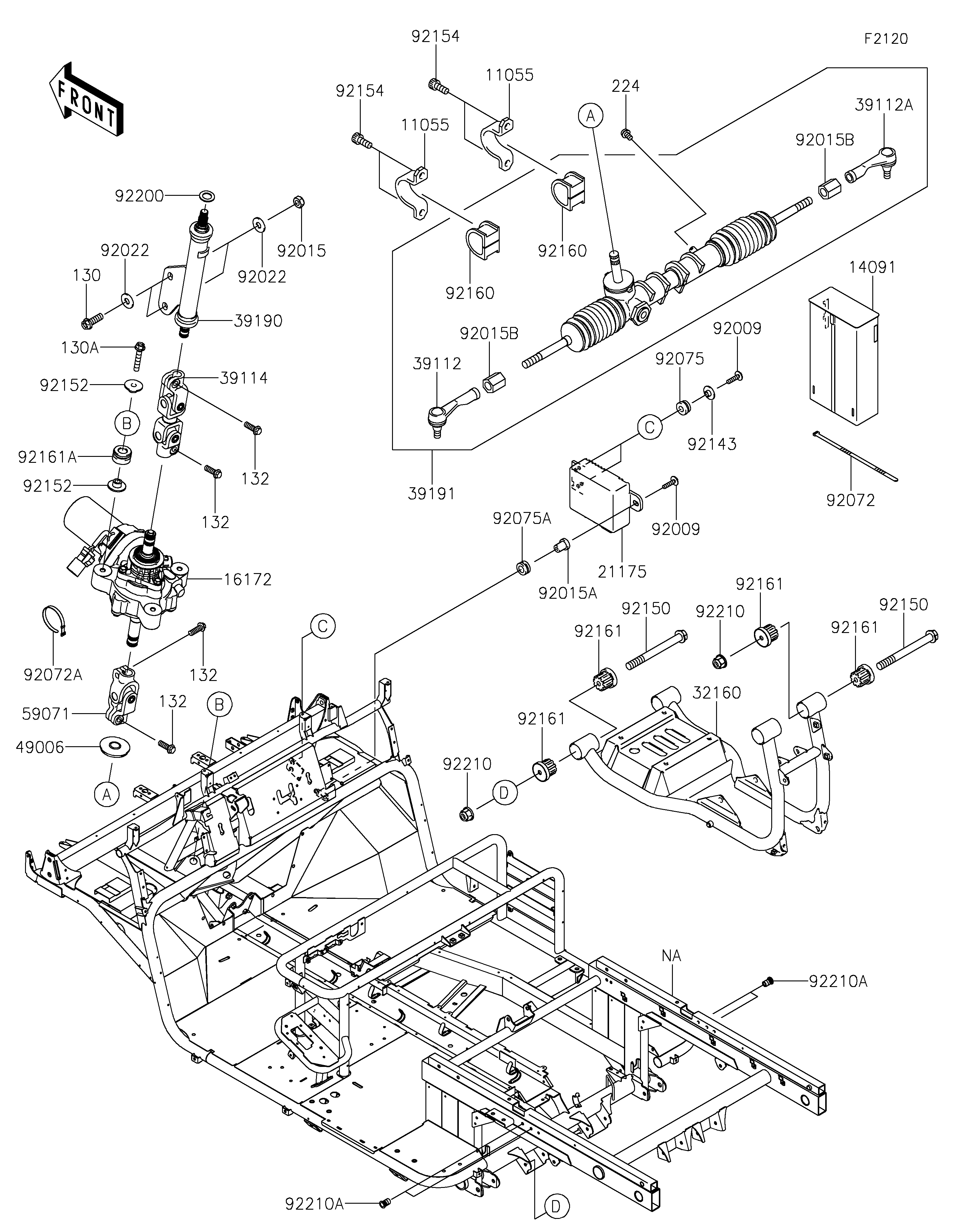

2021 MULE™ 4010 TRANS4x4® CAMO - Frame

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
14091
16172
21175
32160
39112
39112A
39114
39190
39191
49006
59071
92009
92009
92015
92015A
92015B
92015B
92022
92022
92072
92072A
92075
92075A
92143
92150
92150
92152
92152
92154
92154
92160
92160
92161
92161
92161
92161
92161A
92200
92210
92210
92210A
92210A
130
130A
132
132
132
132
224
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STEERING GEAR 11055 11055-1240 2
COVER,ECU 14091 14091-7560 1
ACTUATOR 16172 16172-0028 1
CONTROL UNIT-ELECTRONIC,E.P.S 21175 21175-7501 1
FRAME-COMP,RR 32160 32160-0004 1
RODEND-TIE,STEERING GEAR,LH 39112 39112-1068 1
RODEND-TIE,STEERING GEAR,RH 39112A 39112-1069 1
SHAFT-COMP-STRG 39114 39114-0019 1
SHAFT-ASSY-STEERING 39190 39190-7501 1
GEAR-ASSY-STEERING 39191 39191-0021 1
BOOT,STEERING SHAFT,LWR 49006 49006-1255 1
JOINT 59071 59071-7501 1
SCREW,6X28,BLACK 92009 92009-1400 3
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
NUT,RUBBER,6MM 92015A 92015-1692 1
NUT 92015B 92015-1864 2
WASHER,10.5X26X2.3 92022 92022-044 4
BAND,L=123 92072 92072-030 1
BAND,L=186 92072A 92072-056 1
DAMPER,RUBBER 92075 92075-1123 2
DAMPER 92075A 92075-294 1
COLLAR,L=6.5 92143 92143-1025 2
BOLT,FLANGED,10X100 92150 92150-1731 4
COLLAR,8.5X30X10.6 92152 92152-2149 6
BOLT,SOCKET,10X23 92154 92154-1434 4
DAMPER,STEERING GEAR 92160 92160-1084 2
DAMPER 92161 92161-0800 8
DAMPER,ACTUATOR 92161A 92161-7517 3
WASHER,15X25X1.6 92200 92200-0460 1
NUT,LOCK,FLANGED,10MM 92210 92210-0276 4
NUT,POP,6MM,L=15 92210A 92210-1397 4
BOLT-FLANGED,10X30 130 130BA1030 2
BOLT-FLANGED,8X45 130A 130CA0845 3
BOLT-FLANGED-SMALL,8X25 132 132BA0825 4
SCREW-PAN-WP-CROS,5X8 224 224AA0508 1
