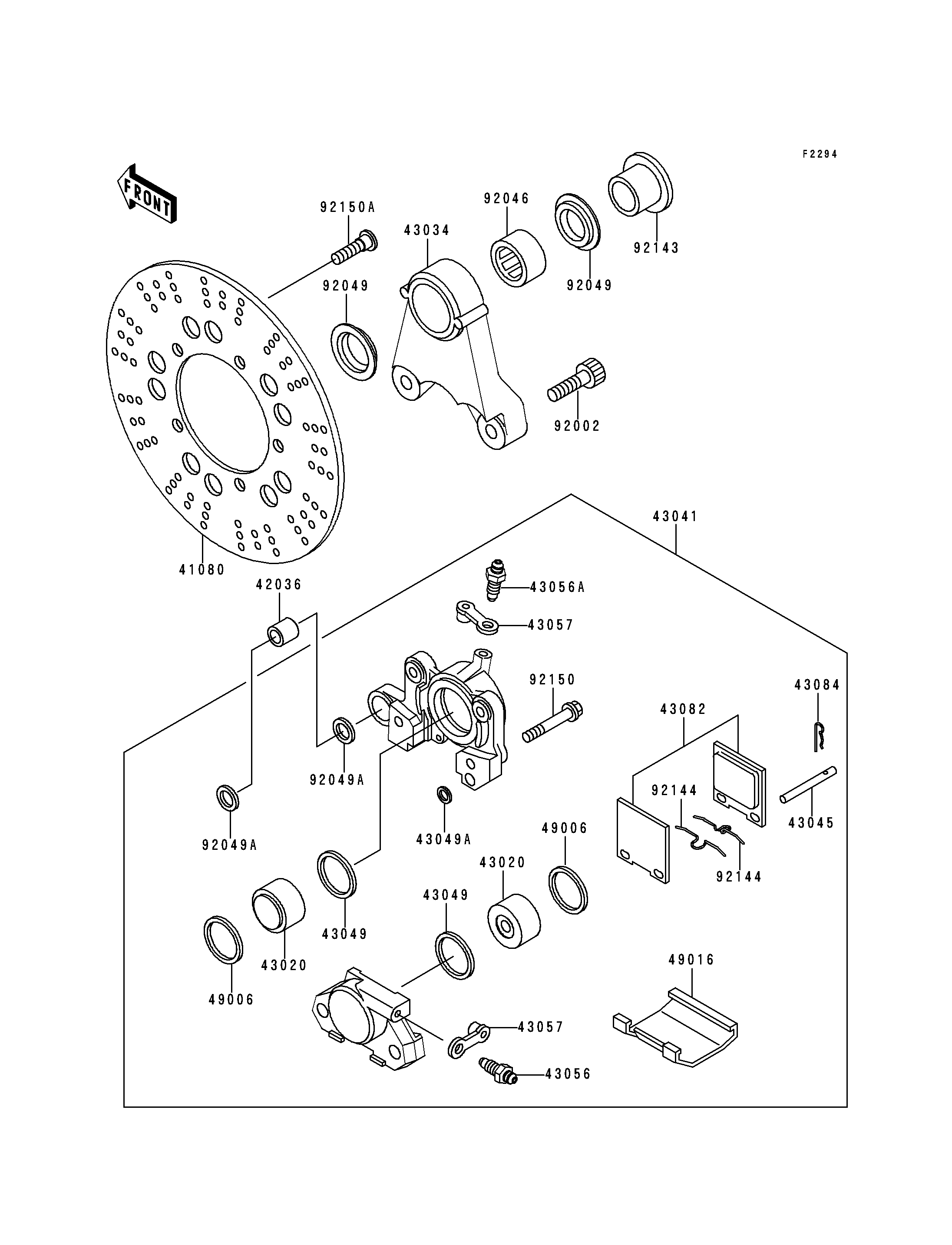

2000 ZRX1100 - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
41080
42036
43020
43020
43034
43041
43045
43049
43049
43049A
43056
43056A
43057
43057
43082
43084
49006
49006
49016
92002
92046
92049
92049
92049A
92049A
92143
92144
92144
92150
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,RR,GOLD 41080 41080-1422-CL 1
SLEEVE,8.1X14X17.6 42036 42036-1260 1
PISTON-COMP-BRAKE 43020 43020-1107 2
HOLDER-BRAKE,REAR CALIPER,GRAY 43034 43034-1124-FS 1
CALIPER-ASSY,RR 43041 43041-1626 1
SHAFT-CALIPER 43045 43045-007 2
PACKING,PISTON SEAL 43049 43049-001 2
PACKING,SEAL,6.5X11.5X2.2 43049A 43049-1004 1
BREATHER 43056 43056-003 1
BREATHER-BRAKE 43056A 43056-1054 1
CAP-BREATHER 43057 43057-003 2
PAD-ASSY-BRAKE 43082 43082-1200 1
CLAMP,PAD 43084 43084-003 2
BOOT,PISTON SEAL 49006 49006-1212 2
COVER-SEAL 49016 49016-1145 1
BOLT,SOCKET,8X25 92002 92002-1442 2
BEARING-NEEDLE,BM2817 92046 92046-1111 1
SEAL-OIL 92049 92049-1181 2
SEAL-OIL 92049A 92049-1339 2
COLLAR,L=35 92143 92143-1043 1
SPRING,PAD 92144 92144-1401 2
BOLT,FLANGED,10X45 92150 92150-1273 2
BOLT,SOCKET,8X30 92150A 92150-1771 5
