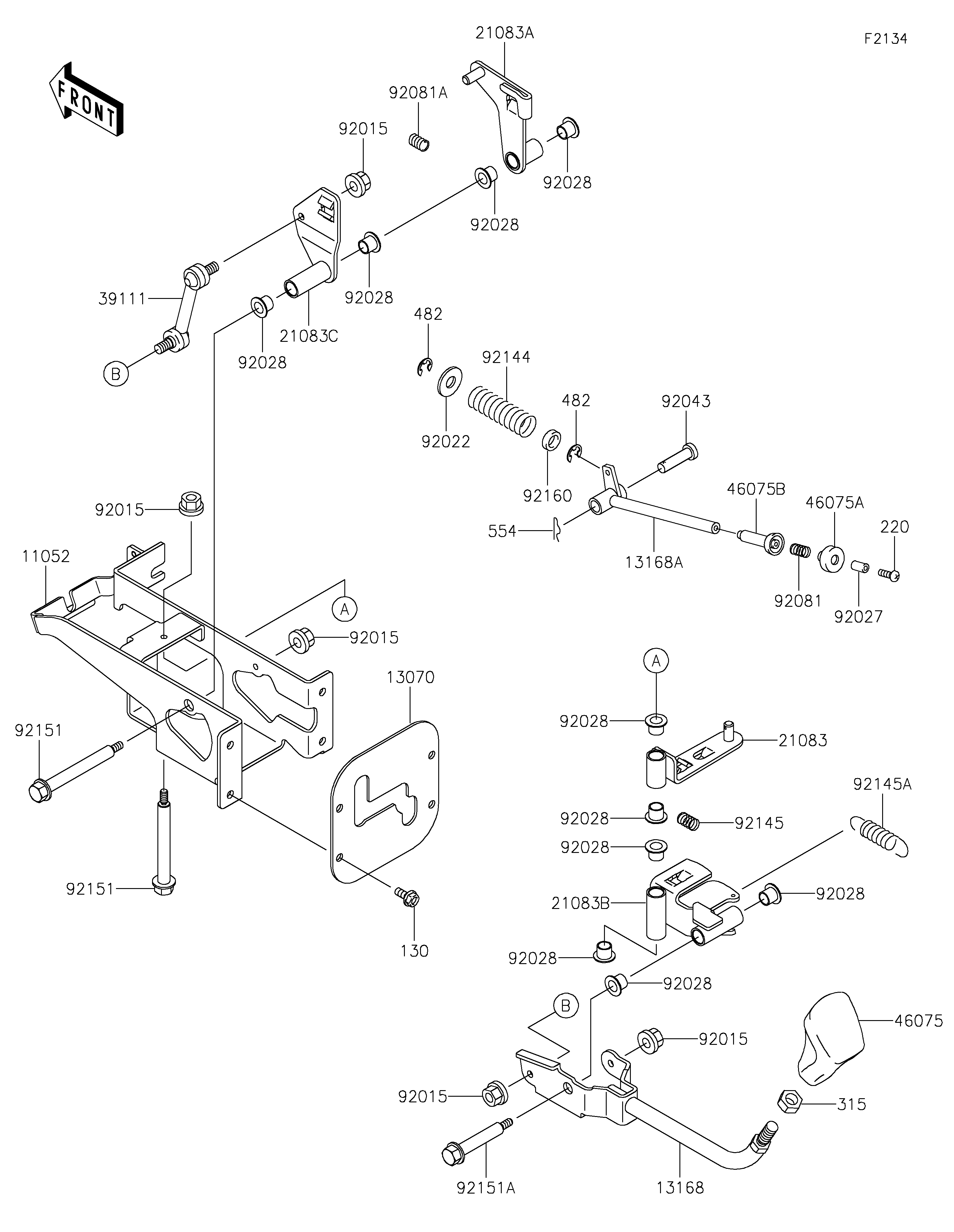

2021 MULE 4000 TRANS™ - Shift Lever(s)

DOWNLOAD PDF
SELECT A NEW PART
11052
13070
13168
13168A
21083
21083A
21083B
21083C
39111
46075
46075A
46075B
92015
92015
92015
92015
92015
92022
92027
92028
92028
92028
92028
92028
92028
92028
92028
92028
92028
92043
92081
92081A
92144
92145
92145A
92151
92151
92151A
92160
130
220
315
482
482
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SHIFT CONTROL 11052 11052-1263 1
GUIDE 13070 13070-1363 1
LEVER,SHIFT 13168 13168-0895 1
LEVER,DIFF MODE CONTROL 13168A 13168-1428 1
ARM 21083 21083-1151 1
ARM 21083A 21083-1152 1
ARM 21083B 21083-1155 1
ARM 21083C 21083-1162 1
ROD-TIE 39111 39111-1169 1
GRIP,SHIFT LEVER 46075 46075-0054 1
GRIP,UPP 46075A 46075-1085 1
GRIP,LWR 46075B 46075-1086 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 5
WASHER,10.5X26X2.3 92022 92022-044 1
COLLAR 92027 92027-1987 1
BUSHING 92028 92028-1507 10
PIN,10X34 92043 92043-1069 1
SPRING 92081 92081-1714 1
SPRING 92081A 92081-1847 1
SPRING 92144 92144-1510 1
SPRING 92145 92145-0073 1
SPRING 92145A 92145-1326 1
BOLT,6MM 92151 92151-1746 2
BOLT,6MM 92151A 92151-1747 1
DAMPER 92160 92160-3754 1
BOLT-FLANGED,6X14 130 130AB0614 4
SCREW-PAN-CROS,5X14 220 220AB0514 1
NUT-HEX-FINE 315 315BB1000 1
CIRCLIP-TYPE-E,8MM 482 482EA8000 2
PIN-SNAP,10MM 554 554DA1000 1
