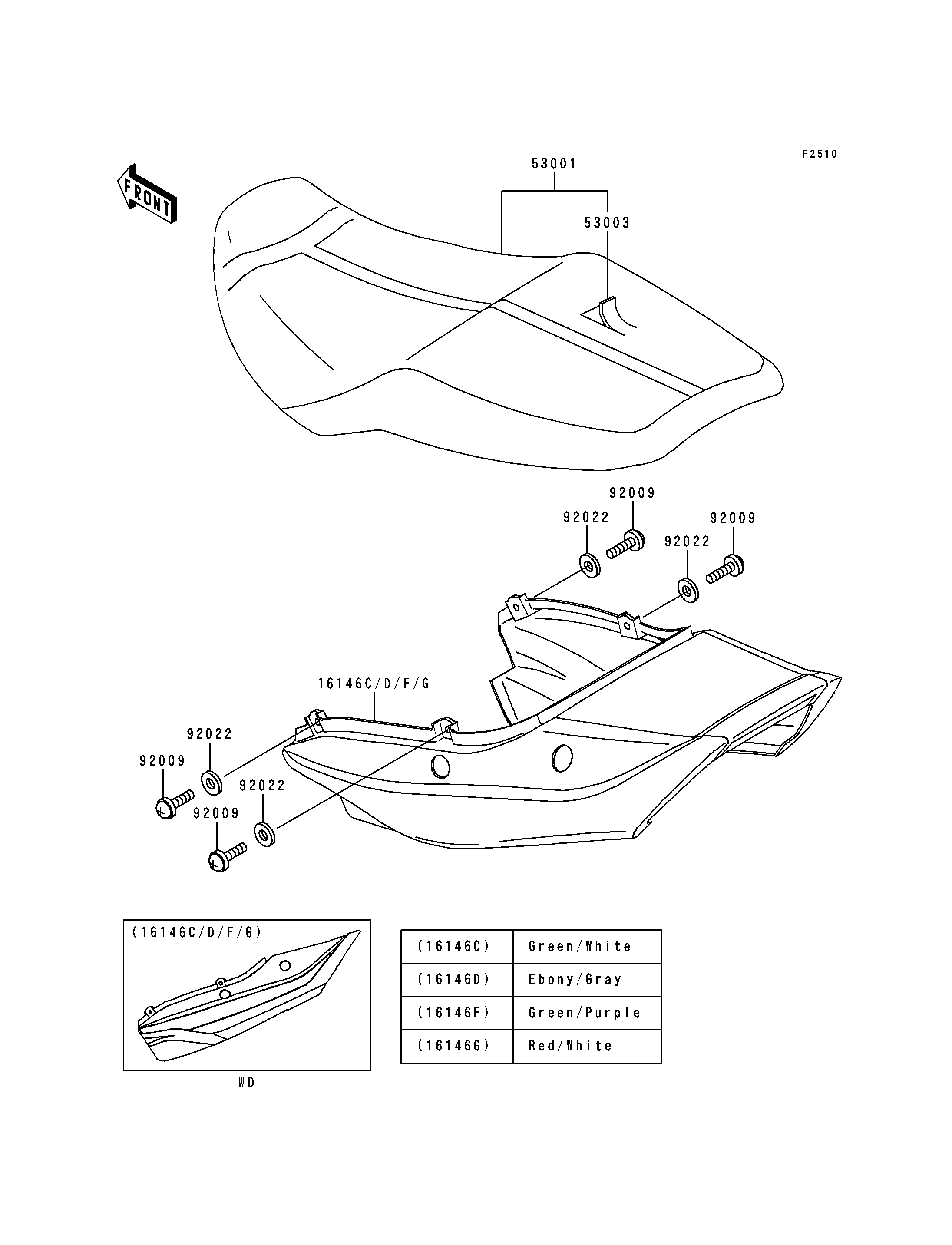

16146F
53001
53003
92009
92009
92009
92009
92022
92022
92022
92022
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-ASSY,SEAT,GREEN/PURPLE 16146F 16146-5062-U6 1
SEAT-ASSY,DUAL,BLACK 53001 53001-1831-MA 1
LEATHER,SEAT,BLACK 53003 53003-1381-MA 1
SCREW,6X14 92009 92009-1288 4
WASHER,6.5X16X1.0 92022 92022-1654 4
COVER-ASSY,SEAT,EBONY/GRAY 16146D 16146-5060-FG 1
COVER-ASSY,SEAT,RED/WHITE 16146G 16146-5064-P9 1
