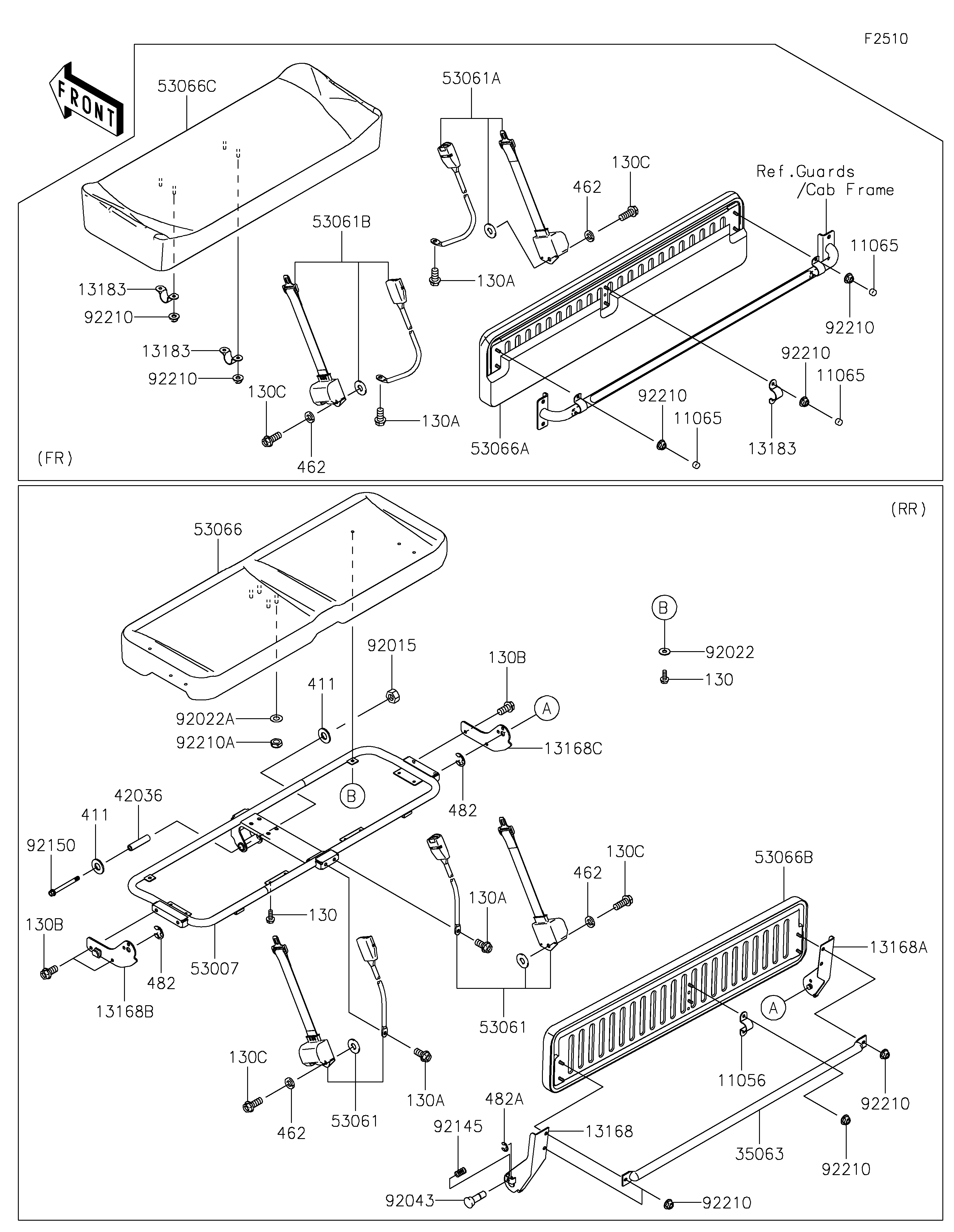

2021 MULE 4000 TRANS™ - Seat

DOWNLOAD PDF
SELECT A NEW PART
11056
11065
11065
11065
13168
13168A
13168B
13168C
13183
13183
13183
35063
42036
53007
53061
53061
53061A
53061B
53066
53066A
53066B
53066C
92015
92022
92022A
92043
92145
92150
92210
92210
92210
92210
92210
92210
92210
92210
92210A
130
130
130A
130A
130A
130A
130B
130B
130C
130C
130C
130C
411
411
462
462
462
462
482
482
482A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT BACK 11056 11056-0034 1
CAP 11065 11065-7504 6
LEVER,SEAT,TOP,LH 13168 13168-7502 1
LEVER,SEAT,TOP,RH 13168A 13168-7503 1
LEVER,SEAT,LWR,LH 13168B 13168-7504 1
LEVER,SEAT,LWR,RH 13168C 13168-7505 1
PLATE,SEAT 13183 13183-1400 3
STAY,REAR BACK 35063 35063-7510 1
SLEEVE,12.1X20X85 42036 42036-7501 1
FRAME-SEAT 53007 53007-0327 1
BELT-SEAT,RR 53061 53061-0314 2
BELT-SEAT,FR,RH 53061A 53061-0315 1
BELT-SEAT,FR,LH 53061B 53061-0316 1
SEAT-ASSY,RR,LWR,BLACK 53066 53066-0237-MA 1
SEAT-ASSY,FR,BACK,BLACK 53066A 53066-0258-MA 1
SEAT-ASSY,RR,BACK,BLACK 53066B 53066-0259-MA 1
SEAT-ASSY,FR,LWR,BLACK 53066C 53066-0274-MA 1
NUT,LOCK,12MM,BLACK 92015 92015-1190 1
WASHER,7X18X1.2 92022 92022-1545 2
WASHER,10.5X20X1 92022A 92022-239 4
PIN 92043 92043-7503 1
SPRING 92145 92145-7507 1
BOLT,FLANGED,12X117 92150 92150-1895 1
NUT,FLANGED,LOCK,8MM 92210 92210-0005 16
NUT,LOCK,10MM 92210A 92210-0278 4
BOLT-FLANGED,6X16 130 130BA0616 10
BOLT-FLANGED,12X20 130A 130BA1220 4
BOLT-FLANGED,10X20 130B 130BB1020 4
BOLT-FLANGED,12X25 130C 130BB1225 4
WASHER-PLAIN 411 411AB1200 2
WASHER-SPRING,12MM 462 462DB1200 4
CIRCLIP-TYPE-E,12MM 482 482EA0200 2
CIRCLIP-TYPE-E,8MM 482A 482EA8000 1
