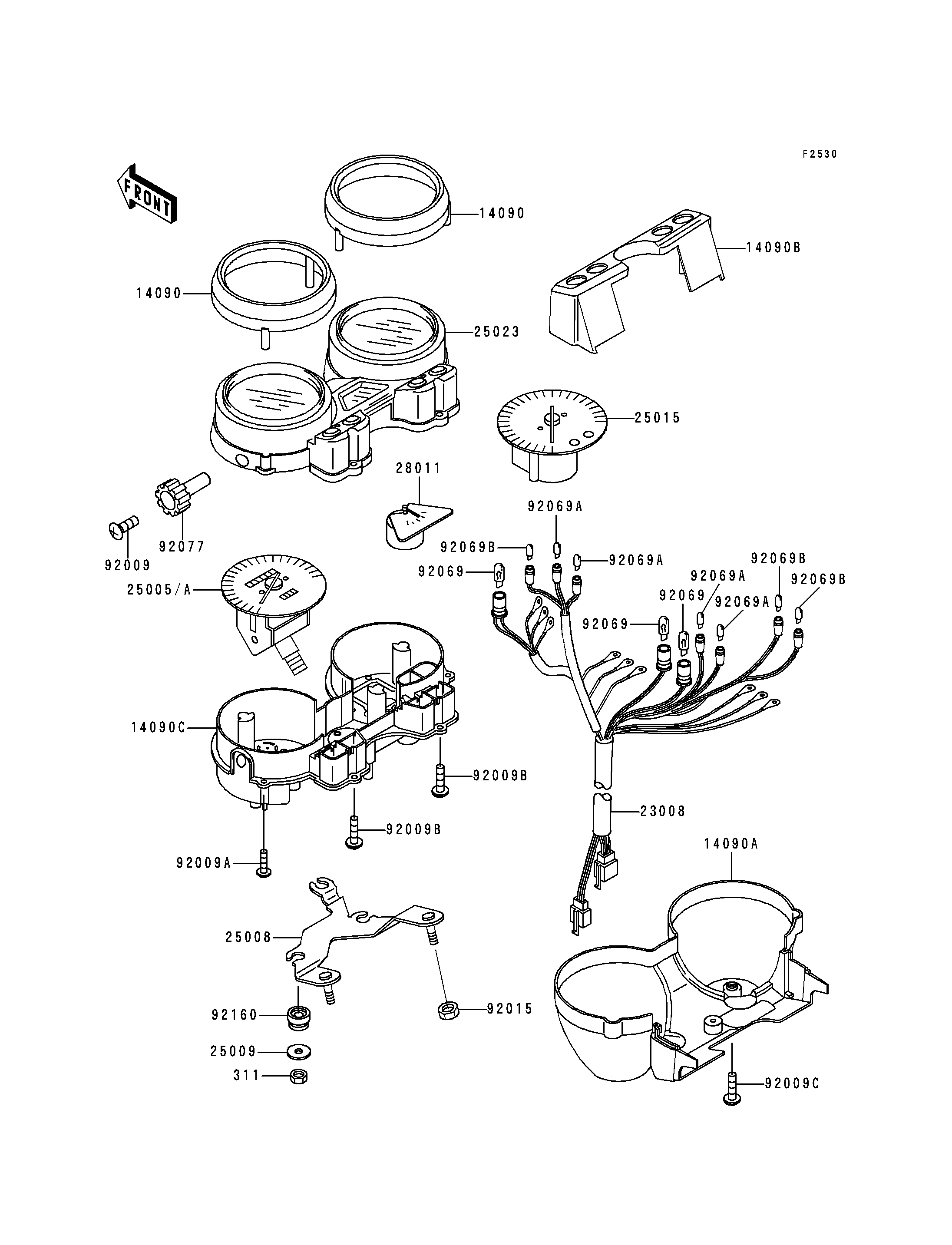

Parts Diagrams |
311
14090
14090
14090A
14090B
14090C
23008
25008
25009
25015
25023
28011
92009
92009A
92009B
92009B
92009C
92015
92069
92069
92069
92069A
92069A
92069A
92069A
92069B
92069B
92069B
92077
92160
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT-HEX | 311 | 311C0500 | 3 | ||
COVER,SPEEDO&TACHOMETER | 14090 | 14090-1603 | 2 | ||
COVER,METER,LWR | 14090A | 14090-1607 | 1 | ||
COVER,PILOT BOX,UPP | 14090B | 14090-1618 | 1 | ||
COVER,METER HOUSING | 14090C | 14090-1842 | 1 | ||
SOCKET-ASSY,METER | 23008 | 23008-1583 | 1 | ||
BRACKET-METER | 25008 | 25008-1213 | 1 | ||
WASHER,5.2X16X1.2 | 25009 | 25009-004 | 3 | ||
TACHOMETER,X1000R/MIN | 25015 | 25015-1345 | 1 | ||
COVER-METER CASE,UPP | 25023 | 25023-1230 | 1 | ||
METER,FUEL | 28011 | 28011-1160 | 1 | ||
SCREW,2X6,BLACK | 92009 | 92009-1172 | 1 | ||
SCREW,TAPPING,3X16 | 92009A | 92009-1391 | 4 | ||
SCREW,TAPPING,4X14 | 92009B | 92009-1503 | 2 | ||
SCREW,TAPPING,4X16 | 92009C | 92009-1601 | 3 | ||
NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 2 | ||
BULB,12V 1.7W | 92069 | 92069-1059 | 3 | ||
BULB,12V 3W | 92069A | 92069-1068 | 4 | ||
BULB,12V 1.7W | 92069B | 92069-1070 | 3 | ||
KNOB,METER | 92077 | 92077-1073 | 1 | ||
DAMPER | 92160 | 92160-1178 | 3 | ||
SPEEDOMETER,KPH | 25005 | 25005-1621 | 1 | ||
SPEEDOMETER,MPH | 25005A | 25005-1622 | 1 |
NUT-HEX | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
COVER,SPEEDO&TACHOMETER | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER,METER,LWR | |
REF # | 14090A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,PILOT BOX,UPP | |
REF # | 14090B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,METER HOUSING | |
REF # | 14090C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOCKET-ASSY,METER | |
REF # | 23008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-METER | |
REF # | 25008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,5.2X16X1.2 | |
REF # | 25009 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
TACHOMETER,X1000R/MIN | |
REF # | 25015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-METER CASE,UPP | |
REF # | 25023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
METER,FUEL | |
REF # | 28011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,2X6,BLACK | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,3X16 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X14 | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X16 | |
REF # | 92009C |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 1.7W | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BULB,12V 3W | |
REF # | 92069A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BULB,12V 1.7W | |
REF # | 92069B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
KNOB,METER | |
REF # | 92077 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SPEEDOMETER,KPH | |
REF # | 25005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPEEDOMETER,MPH | |
REF # | 25005A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
