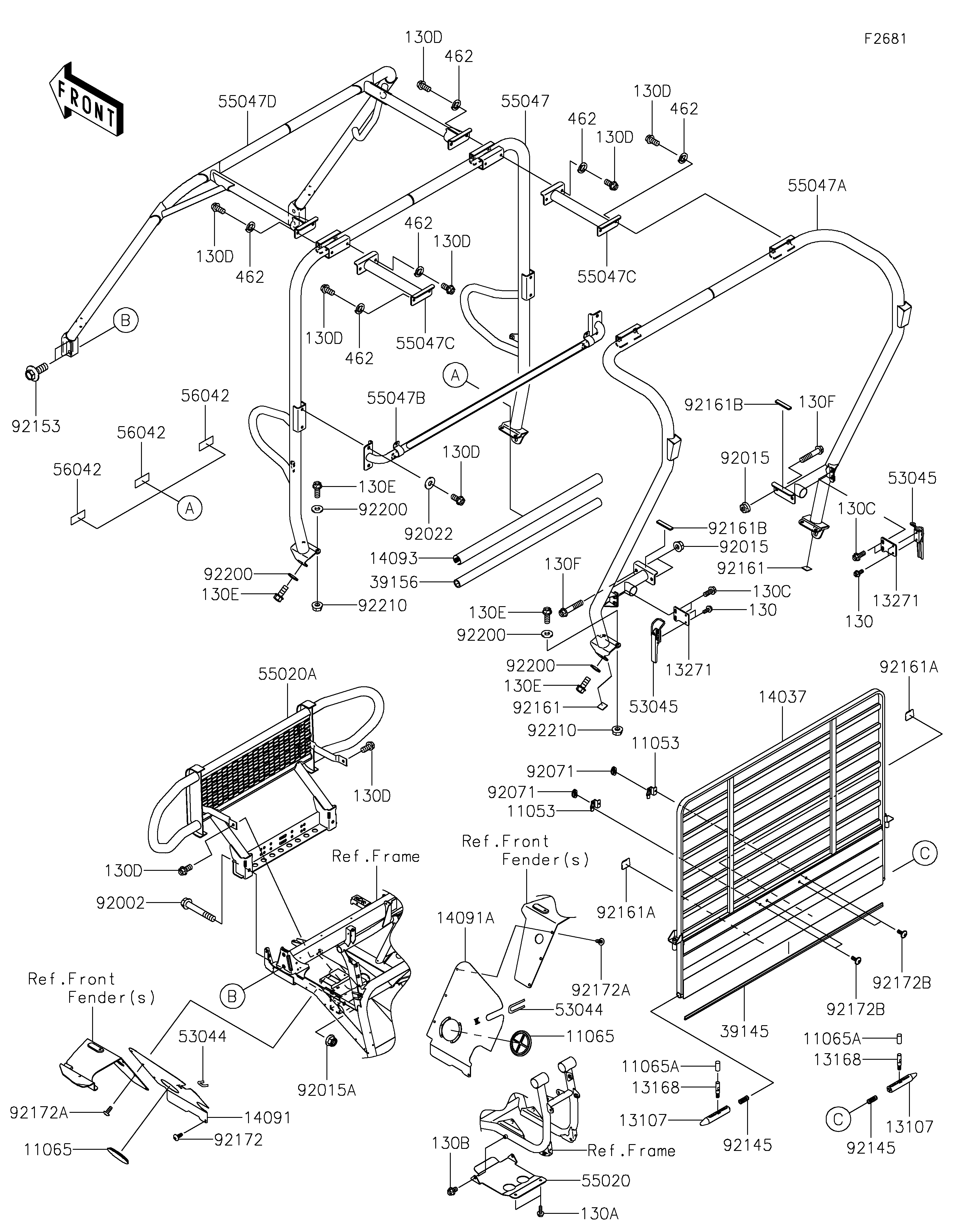

2021 MULE 4000 TRANS™ - Guards/Cab Frame

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11053
11053
11065
11065
11065
11065
11065A
11065A
11065A
11065A
13107
13107
13107
13107
13168
13168
13168
13168
13271
13271
13271
13271
14037
14037
14091
14091
14091A
14091A
14093
14093
39145
39145
39156
39156
53044
53044
53044
53044
53045
53045
53045
53045
55020
55020
55020A
55020A
55047
55047
55047A
55047A
55047B
55047B
55047C
55047C
55047C
55047C
55047D
55047D
56042
56042
56042
56042
56042
56042
92002
92002
92015
92015
92015
92015
92015A
92015A
92022
92022
92071
92071
92071
92071
92145
92145
92145
92145
92153
92153
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92172
92172
92172A
92172A
92172A
92172A
92172B
92172B
92172B
92172B
92200
92200
92200
92200
92200
92200
92200
92200
92210
92210
92210
92210
130
130
130
130
130A
130A
130B
130B
130C
130C
130C
130C
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130E
130E
130E
130E
130E
130E
130E
130E
130F
130F
130F
130F
462
462
462
462
462
462
462
462
462
462
462
462
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SCREEN 11053 11053-7528 2
CAP,F.BLACK 11065 11065-1053-6Z 2
CAP 11065A 11065-7503 2
SHAFT 13107 13107-7501 2
LEVER 13168 13168-7506 2
PLATE,HOOK 13271 13271-7540 2
SCREEN,REAR CAB,T.BLACK 14037 14037-0811-388 1
COVER,FR,LH 14091 14091-1758 1
COVER,FR,RH 14091A 14091-1759 1
COVER 14093 14093-0907 1
TRIM-SEAL,L=1157 39145 39145-7502 1
PAD 39156 39156-7506 1
TRIM 53044 53044-1137 2
HOOK-ASSY 53045 53045-7501 2
GUARD,GEAR CASE 55020 55020-2295 1
GUARD,FR 55020A 55020-2299 1
BAR-COMP,CNT,T.BLACK 55047 55047-0353-388 1
BAR-COMP,RR,T.BLACK 55047A 55047-0385-388 1
BAR-COMP,FRONT SEAT,T.BLACK 55047B 55047-7503-388 1
BAR-COMP,TOP,T.BLACK 55047C 55047-7504-388 2
BAR-COMP,FR,T.BLACK 55047D 55047-7510-388 1
ADHESIVE 56042 56042-7502 3
BOLT,FLANGED,12X75 92002 92002-1661 2
NUT,FLANGED,10MM 92015 92015-1428 4
NUT,LOCK,FLANGED,12MM 92015A 92015-1433 2
WASHER,10.5X26X2.3 92022 92022-044 4
GROMMET 92071 92071-7505 2
SPRING,TENSIONER 92145 92145-1215 2
BOLT,FLANGED,14X36 92153 92153-1282 4
DAMPER 92161 92161-0020 2
DAMPER 92161A 92161-0061 2
DAMPER 92161B 92161-7514 2
SCREW,TAPPING,6X16 92172 92172-0739 2
SCREW,6X16 92172A 92172-0826 6
SCREW,6X14 92172B 92172-0996 4
WASHER,10.2X23X2.5 92200 92200-0211 12
NUT,LOCK,FLANGED,10MM 92210 92210-0276 8
BOLT-FLANGED,6X14 130 130BA0614 4
BOLT-FLANGED,6X16 130A 130BA0616 2
BOLT-FLANGED,8X12 130B 130BA0812 2
BOLT-FLANGED,8X20 130C 130BA0820 4
BOLT-FLANGED,10X20 130D 130BA1020 18
BOLT-FLANGED,10X25 130E 130BA1025 12
BOLT-FLANGED,10X50 130F 130BA1050 4
WASHER-SPRING,10MM 462 462DA1000 12
