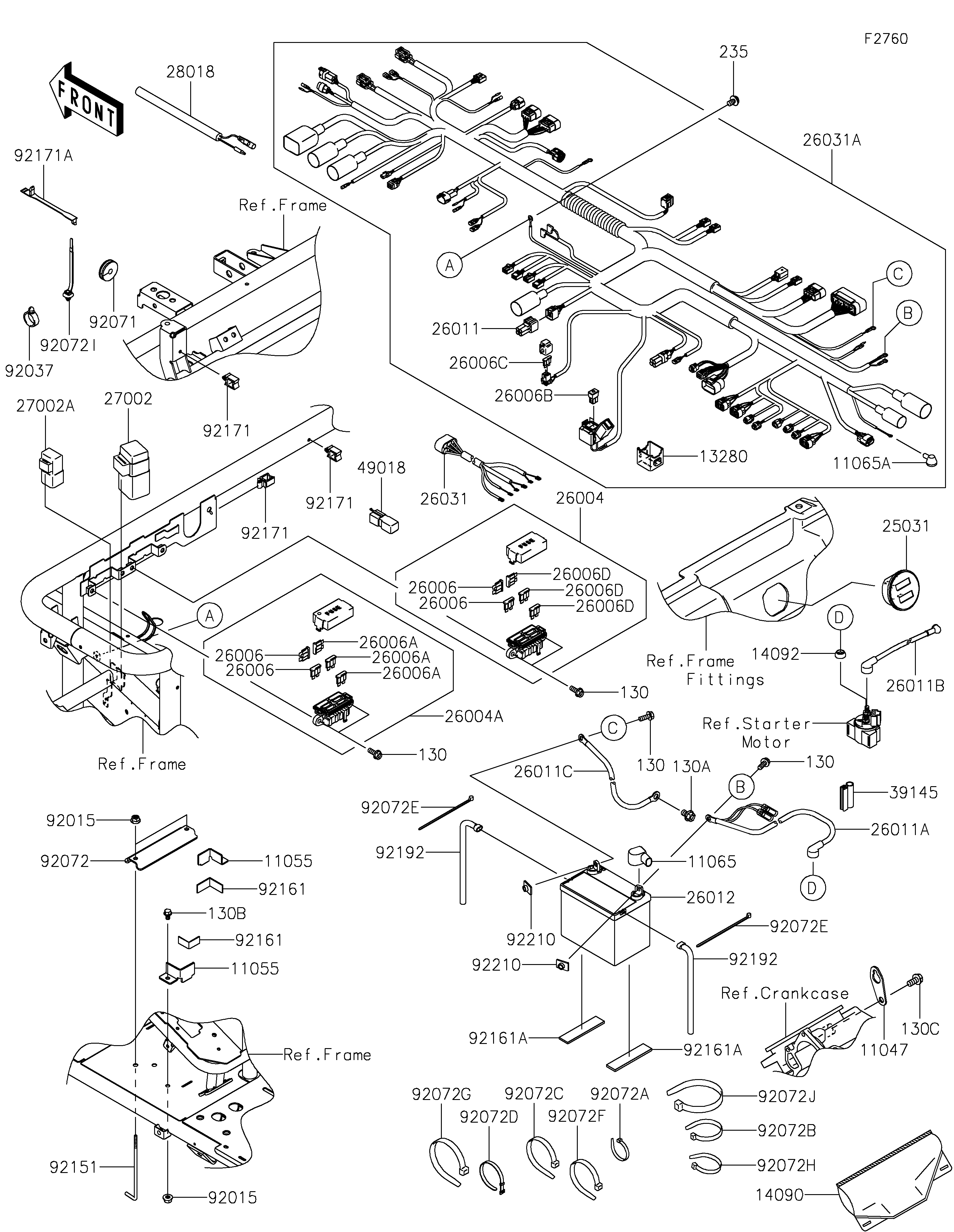

2021 MULE 4000 TRANS™ - Chassis Electrical Equipment
11047
11047
11055
11055
11055
11055
11065
11065
11065A
11065A
13280
13280
14090
14090
14092
14092
25031
25031
26004
26004
26004A
26004A
26006
26006
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006A
26006A
26006B
26006B
26006C
26006C
26006D
26006D
26006D
26006D
26006D
26006D
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26012
26012
26031
26031
26031A
26031A
27002
27002
27002A
27002A
28018
28018
39145
39145
49018
49018
92015
92015
92015
92015
92037
92037
92071
92071
92072
92072
92072A
92072A
92072B
92072B
92072C
92072C
92072D
92072D
92072E
92072E
92072E
92072E
92072F
92072F
92072G
92072G
92072H
92072H
92072I
92072I
92072J
92072J
92151
92151
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92171
92171
92171
92171
92171
92171
92171A
92171A
92192
92192
92192
92192
92210
92210
92210
92210
130
130
130
130
130
130
130
130
130A
130A
130B
130B
130C
130C
235
235
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,F.BLACK | 11047 | 11047-2056-9H | 1 | ||
BRACKET | 11055 | 11055-0433 | 2 | ||
CAP,BATTERY TERMINAL | 11065 | 11065-0285 | 1 | ||
CAP,NEUTRAL SW. | 11065A | 11065-0726 | 1 | ||
HOLDER | 13280 | 13280-7508 | 1 | ||
COVER,COUPLER | 14090 | 14090-1611 | 1 | ||
COVER,MAGNETIC SW. | 14092 | 14092-0851 | 1 | ||
METER-ASSY | 25031 | 25031-0829 | 1 | ||
FUSE-ASSY | 26004 | 26004-0018 | 1 | ||
FUSE-ASSY | 26004A | 26004-0019 | 1 | ||
FUSE,BLADE,30A,GREEN | 26006 | 26006-0004 | 4 | ||
FUSE,BLADE,10A,RED | 26006A | 26006-0005 | 3 | ||
FUSE,SLOW BLOW,BT,40A,GREEN | 26006B | 26006-0014 | 2 | ||
FUSE,7.5A | 26006C | 26006-0015 | 2 | ||
FUSE,BLADE,20A,YELLOW | 26006D | 26006-1051 | 3 | ||
WIRE-LEAD | 26011 | 26011-0037 | 1 | ||
WIRE-LEAD,BATTERY(+) | 26011A | 26011-0813 | 1 | ||
WIRE-LEAD,STARTER | 26011B | 26011-0815 | 1 | ||
WIRE-LEAD,BATTERY(-) | 26011C | 26011-7516 | 1 | ||
BATTERY,12V 14AH | 26012 | 26012-0107 | 1 | ||
HARNESS | 26031 | 26031-2080 | 1 | ||
HARNESS,MAIN | 26031A | 26031-2459 | 1 | ||
RELAY-ASSY | 27002 | 27002-1068 | 1 | ||
RELAY-ASSY | 27002A | 27002-1088 | 1 | ||
RESISTOR | 28018 | 28018-0553 | 1 | ||
TRIM-SEAL | 39145 | 39145-0046 | 1 | ||
DIODE | 49018 | 49018-0005 | 1 | ||
NUT,FLANGED,8MM | 92015 | 92015-1406 | 4 | ||
CLAMP,HOSE | 92037 | 92037-1827 | 2 | ||
GROMMET | 92071 | 92071-1136 | 1 | ||
BAND | 92072 | 92072-0112 | 1 | ||
BAND,L=123 | 92072A | 92072-030 | 3 | ||
BAND,L=149 | 92072B | 92072-031 | 2 | ||
BAND,L=218 | 92072C | 92072-032 | 2 | ||
BAND,L=186 | 92072D | 92072-056 | 1 | ||
BAND,92X2.4 | 92072E | 92072-0791 | 2 | ||
BAND,L=202 | 92072F | 92072-1195 | 1 | ||
BAND,L=250 | 92072G | 92072-1237 | 2 | ||
BAND,L=188 | 92072H | 92072-1239 | 15 | ||
BAND,OS170-FT7(BLACK) | 92072I | 92072-1414 | 2 | ||
BAND,L=368.3 | 92072J | 92072-3872 | 4 | ||
BOLT,BATTERY | 92151 | 92151-1897 | 2 | ||
DAMPER | 92161 | 92161-0580 | 2 | ||
DAMPER,31.1X130X5 | 92161A | 92161-0936 | 2 | ||
CLAMP | 92171 | 92171-0290 | 3 | ||
CLAMP | 92171A | 92171-1365 | 1 | ||
TUBE,BREATHER,7X10X210,WHT MK | 92192 | 92192-1680 | 2 | ||
NUT,PLATE,6MM | 92210 | 92210-1352 | 2 | ||
BOLT-FLANGED,6X16 | 130 | 130BA0616 | 6 | ||
BOLT-FLANGED,8X12 | 130A | 130BA0812 | 1 | ||
BOLT-FLANGED,8X14 | 130B | 130BA0814 | 2 | ||
BOLT-FLANGED,8X16 | 130C | 130BA0816 | 1 | ||
SCREW-PAN-WP-CROS,6X10 | 235 | 235AA0610 | 1 |
BRACKET,F.BLACK | |
REF # | 11047 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,BATTERY TERMINAL | |
REF # | 11065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,NEUTRAL SW. | |
REF # | 11065A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER | |
REF # | 13280 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,COUPLER | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,MAGNETIC SW. | |
REF # | 14092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
METER-ASSY | |
REF # | 25031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FUSE-ASSY | |
REF # | 26004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FUSE-ASSY | |
REF # | 26004A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FUSE,BLADE,30A,GREEN | |
REF # | 26006 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
FUSE,BLADE,10A,RED | |
REF # | 26006A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
FUSE,SLOW BLOW,BT,40A,GREEN | |
REF # | 26006B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FUSE,7.5A | |
REF # | 26006C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FUSE,BLADE,20A,YELLOW | |
REF # | 26006D |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
WIRE-LEAD | |
REF # | 26011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WIRE-LEAD,BATTERY(+) | |
REF # | 26011A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WIRE-LEAD,STARTER | |
REF # | 26011B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WIRE-LEAD,BATTERY(-) | |
REF # | 26011C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BATTERY,12V 14AH | |
REF # | 26012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HARNESS | |
REF # | 26031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HARNESS,MAIN | |
REF # | 26031A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELAY-ASSY | |
REF # | 27002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELAY-ASSY | |
REF # | 27002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RESISTOR | |
REF # | 28018 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM-SEAL | |
REF # | 39145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIODE | |
REF # | 49018 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,HOSE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=123 | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BAND,L=149 | |
REF # | 92072B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,L=218 | |
REF # | 92072C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,L=186 | |
REF # | 92072D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,92X2.4 | |
REF # | 92072E |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,L=202 | |
REF # | 92072F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=250 | |
REF # | 92072G |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,L=188 | |
REF # | 92072H |
---|---|
PART NUMBER | |
QUANTITY | 15 |
DESTINATION | |
REMARKS |
BAND,OS170-FT7(BLACK) | |
REF # | 92072I |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,L=368.3 | |
REF # | 92072J |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,BATTERY | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,31.1X130X5 | |
REF # | 92161A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,BREATHER,7X10X210,WHT MK | |
REF # | 92192 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,PLATE,6MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X16 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X12 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X14 | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X16 | |
REF # | 130C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-WP-CROS,6X10 | |
REF # | 235 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
