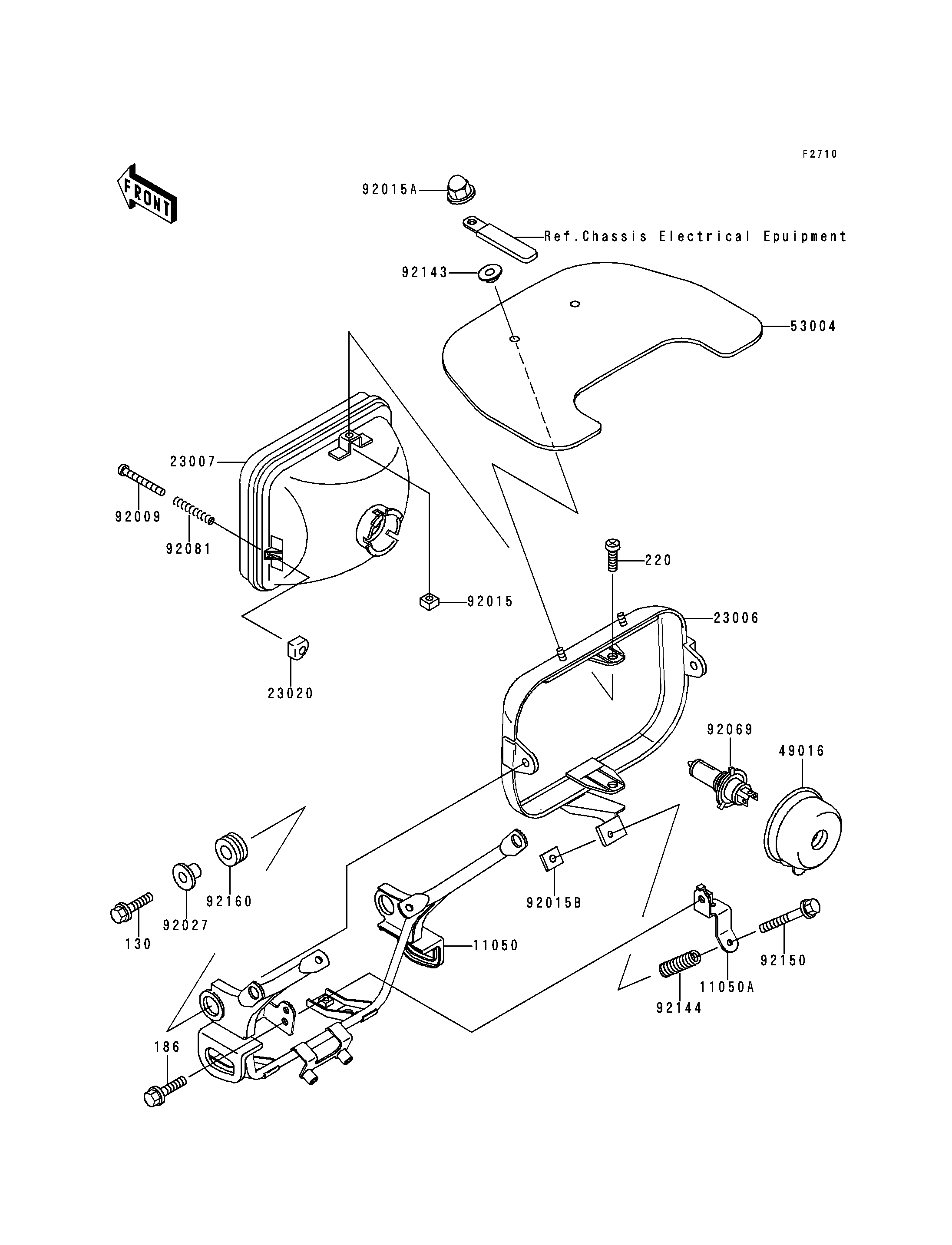

1999 ZRX1100 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
186
220
11050
11050A
23006
23007
23020
49016
53004
92009
92015
92015A
92015B
92027
92069
92081
92143
92144
92150
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X25,BLACK 130 130J0825 2
BOLT-UPSET-WP 186 186J0612 1
SCREW-PAN-CROS,5X12 220 220D0512 2
BRACKET,HEAD LAMP 11050 11050-1087 1
BRACKET,HEAD LAMP BODY 11050A 11050-1119 1
RIM-LAMP 23006 23006-1068 1
LENS-COMP,HEAD LAMP 23007 23007-1321 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 1
COVER-SEAL,HEAD LAMP 49016 49016-1046 1
MAT,HEAD LAMP 53004 53004-1117 1
SCREW,4MM,FOCUS ADJUST 92009 92009-1047 1
NUT,5MM 92015 92015-1157 2
NUT,CAP,6MM,BLACK 92015A 92015-1170 2
NUT,5MM,FOCUS ADJUST 92015B 92015-1799 1
COLLAR,L=14 92027 92027-1134 2
BULB,12V 60/55W,H4 92069 92069-1002 1
SPRING,HEAD LAMP LENS 92081 92081-1103 1
COLLAR 92143 92143-1087 2
SPRING 92144 92144-1417 1
BOLT,ADJUST,5X45 92150 92150-1590 1
DAMPER 92160 92160-1007 2
