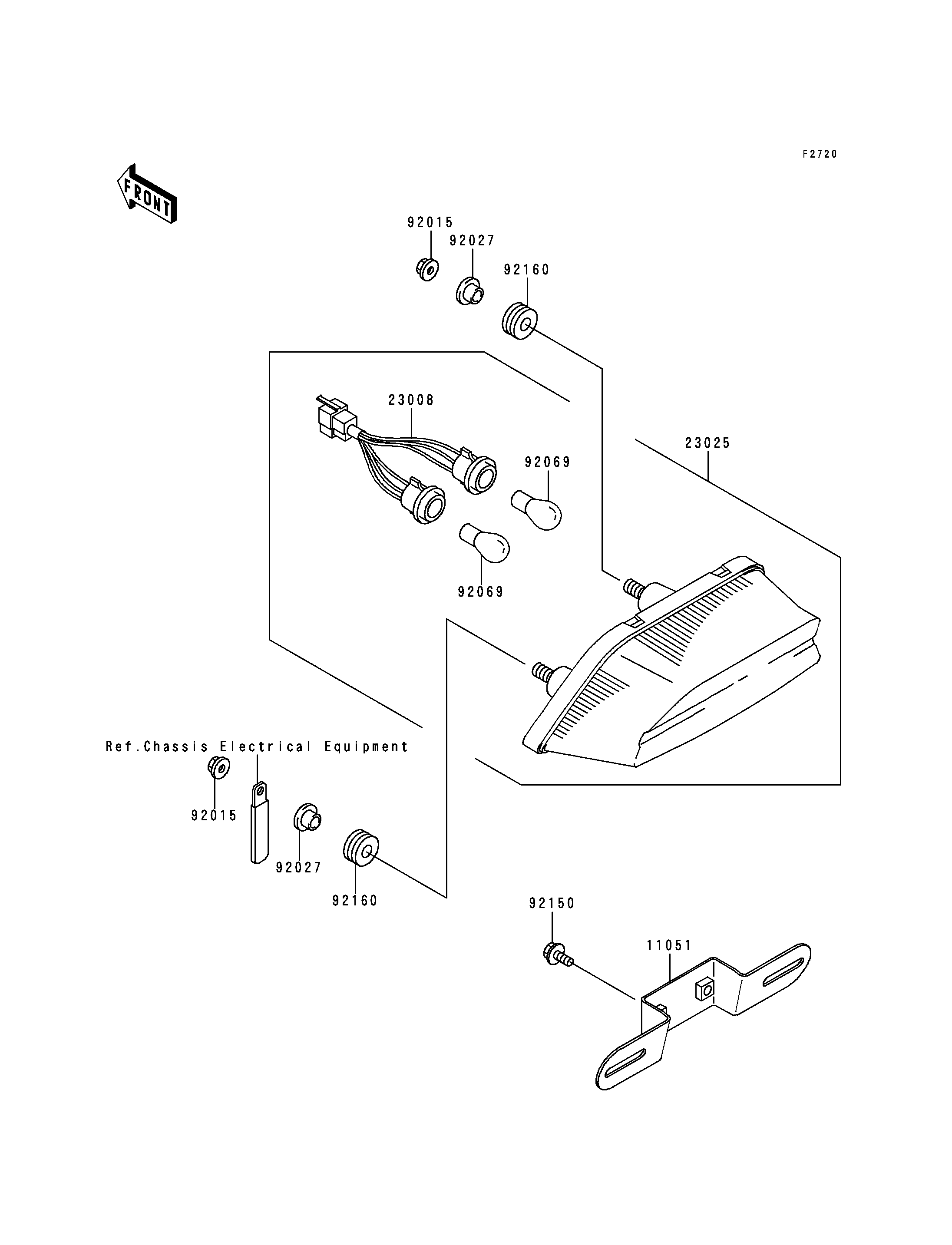

11051
23008
23025
92015
92015
92027
92027
92069
92069
92150
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LICENSE 11051 11051-1128 1
SOCKET-ASSY,TAIL LAMP 23008 23008-1413 1
LAMP-TAIL 23025 23025-1282 1
NUT,FLANGED,6MM 92015 92015-1367 3
COLLAR 92027 92027-1183 3
BULB,12V 27/8W 92069 92069-059 2
BOLT,6X16 92150 92150-1909 2
DAMPER 92160 92160-1162 3
