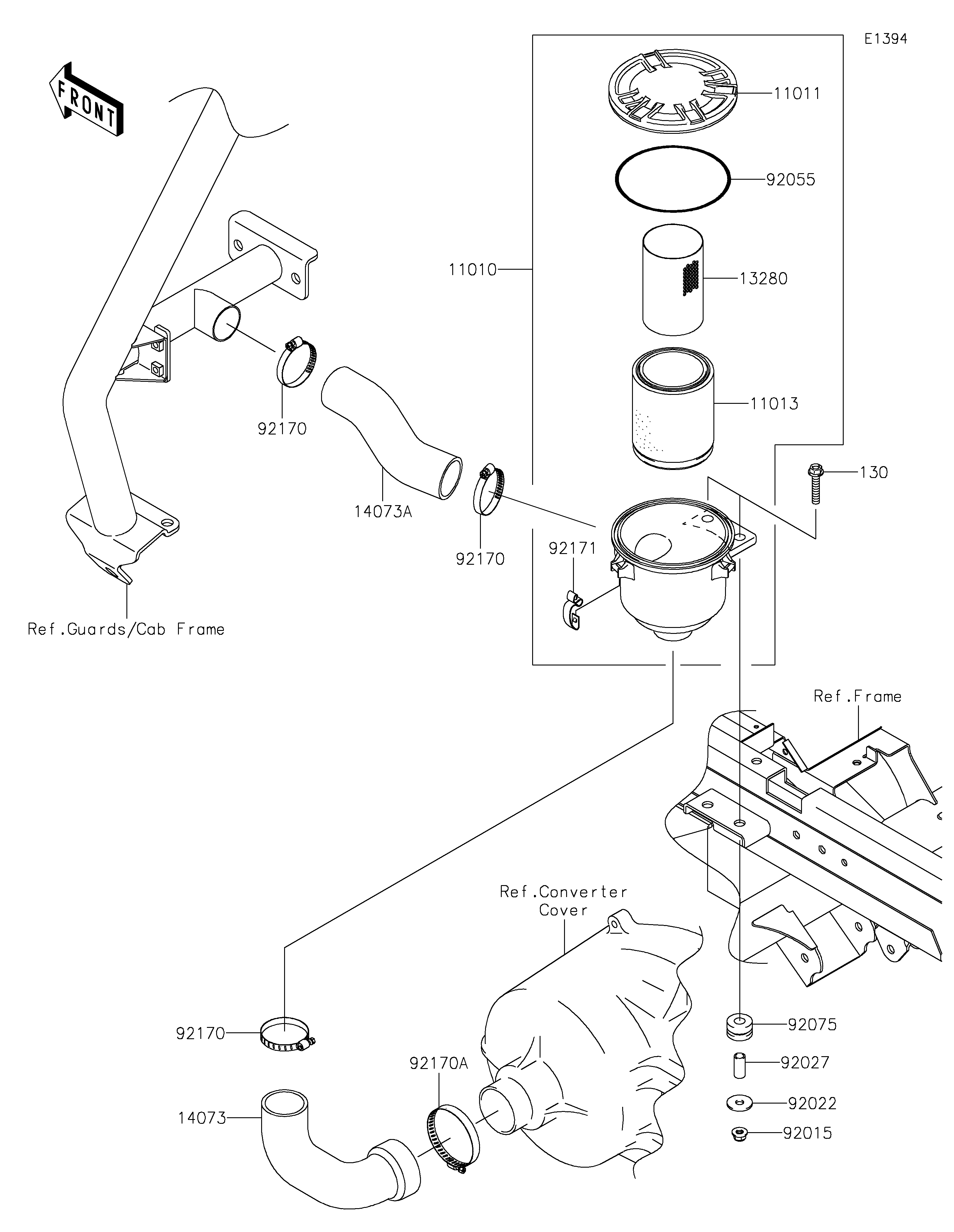

2021 MULE™ 4010 TRANS4x4® FE - Air Cleaner-Belt Converter
11010
11011
11013
13280
14073
14073A
92015
92022
92027
92055
92075
92170
92170
92170
92170A
92171
130
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FILTER-ASSY-AIR | 11010 | 11010-0172 | 1 | ||
CASE-AIR FILTER,CAP | 11011 | 11011-0135 | 1 | ||
ELEMENT-AIR FILTER | 11013 | 11013-0037 | 1 | ||
HOLDER | 13280 | 13280-0312 | 1 | ||
DUCT,AIR FILTER-CVT | 14073 | 14073-0198 | 1 | ||
DUCT,BAR-AIR FILTER | 14073A | 14073-0237 | 1 | ||
NUT,8MM | 92015 | 92015-1432 | 2 | ||
WASHER,9X28X2.3 | 92022 | 92022-1632 | 2 | ||
COLLAR | 92027 | 92027-4012 | 2 | ||
RING-O,122X4 | 92055 | 92055-0167 | 1 | ||
DAMPER | 92075 | 92075-1736 | 2 | ||
CLAMP | 92170 | 92170-1674 | 3 | ||
CLAMP | 92170A | 92170-1764 | 1 | ||
CLAMP | 92171 | 92171-0225 | 3 | ||
BOLT-FLANGED,8X40 | 130 | 130BA0840 | 2 |
FILTER-ASSY-AIR | |
REF # | 11010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-AIR FILTER,CAP | |
REF # | 11011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ELEMENT-AIR FILTER | |
REF # | 11013 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER | |
REF # | 13280 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,AIR FILTER-CVT | |
REF # | 14073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,BAR-AIR FILTER | |
REF # | 14073A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,9X28X2.3 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,122X4 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X40 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
