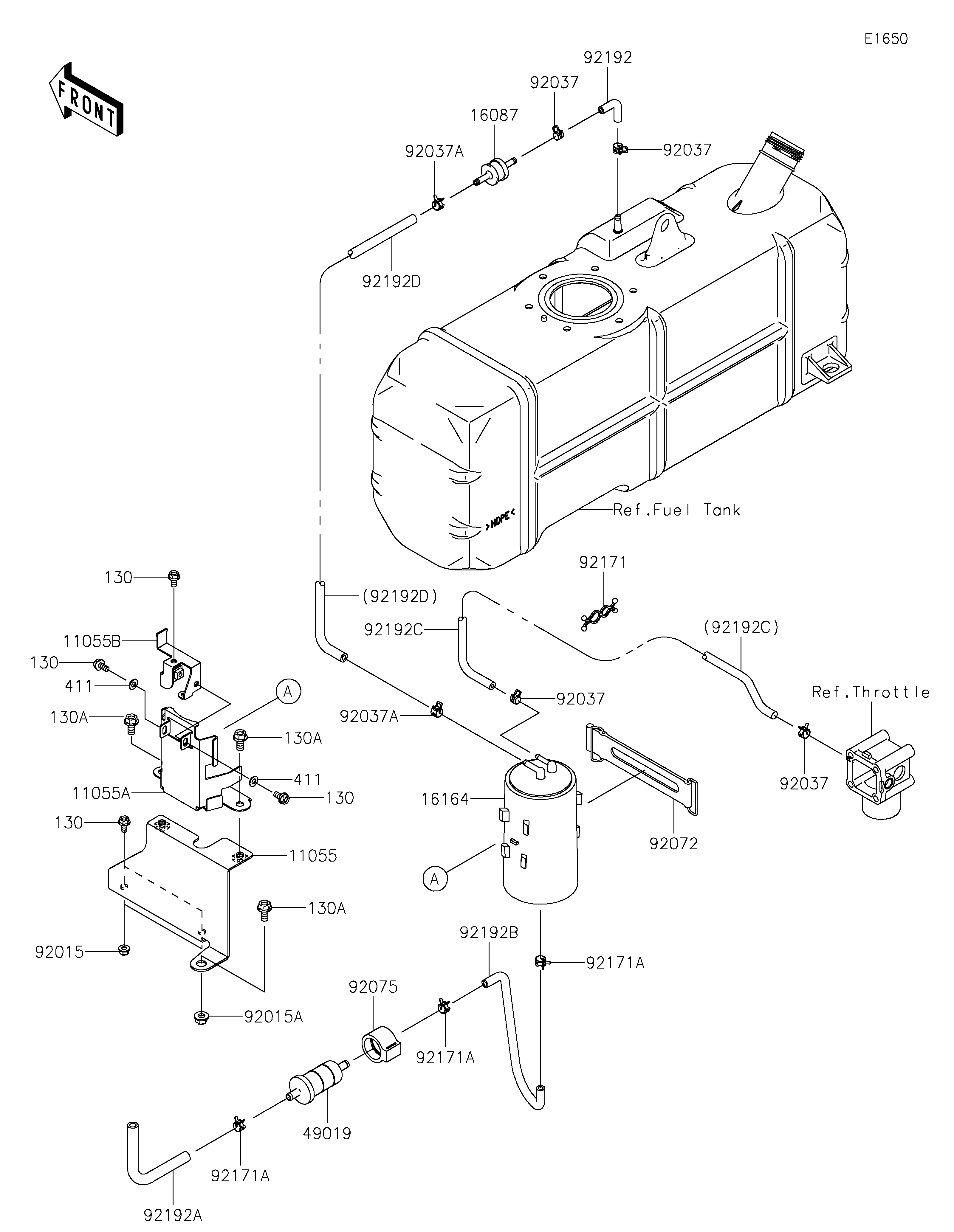

2021 MULE™ 4010 TRANS4x4® FE - Fuel Evaporative System
11055
11055A
11055B
16087
16164
49019
92015
92015A
92037
92037
92037
92037
92037A
92037A
92072
92075
92171
92171A
92171A
92171A
92192
92192A
92192B
92192C
92192D
130
130
130
130
130A
130A
130A
411
411
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,LWR | 11055 | 11055-0262 | 1 | ||
BRACKET,UPP | 11055A | 11055-0263 | 1 | ||
BRACKET,UPP | 11055B | 11055-1126 | 1 | ||
VALVE-CHECK | 16087 | 16087-0008 | 1 | ||
CANISTER | 16164 | 16164-0018 | 1 | ||
FILTER-FUEL | 49019 | 49019-0032 | 1 | ||
NUT,LOCK,FLANGED,6MM | 92015 | 92015-1339 | 2 | ||
NUT,8MM | 92015A | 92015-1432 | 1 | ||
CLAMP,TUBE | 92037 | 92037-1461 | 4 | ||
CLAMP,TUBE | 92037A | 92037-1505 | 2 | ||
BAND,L=168 | 92072 | 92072-1306 | 1 | ||
DAMPER,FUEL FILTER | 92075 | 92075-1853 | 1 | ||
CLAMP | 92171 | 92171-0476 | 1 | ||
CLAMP | 92171A | 92171-0515 | 3 | ||
TUBE,FUEL TANK-CHECK VALVE | 92192 | 92192-0067 | 1 | ||
TUBE,FILTER-AIR | 92192A | 92192-0609 | 1 | ||
TUBE,CANISTER-FUEL FILTER | 92192B | 92192-0620 | 1 | ||
TUBE,4.5X9.5X2000 | 92192C | 92192-0908 | 1 | ||
TUBE | 92192D | 92192-1160 | 1 | ||
BOLT-FLANGED,6X12 | 130 | 130BA0612 | 5 | ||
BOLT-FLANGED,8X16 | 130A | 130BA0816 | 3 | ||
WASHER-PLAIN,6MM | 411 | 411AA0600 | 2 |
