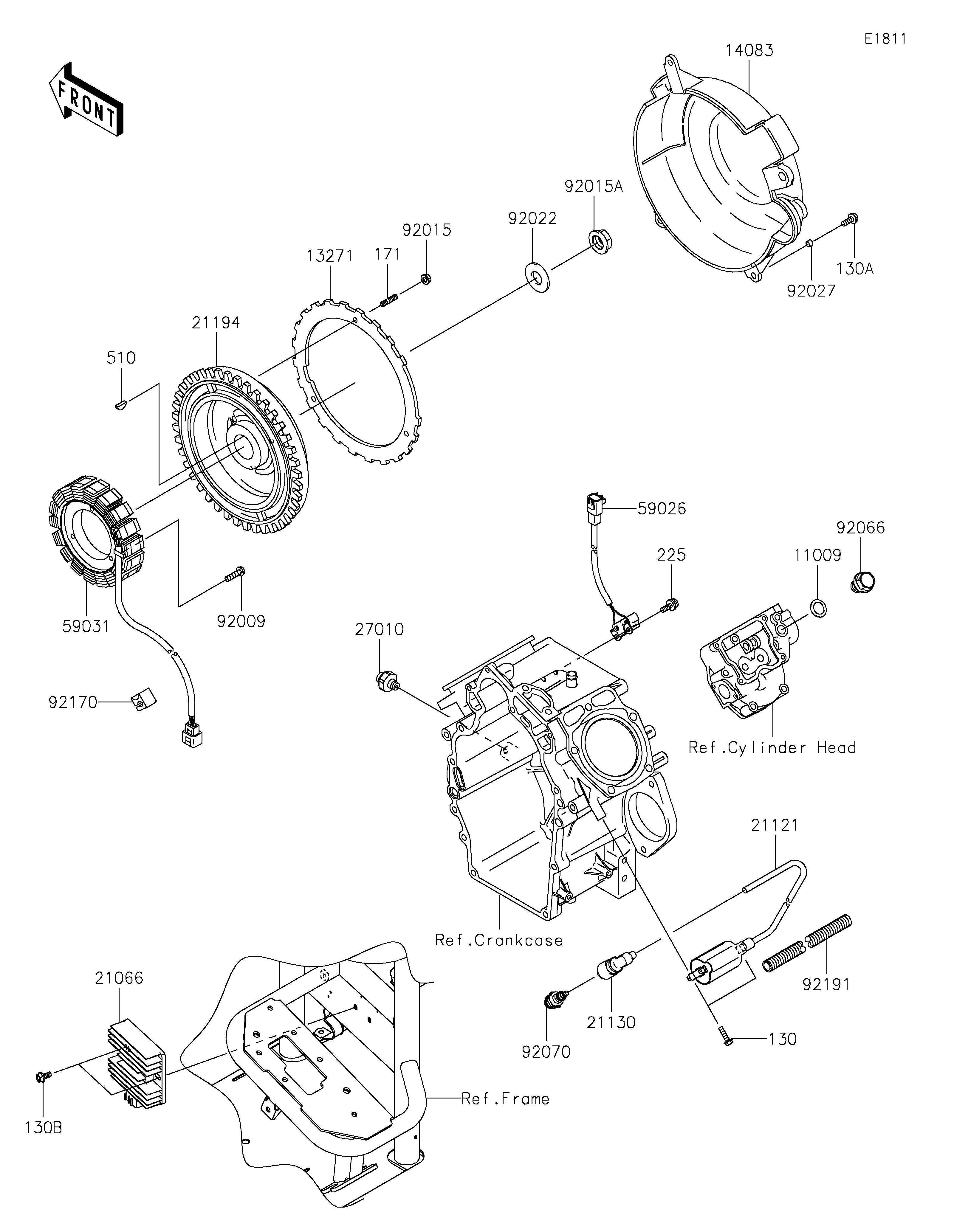

2021 MULE™ 4010 TRANS4x4® FE - Generator/Ignition Coil
11009
13271
14083
21066
21121
21130
21194
27010
59026
59031
92009
92015
92015A
92022
92027
92066
92070
92170
92191
130
130A
130B
171
225
510
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,16X24X1 | 11009 | 11009-2566 | 1 | ||
PLATE | 13271 | 13271-2269 | 1 | ||
COVER-FLYWHEEL | 14083 | 14083-2052 | 1 | ||
REGULATOR-VOLTAGE | 21066 | 21066-0717 | 1 | ||
COIL-IGNITION | 21121 | 21121-2092 | 2 | ||
CAP-SPARK PLUG | 21130 | 21130-2060 | 2 | ||
FLYWHEEL-COMP | 21194 | 21194-2352 | 1 | ||
SWITCH,OIL PRESSURE | 27010 | 27010-1313 | 1 | ||
COIL-PULSING | 59026 | 59026-0559 | 1 | ||
COIL-CHARGING | 59031 | 59031-2136 | 1 | ||
SCREW,6X25 | 92009 | 92009-2273 | 3 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 3 | ||
NUT | 92015A | 92015-2167 | 1 | ||
WASHER | 92022 | 92022-2229 | 1 | ||
COLLAR,6.2X7.8X5 | 92027 | 92027-2096 | 3 | ||
PLUG,DRAIN | 92066 | 92066-2099 | 1 | ||
PLUG-SPARK,BPR2ES(NGK),SOLID | 92070 | 92070-2110 | 2 | ||
CLAMP | 92170 | 92170-2056 | 1 | ||
TUBE | 92191 | 92191-2124 | 1 | ||
BOLT-FLANGED,5X18 | 130 | 130BA0518 | 4 | ||
BOLT-FLANGED,6X16 | 130A | 130BA0616 | 3 | ||
BOLT-FLANGED,6X14 | 130B | 130BB0614 | 2 | ||
BOLT-STUD,6X18 | 171 | 171BA0618 | 3 | ||
SCREW-PAN-WSP-CROS,4X14 | 225 | 225AA0414 | 2 | ||
KEY-WOODRUFF | 510 | 510A5100 | 1 |
