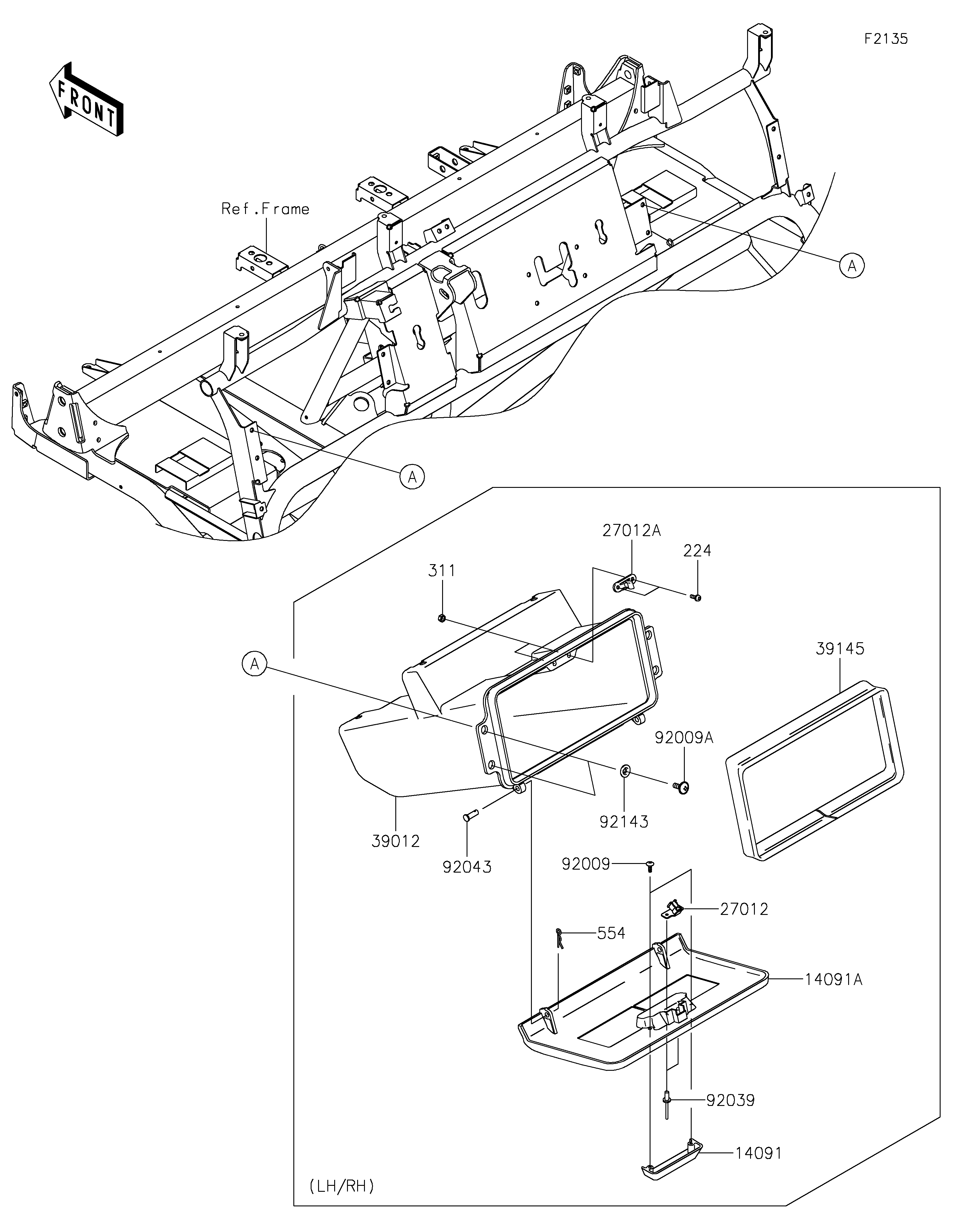

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,STORAGE GRIP,F.BLACK 14091 14091-1659-6Z 2
COVER,CONTROL PANEL,F.BLACK 14091A 14091-1660-6Z 2
HOOK 27012 27012-1607 2
HOOK 27012A 27012-1612 2
CASE-STORAGE,F.BLACK 39012 39012-1061-6Z 2
TRIM-SEAL,L=774 39145 39145-1130 2
SCREW,TAPPING,4X12 92009 92009-1444 4
SCREW,6X16 92009A 92009-1621 8
RIVET 92039 92039-1041 4
PIN,6X14.5 92043 92043-125 4
COLLAR 92143 92143-1087 8
SCREW-PAN-WP-CROS,4X12 224 224AB0412 4
NUT-HEX,4MM 311 311AA0400 4
PIN-SNAP,1.2X21.2 554 554DA0600 4
