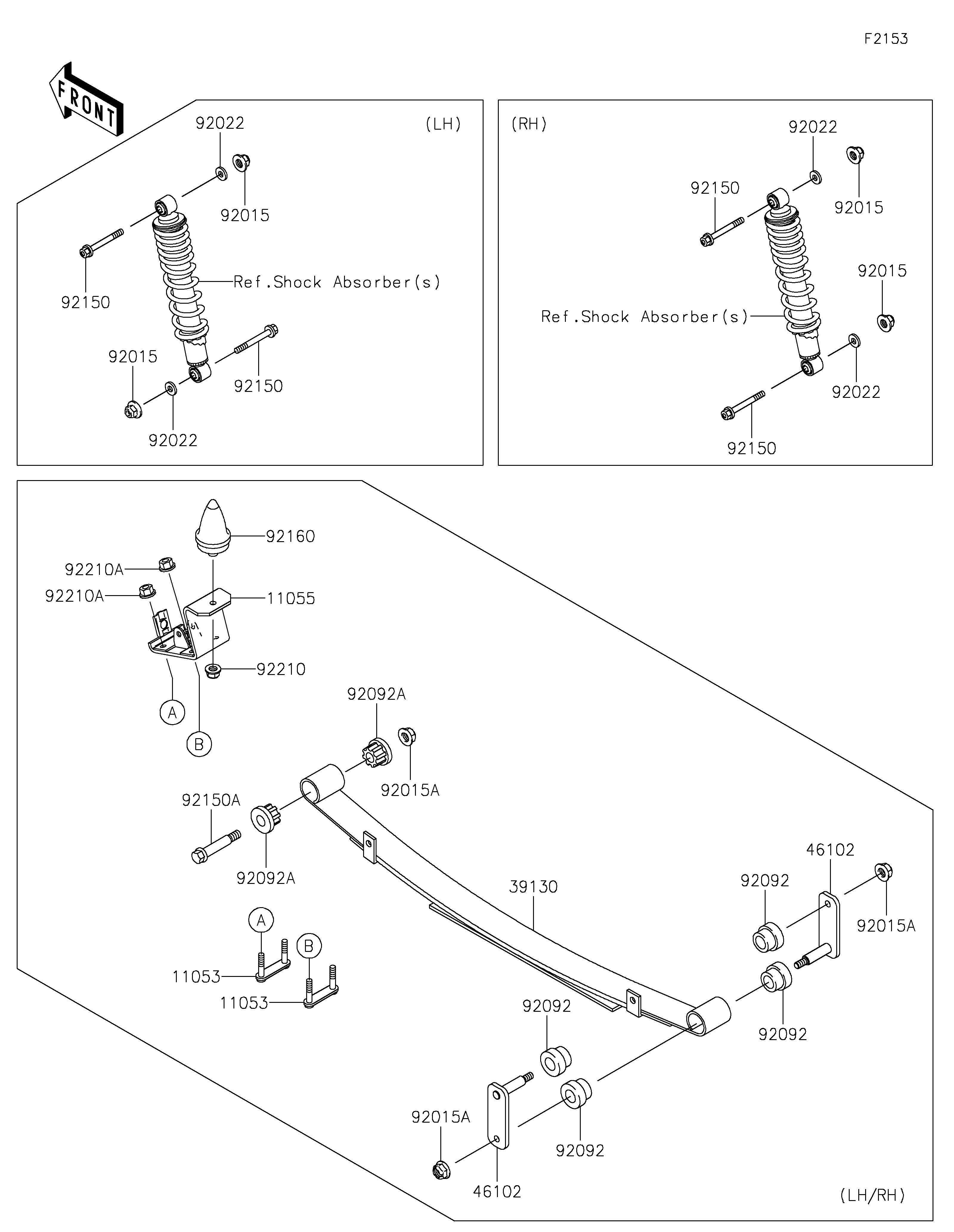

2021 MULE™ 4010 TRANS4x4® FE - Rear Suspension
11053
11053
11055
39130
46102
46102
92015
92015
92015
92015
92015A
92015A
92015A
92022
92022
92022
92022
92092
92092
92092
92092
92092A
92092A
92150
92150
92150
92150
92150A
92160
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LEAF SPRING | 11053 | 11053-7564 | 4 | ||
| BRACKET,LEAF SPRING | 11055 | 11055-7504 | 2 | ||
| SPRING-LEAF | 39130 | 39130-1066 | 2 | ||
| ROD,LEAF SPRING,RR | 46102 | 46102-1338 | 4 | ||
| NUT,LOCK,10MM | 92015 | 92015-1597 | 4 | ||
| NUT,12MM | 92015A | 92015-1706 | 6 | ||
| WASHER,11.5X20.5X1.6 | 92022 | 92022-1768 | 4 | ||
| BUSHING-RUBBER | 92092 | 92092-1083 | 8 | ||
| BUSHING-RUBBER | 92092A | 92092-1084 | 4 | ||
| BOLT,FLANGED,10X57 | 92150 | 92150-1227 | 4 | ||
| BOLT,12MM | 92150A | 92150-1284 | 2 | ||
| DAMPER,BUMP STOPPER | 92160 | 92160-1136 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 2 | ||
| NUT,LOCK,10MM | 92210A | 92210-1204 | 8 |
