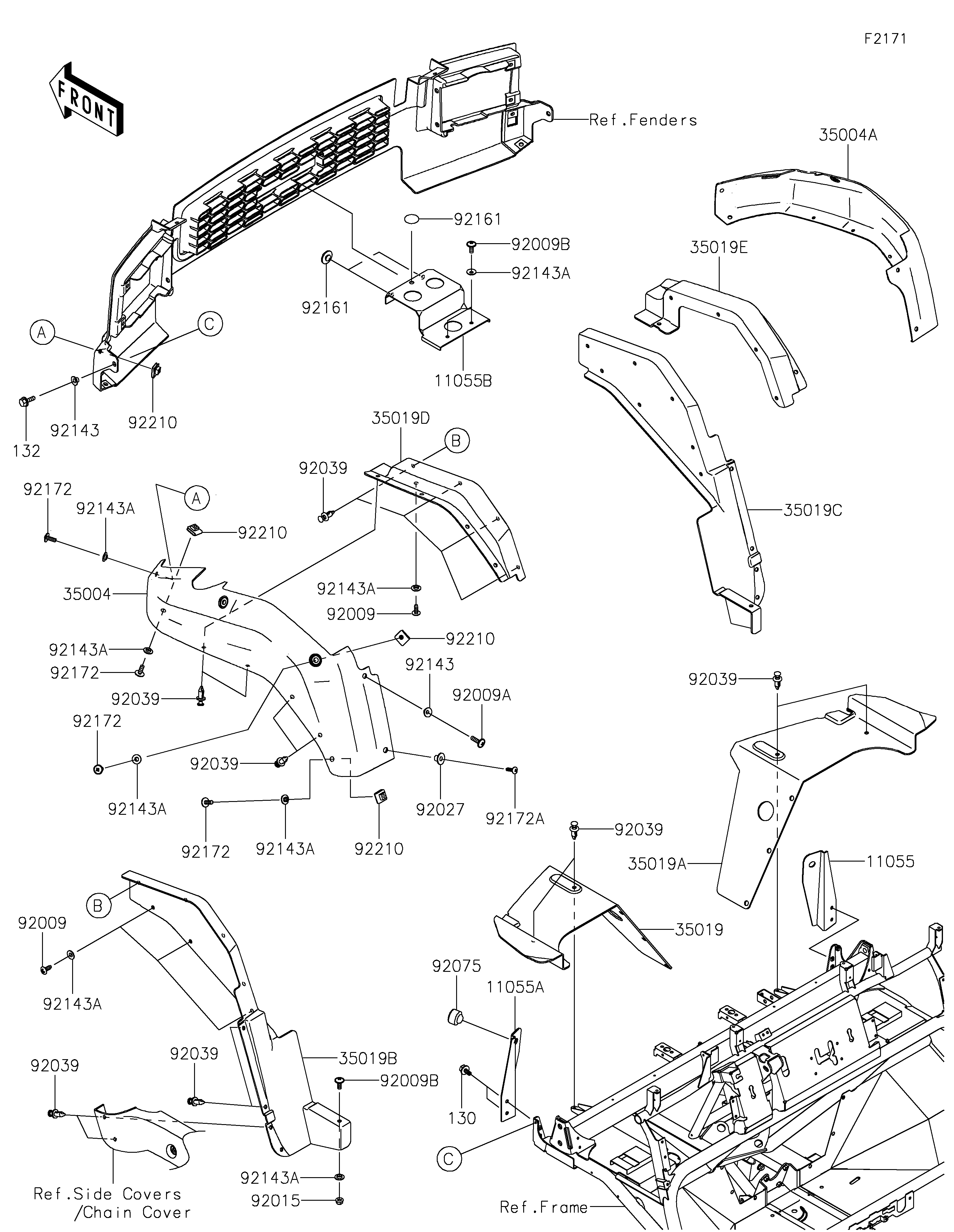

2021 MULE™ 4010 TRANS4x4® FE - Front Fender(s)
11055
11055A
11055B
35004
35004A
35019
35019A
35019B
35019C
35019D
35019E
92009
92009
92009A
92009B
92009B
92015
92027
92039
92039
92039
92039
92039
92039
92039
92075
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92161
92161
92172
92172
92172
92172
92172A
92210
92210
92210
92210
130
132
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET | 11055 | 11055-0917 | 1 | ||
BRACKET | 11055A | 11055-0918 | 1 | ||
BRACKET | 11055B | 11055-0954 | 1 | ||
FENDER-FRONT,SIDE,LH,F.BLACK | 35004 | 35004-0123-6Z | 1 | ||
FENDER-FRONT,SIDE,RH,F.BLACK | 35004A | 35004-0124-6Z | 1 | ||
FLAP,FR,LH | 35019 | 35019-0062 | 1 | ||
FLAP,FR,RH | 35019A | 35019-0063 | 1 | ||
FLAP,SIDE,RR,LH | 35019B | 35019-0064 | 1 | ||
FLAP,SIDE,RR,RH | 35019C | 35019-0065 | 1 | ||
FLAP,SIDE,MIDDLE,LH | 35019D | 35019-0068 | 1 | ||
FLAP,SIDE,MIDDLE,RH | 35019E | 35019-0069 | 1 | ||
SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 8 | ||
SCREW,6X22,BLACK | 92009A | 92009-1256 | 2 | ||
SCREW,6X16 | 92009B | 92009-1621 | 4 | ||
NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 2 | ||
COLLAR | 92027 | 92027-1767 | 2 | ||
RIVET | 92039 | 92039-0776 | 28 | ||
DAMPER | 92075 | 92075-015 | 2 | ||
COLLAR | 92143 | 92143-1057 | 4 | ||
COLLAR | 92143A | 92143-1087 | 22 | ||
DAMPER,RUBBER | 92161 | 92161-1200 | 3 | ||
SCREW,TAPPING,6X20 | 92172 | 92172-0488 | 10 | ||
SCREW | 92172A | 92172-1072 | 2 | ||
NUT,LEAF SPRING,6MM | 92210 | 92210-0624 | 10 | ||
BOLT-FLANGED,6X14 | 130 | 130BA0614 | 4 | ||
BOLT-FLANGED-SMALL,6X20 | 132 | 132BA0620 | 2 |
