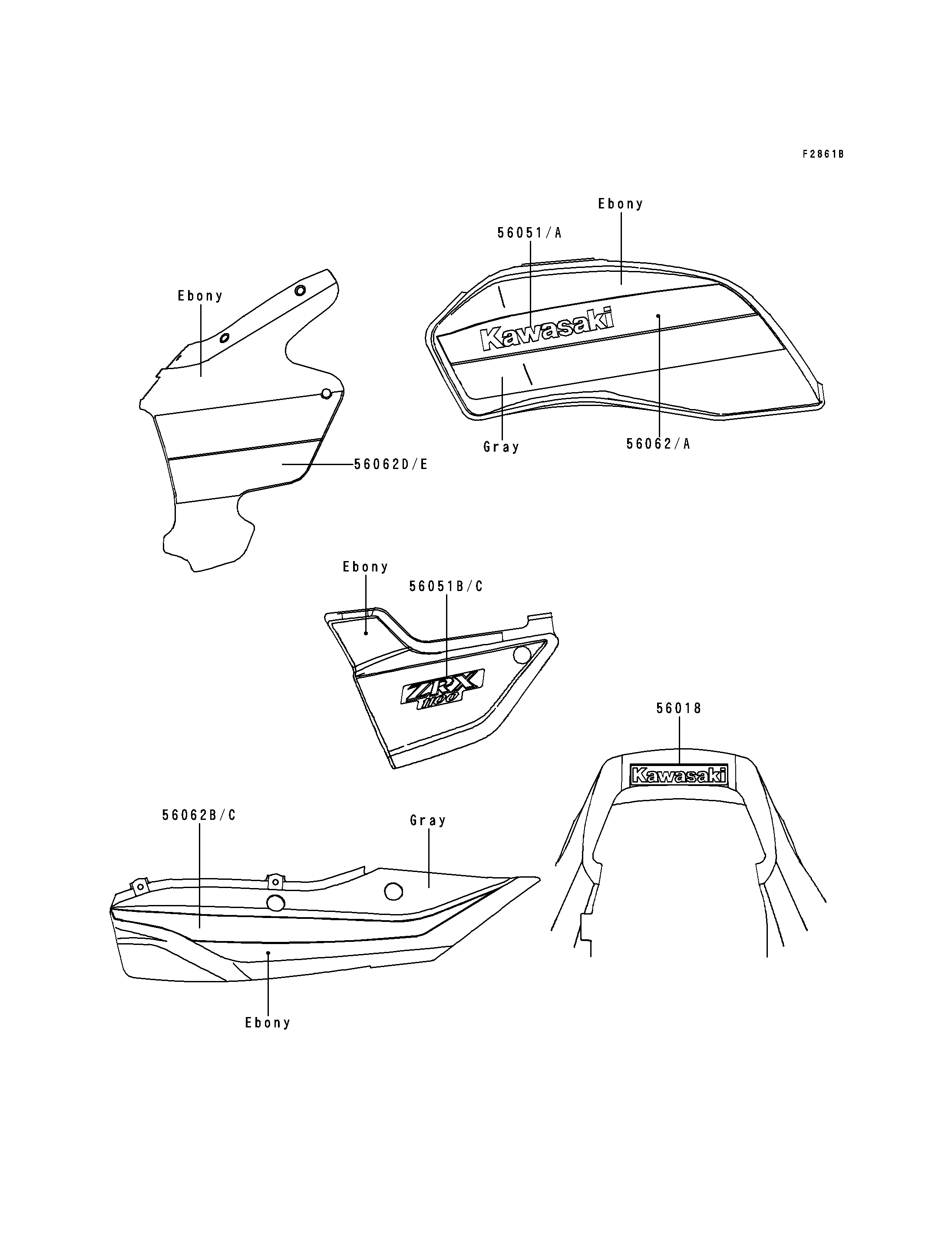

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SEAT COVER,KAWASAKI 56018 56018-1208 1
MARK,FUEL TANK,LH,KAWASAKI 56051 56051-1610 1
MARK,FUEL TANK,RH,KAWASAKI 56051A 56051-1611 1
MARK,SIDE COVER,LH,ZRX 1100 56051B 56051-1612 1
MARK,SIDE COVER,RH,ZRX 1100 56051C 56051-1613 1
PATTERN,FUEL TANK,LH 56062 56062-1734 1
PATTERN,FUEL TANK,RH 56062A 56062-1735 1
PATTERN,SEAT COVER,LH 56062B 56062-1736 1
PATTERN,SEAT COVER,RH 56062C 56062-1737 1
PATTERN,UPP COWLING,LH 56062D 56062-1738 1
PATTERN,UPP COWLING,RH 56062E 56062-1739 1
