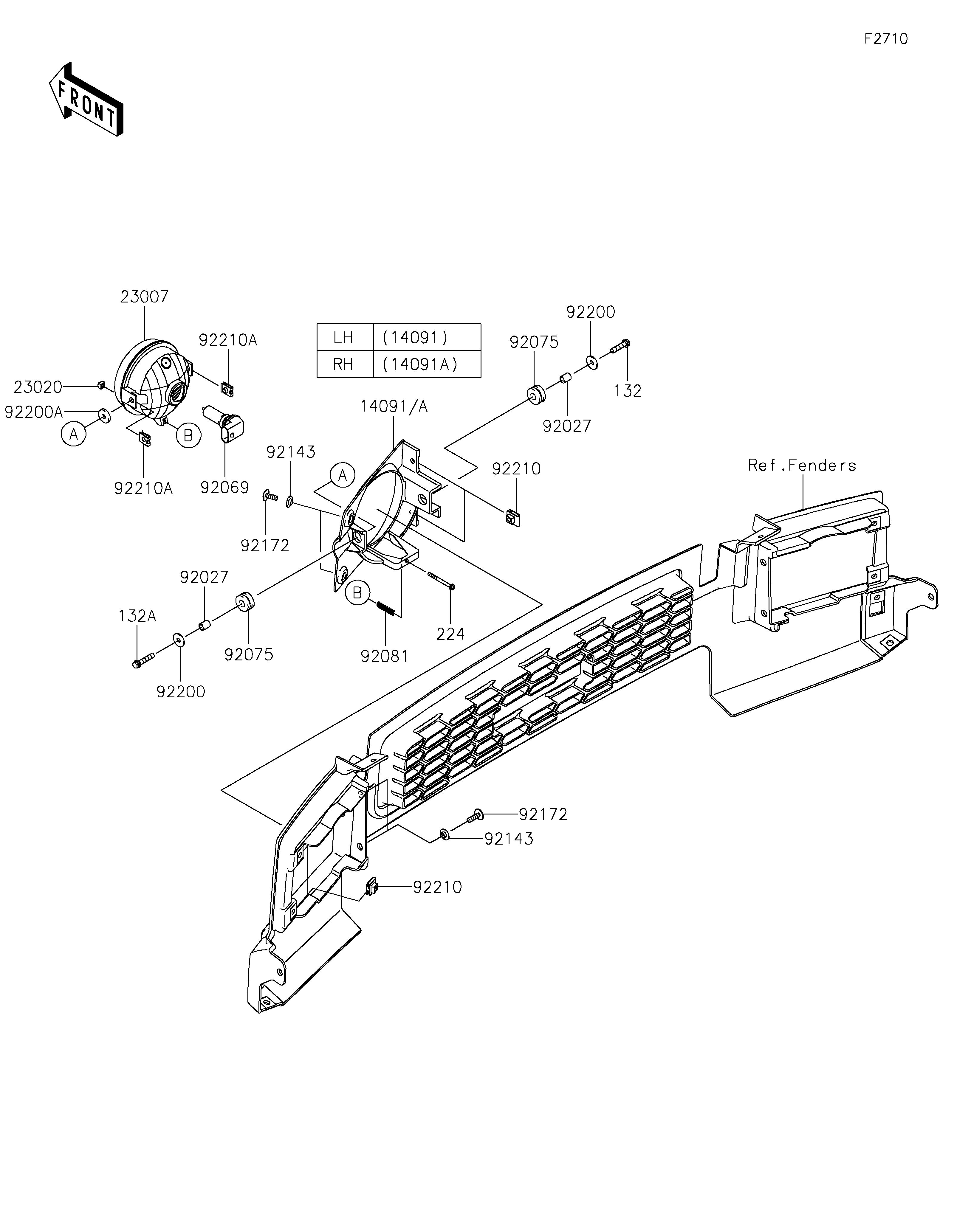

2021 MULE™ 4010 TRANS4x4® FE - Headlight(s)
14091
14091A
23007
23020
92027
92027
92069
92075
92075
92081
92143
92143
92172
92172
92200
92200
92200A
92210
92210
92210A
92210A
132
132A
224
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,HEAD LAMP,LH | 14091 | 14091-0827 | 1 | ||
COVER,HEAD LAMP,RH | 14091A | 14091-0828 | 1 | ||
LENS-COMP,HEAD LAMP | 23007 | 23007-0220 | 2 | ||
NUT,4MM,FOCUS ADJUST | 23020 | 23020-018 | 2 | ||
COLLAR,6.8X10X12 | 92027 | 92027-162 | 4 | ||
BULB,12V 35/35W | 92069 | 92069-0102 | 2 | ||
DAMPER,10X24X12 | 92075 | 92075-1690 | 4 | ||
SPRING,FOCUS ADJUST | 92081 | 92081-1896 | 2 | ||
COLLAR | 92143 | 92143-1087 | 8 | ||
SCREW,TAPPING,6X20 | 92172 | 92172-0488 | 8 | ||
WASHER,6.5X20X1.6 | 92200 | 92200-0283 | 4 | ||
WASHER,6.5X20X3.2 | 92200A | 92200-0359 | 2 | ||
NUT,LEAF SPRING,6MM | 92210 | 92210-0624 | 8 | ||
NUT | 92210A | 92210-1125 | 4 | ||
BOLT-FLANGED-SMALL,6X25 | 132 | 132BA0625 | 2 | ||
BOLT-FLANGED-SMALL,6X30 | 132A | 132BA0630 | 2 | ||
SCREW-PAN-WP-CROS,4X45 | 224 | 224AA0445 | 2 |
COVER,HEAD LAMP,LH | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,HEAD LAMP,RH | |
REF # | 14091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS-COMP,HEAD LAMP | |
REF # | 23007 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,4MM,FOCUS ADJUST | |
REF # | 23020 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,6.8X10X12 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BULB,12V 35/35W | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,10X24X12 | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING,FOCUS ADJUST | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,6X20 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
WASHER,6.5X20X1.6 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,6.5X20X3.2 | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LEAF SPRING,6MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X25 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X30 | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-WP-CROS,4X45 | |
REF # | 224 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
