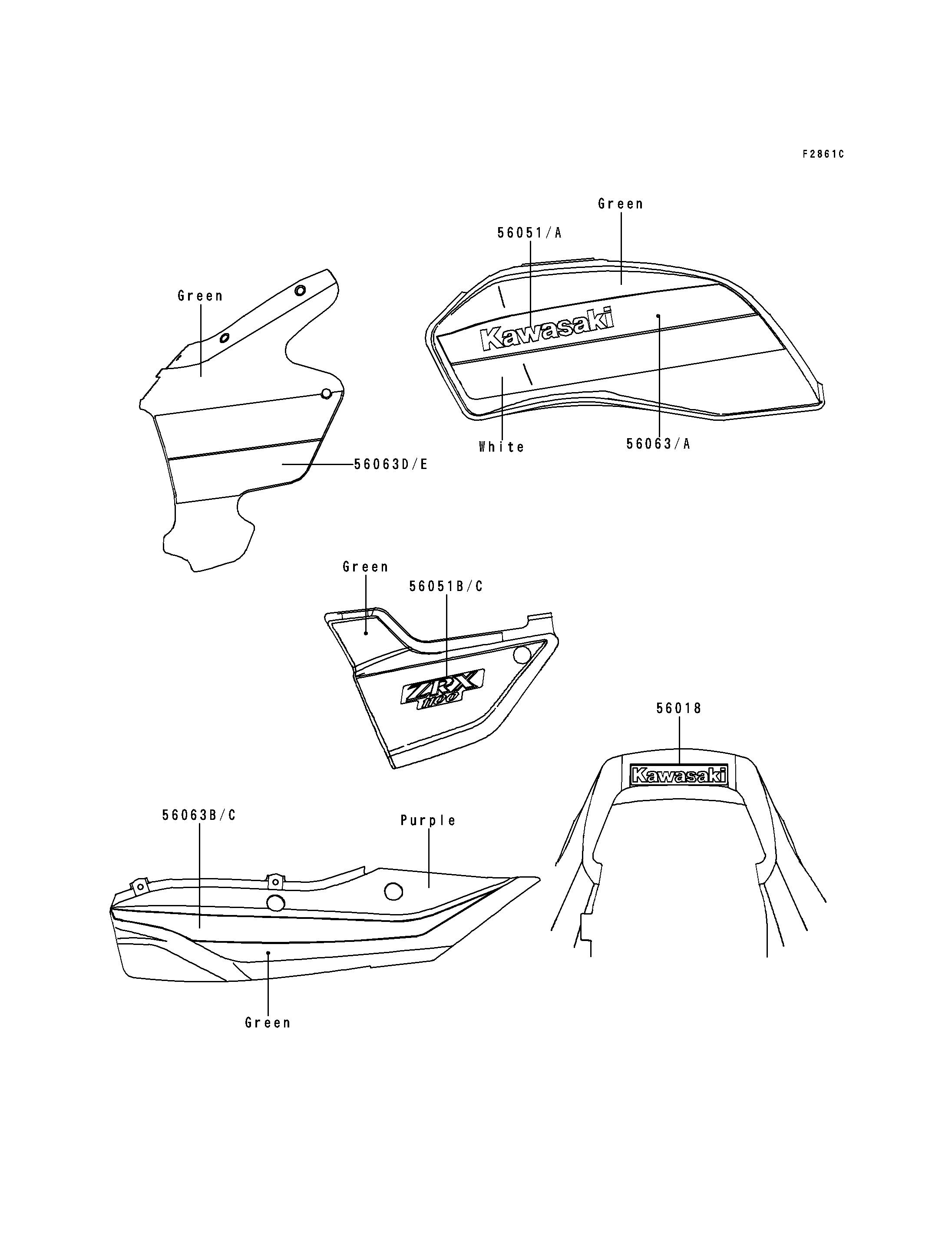

56018
56051
56051A
56051B
56051C
56063
56063A
56063B
56063C
56063D
56063E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SEAT COVER,KAWASAKI 56018 56018-1208 1
MARK,FUEL TANK,LH,KAWASAKI 56051 56051-1610 1
MARK,FUEL TANK,RH,KAWASAKI 56051A 56051-1611 1
MARK,SIDE COVER,LH,ZRX 1100 56051B 56051-1612 1
MARK,SIDE COVER,RH,ZRX 1100 56051C 56051-1613 1
PATTERN,FUEL TANK,LH 56063 56063-1221 1
PATTERN,FUEL TANK,RH 56063A 56063-1222 1
PATTERN,SEAT COVER,LH 56063B 56063-1223 1
PATTERN,SEAT COVER,RH 56063C 56063-1224 1
PATTERN,UPP COWLING,LH 56063D 56063-1225 1
PATTERN,UPP COWLING,RH 56063E 56063-1226 1
