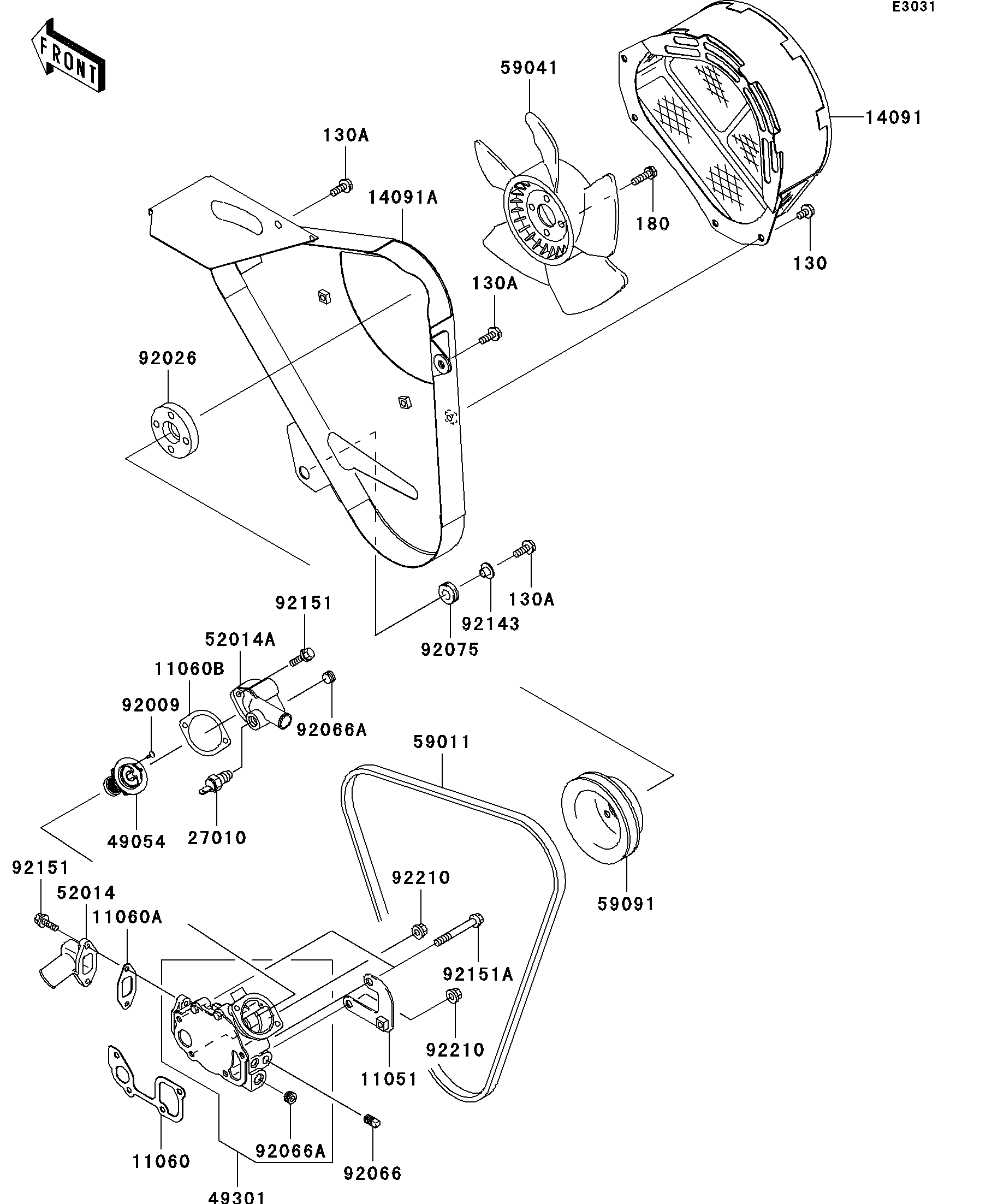

2008 Mule 3010 Diesel 4X4 - Water Pump
11051
11060
11060A
11060B
14091
14091A
27010
49054
49301
52014
52014A
59011
59041
59091
92009
92026
92066
92066A
92066A
92075
92143
92151
92151
92151A
92210
92210
130
130A
130A
130A
180
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,BELT COVER | 11051 | 11051-1567 | 1 | ||
GASKET,WATER PUMP | 11060 | 11060-1957 | 1 | ||
GASKET,ELBOW,INLET | 11060A | 11060-1958 | 1 | ||
GASKET,ELBOW,OUTLET | 11060B | 11060-1959 | 1 | ||
COVER,FAN | 14091 | 14091-0010 | 1 | ||
COVER,BELT | 14091A | 14091-0126 | 1 | ||
SWITCH,THERMOSTAT | 27010 | 27010-1414 | 1 | ||
THERMOSTAT | 49054 | 49054-1068 | 1 | ||
PUMP-ASSY-WATER | 49301 | 49301-0001 | 1 | ||
ELBOW,INLET | 52014 | 52014-1095 | 1 | ||
ELBOW,OUTLET | 52014A | 52014-1096 | 1 | ||
BELT | 59011 | 59011-1075 | 1 | ||
FAN | 59041 | 59041-1060 | 1 | ||
PULLEY,WATER PUMP | 59091 | 59091-1105 | 1 | ||
SCREW,TAPPING,2.6X8 | 92009 | 92009-1915 | 1 | ||
SPACER | 92026 | 92026-1571 | 1 | ||
PLUG,WATER PUMP | 92066 | 92066-1531 | 1 | ||
PLUG,ELBOW OUTLET | 92066A | 92066-1532 | 2 | ||
DAMPER | 92075 | 92075-161 | 1 | ||
COLLAR | 92143 | 92143-1057 | 1 | ||
BOLT,6X20 | 92151 | 92151-1667 | 4 | ||
BOLT,8X50 | 92151A | 92151-1690 | 2 | ||
NUT,8MM | 92210 | 92210-1216 | 2 | ||
BOLT-FLANGED,6X10 | 130 | 130J0610 | 4 | ||
BOLT-FLANGED,6X16 | 130A | 130J0616 | 3 | ||
BOLT-UPSET-WS,6X22 | 180 | 180J0622 | 4 |
BRACKET,BELT COVER | |
REF # | 11051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,WATER PUMP | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,ELBOW,INLET | |
REF # | 11060A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,ELBOW,OUTLET | |
REF # | 11060B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,FAN | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,BELT | |
REF # | 14091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,THERMOSTAT | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
THERMOSTAT | |
REF # | 49054 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PUMP-ASSY-WATER | |
REF # | 49301 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ELBOW,INLET | |
REF # | 52014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ELBOW,OUTLET | |
REF # | 52014A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BELT | |
REF # | 59011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FAN | |
REF # | 59041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PULLEY,WATER PUMP | |
REF # | 59091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,2.6X8 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,WATER PUMP | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,ELBOW OUTLET | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,8X50 | |
REF # | 92151A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X10 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X16 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-UPSET-WS,6X22 | |
REF # | 180 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
