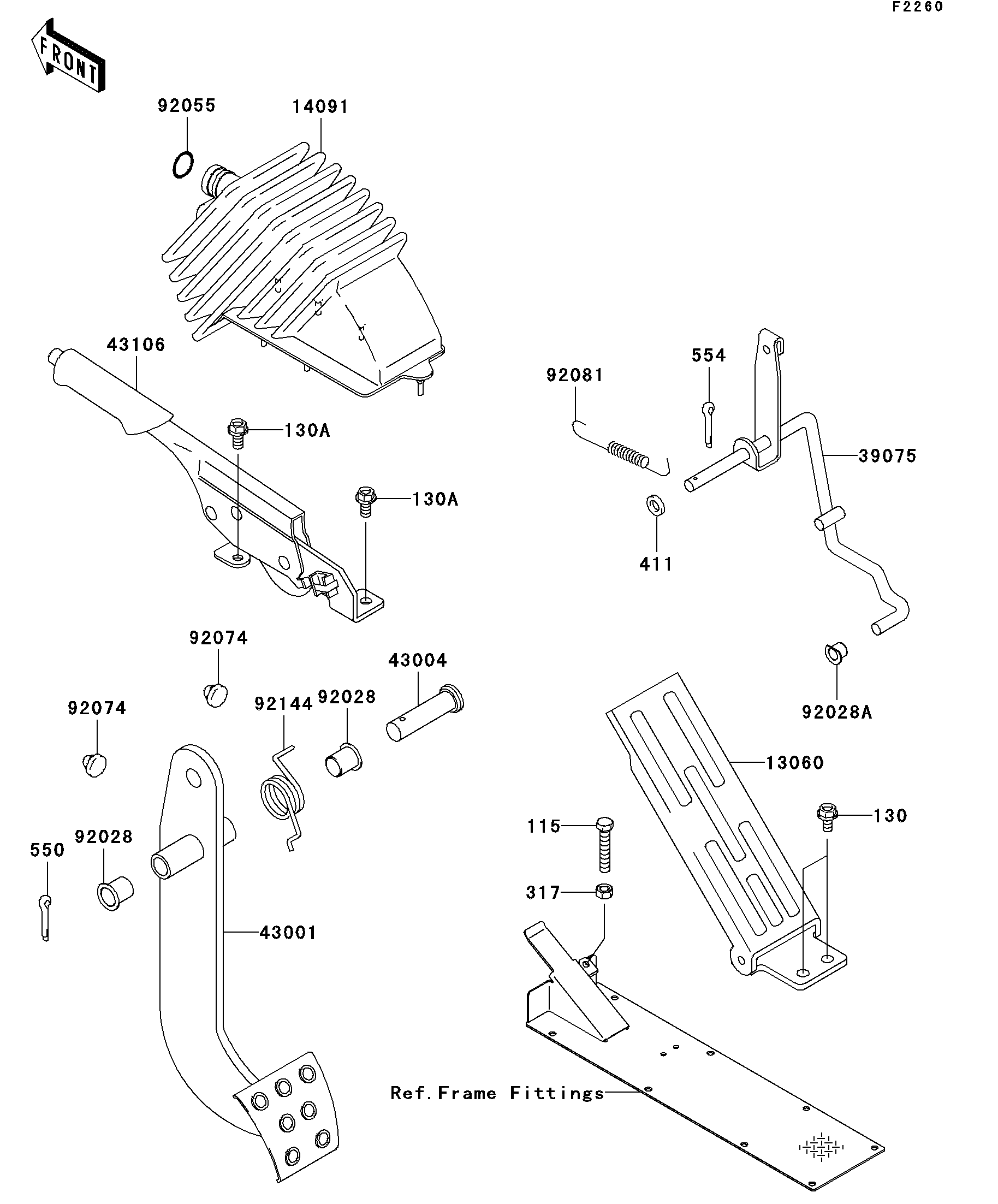

2008 Mule 3010 Diesel 4X4 - Brake Pedal/Throttle Lever
13060
14091
39075
43001
43004
43106
92028
92028
92028A
92055
92074
92074
92081
92144
115
130
130A
130A
317
411
550
554
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PEDAL,THROTTLE | 13060 | 13060-1061 | 1 | ||
COVER,PARKING LEVER | 14091 | 14091-0067 | 1 | ||
LEVER-THROTTLE | 39075 | 39075-1057 | 1 | ||
LEVER-BRAKE,PEDAL | 43001 | 43001-1320 | 1 | ||
SHAFT-BRAKE | 43004 | 43004-1128 | 1 | ||
LEVER-ASSY-PARKING BRAKE | 43106 | 43106-1005 | 1 | ||
BUSHING | 92028 | 92028-1571 | 2 | ||
BUSHING,THROTTLE LEVER | 92028A | 92028-1601 | 1 | ||
RING-O,18X24X3 | 92055 | 92055-1633 | 1 | ||
PLUG,7X2 | 92074 | 92074-028 | 2 | ||
SPRING | 92081 | 92081-1922 | 1 | ||
SPRING | 92144 | 92144-1536 | 1 | ||
BOLT-SMALL-UPSET,8X40 | 115 | 115D0840 | 1 | ||
BOLT-FLANGED,6X12 | 130 | 130C0612 | 2 | ||
BOLT-FLANGED,8X16 | 130A | 130D0816 | 2 | ||
NUT-HEX-SMALL,8MM | 317 | 317H0800 | 1 | ||
WASHER-PLAIN,10MM | 411 | 411E1000 | 1 | ||
PIN-COTTER,2.5X25 | 550 | 550D2525 | 1 | ||
PIN-SNAP,10MM | 554 | 554A1000 | 1 |
