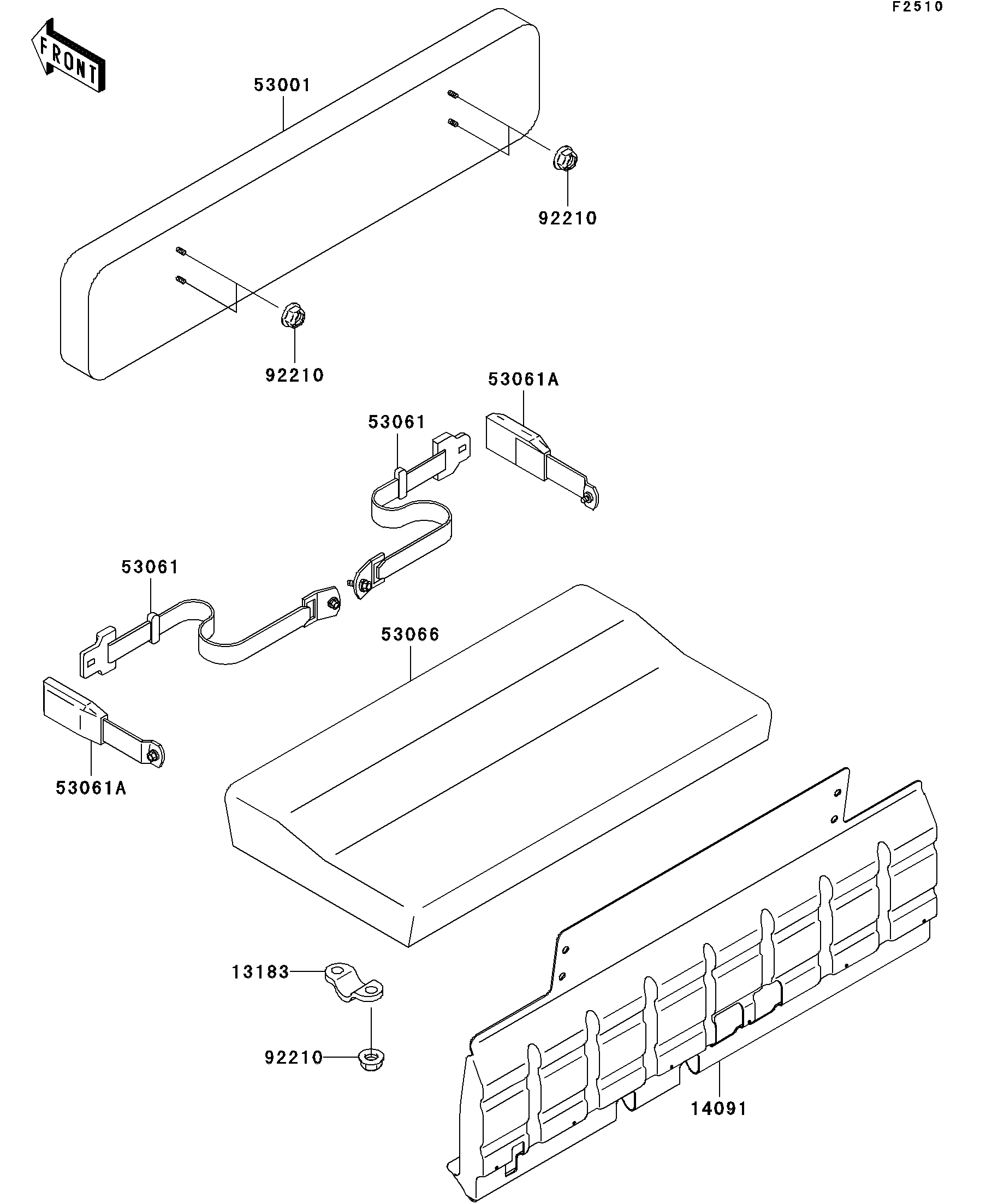

13183
14091
53001
53061
53061
53061A
53061A
53066
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,SEAT 13183 13183-1400 2
COVER,SEAT BACK 14091 14091-0529 1
SEAT-ASSY,BACK,GRAY 53001 53001-1584-338 1
BELT-SEAT,CATCH PLATE 53061 53061-1013 2
BELT-SEAT,BUCKLE 53061A 53061-1014 2
SEAT-ASSY,CUSHION,GRAY 53066 53066-7501-338 1
NUT,FLANGED,LOCK,8MM 92210 92210-0005 8
