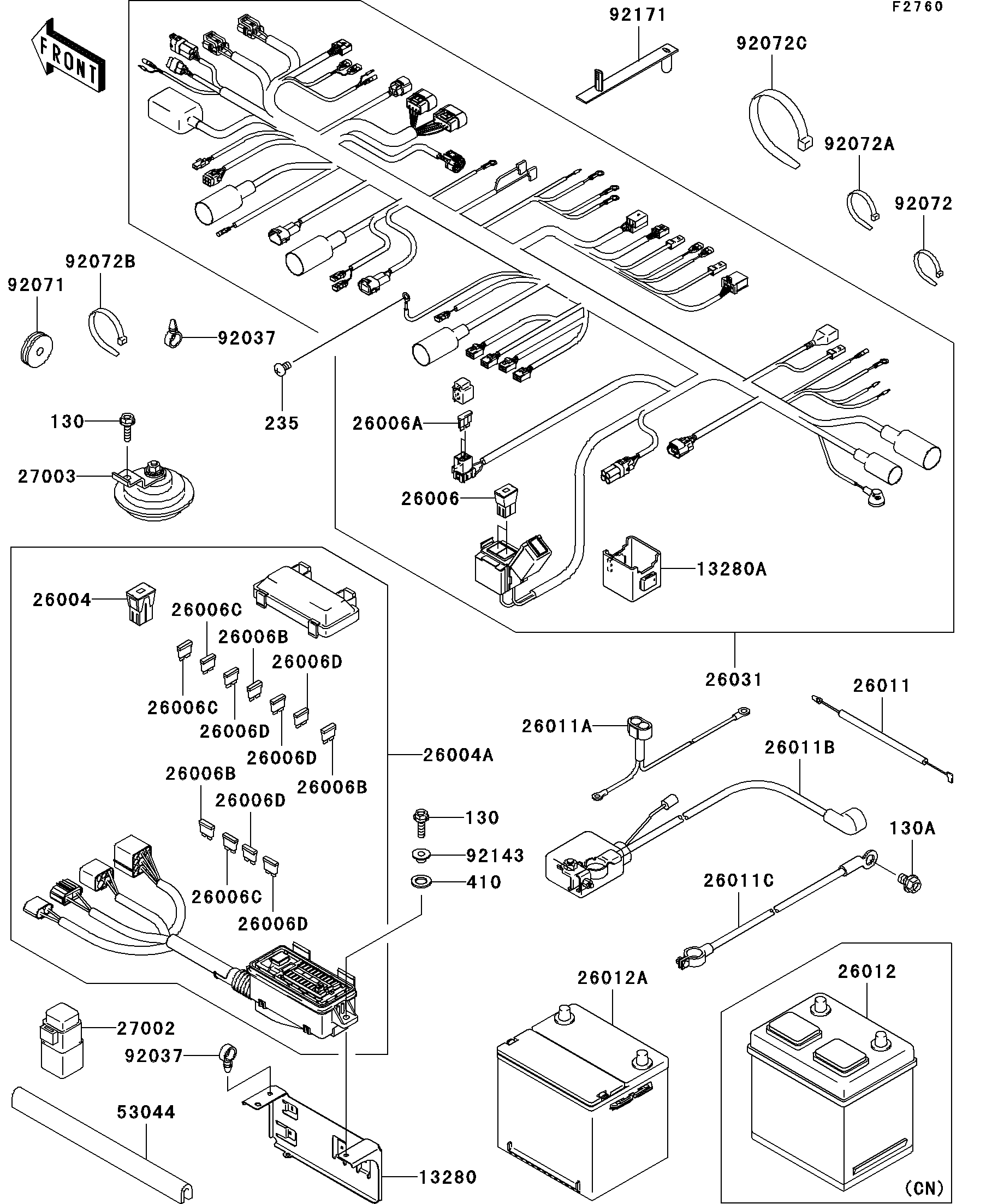

2008 Mule 3010 Diesel 4X4 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
13280
13280A
26004
26004A
26006
26006A
26006B
26006B
26006B
26006C
26006C
26006C
26006D
26006D
26006D
26006D
26006D
26011
26011A
26011B
26011C
26031
27002
27003
53044
92037
92037
92071
92072
92072A
92072B
92072C
92143
92171
130
130
130A
235
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13280 13280-1220 1
HOLDER 13280A 13280-7508 1
FUSE-ASSY,50A 26004 26004-1096 1
FUSE-ASSY 26004A 26004-7503 1
FUSE,40A 26006 26006-0014 2
FUSE,7.5A 26006A 26006-0015 2
FUSE,5A 26006B 26006-1077 3
FUSE,20A 26006C 26006-1079 3
FUSE,30A 26006D 26006-1080 5
WIRE-LEAD,OIL PRESSURE SWITCH 26011 26011-0001 1
WIRE-LEAD,ALTERNATOR 26011A 26011-7508 1
WIRE-LEAD,BATTERY(+) 26011B 26011-7512 1
WIRE-LEAD,BATTERY(-) 26011C 26011-7513 1
HARNESS,MAIN 26031 26031-7509 1
RELAY-ASSY 27002 27002-1068 1
HORN 27003 27003-1276 1
TRIM 53044 53044-1137 1
CLAMP,HOSE 92037 92037-1827 4
GROMMET 92071 92071-1136 1
BAND,L=123 92072 92072-030 1
BAND,L=149 92072A 92072-031 1
BAND,L=188 92072B 92072-1239 14
BAND,L=368.3 92072C 92072-3872 6
COLLAR 92143 92143-1057 2
CLAMP 92171 92171-1365 1
BOLT-FLANGED,6X20 130 130J0620 3
BOLT-FLANGED,8X12 130A 130J0812 1
SCREW-PAN-WP-CROS,6X10 235 235B0610 1
WASHER-PLAIN-SMALL,10MM,BLACK 410 410F1000 2
