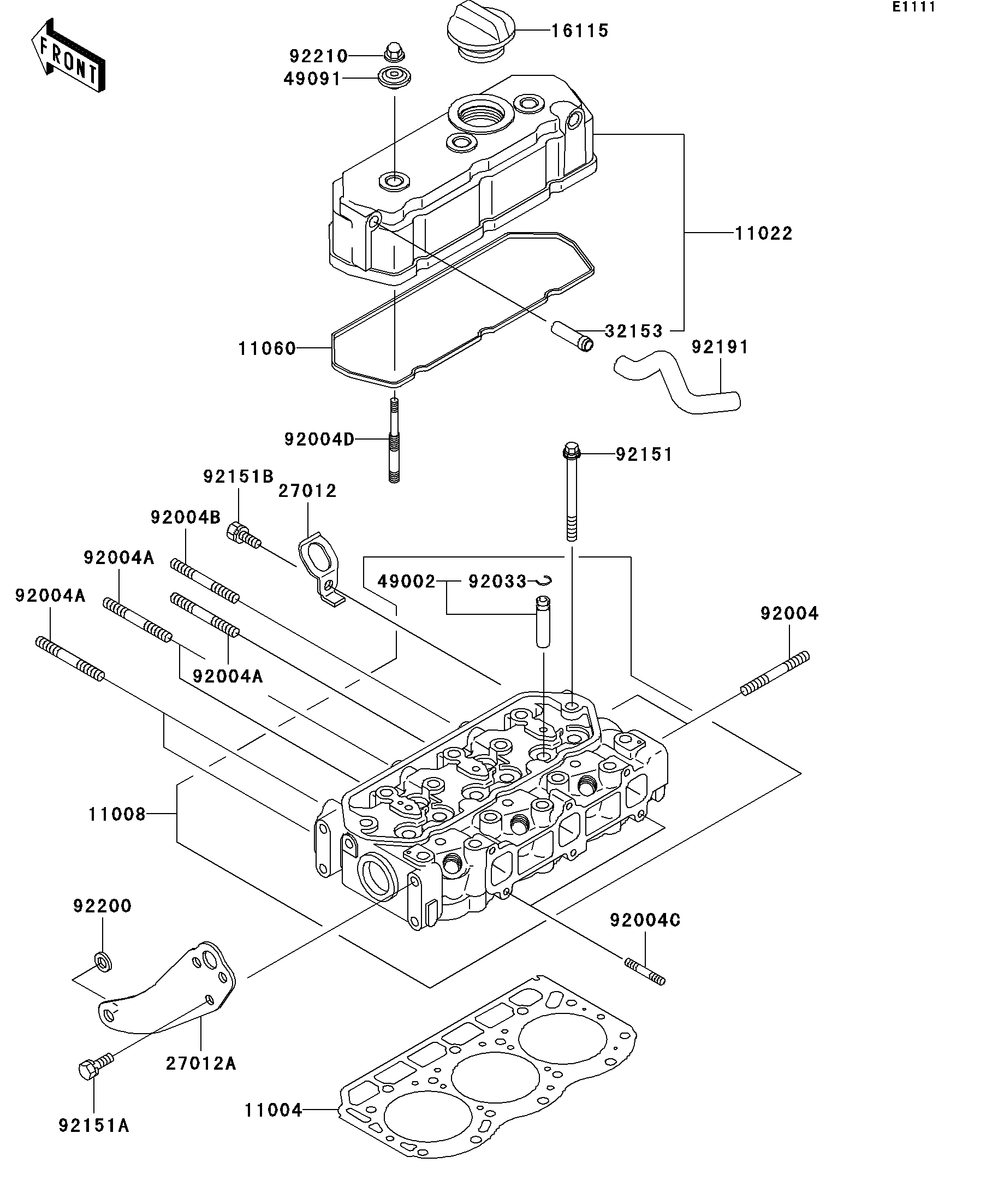

2008 Mule 3010 Trans4x4 Diesel - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
11022
11060
16115
27012
27012A
32153
49002
49091
92004
92004A
92004A
92004A
92004B
92004C
92004D
92033
92151
92151A
92151B
92191
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1350 1
HEAD-COMP-CYLINDER 11008 11008-1382 1
CASE-ROCKER 11022 11022-1059 1
GASKET,ROCKER CASE 11060 11060-1944 1
CAP-OIL FILLER 16115 16115-1071 1
HOOK,ENGINE,FR 27012 27012-1587 1
HOOK,ENGINE,LH 27012A 27012-1588 1
PIPE,ROCKER CASE 32153 32153-1180 1
GUIDE-VALVE 49002 49002-1142 6
WASHER-SEAL 49091 49091-1054 3
STUD,8X38 92004 92004-1263 2
STUD,8X35 92004A 92004-1264 5
STUD,8X39 92004B 92004-1265 1
STUD,6X18 92004C 92004-1266 2
STUD,ROCKER CASE 92004D 92004-1267 3
RING-SNAP,VALVE GUIDE 92033 92033-1315 6
BOLT,CYLINDER HEAD 92151 92151-1659 14
BOLT,8X16 92151A 92151-1660 1
BOLT,8X18 92151B 92151-1661 1
TUBE,BREATHER 92191 92191-1562 1
WASHER 92200 92200-1519 1
NUT,CAP,6MM 92210 92210-1209 3
