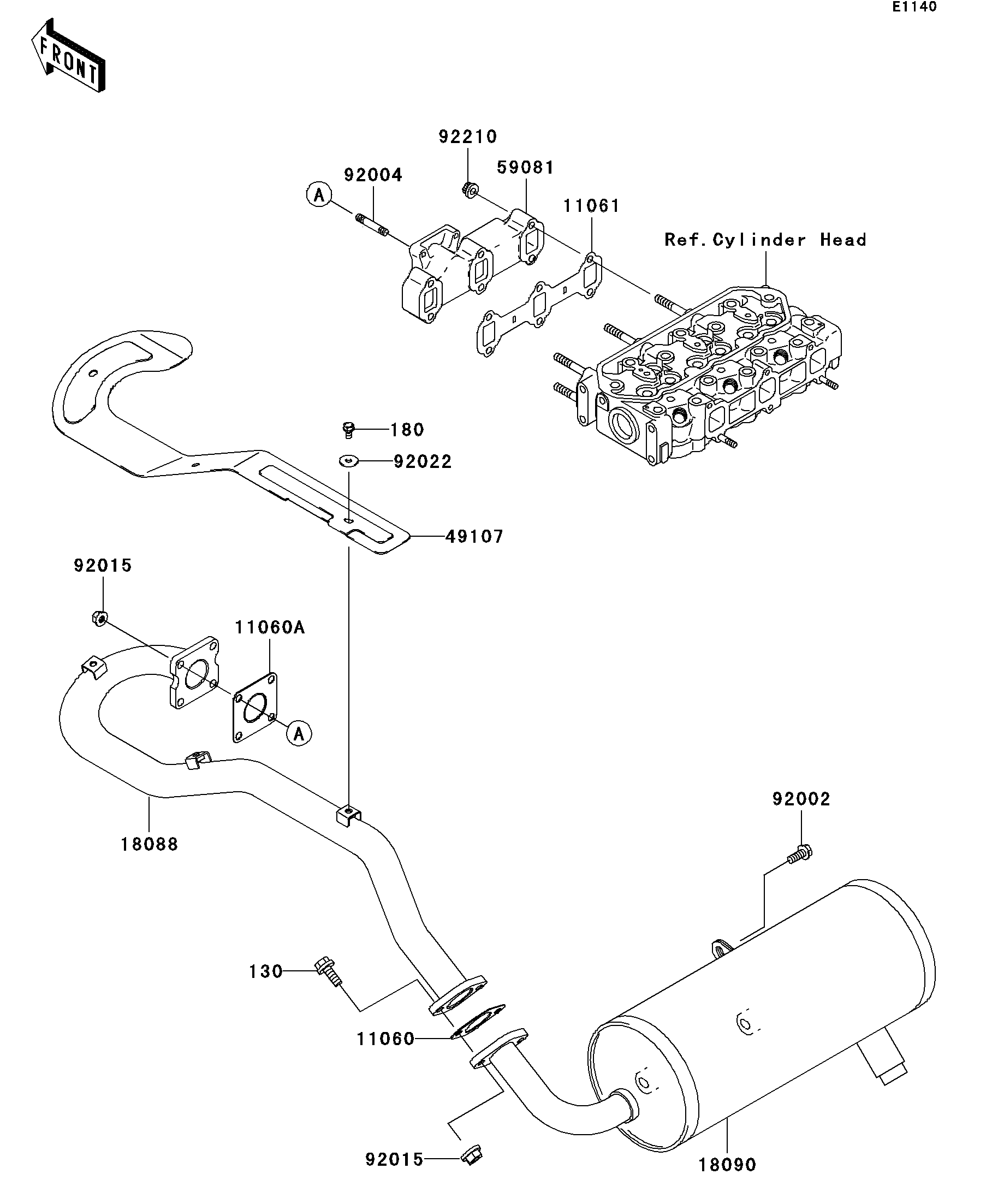

11060
11060A
11061
18088
18090
49107
59081
92002
92004
92015
92015
92022
92210
130
180
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MUFFLER 11060 11060-1915 1
GASKET,EXHAUST PIPE 11060A 11060-1916 1
GASKET,EXHAUST MANIFOLD 11061 11061-1101 1
PIPE-EXHAUST 18088 18088-1216 1
BODY-COMP-MUFFLER 18090 18090-1739 1
COVER-EXHAUST PIPE 49107 49107-0004 1
MANIFOLD-EXHAUST 59081 59081-1391 1
BOLT,8X20 92002 92002-1250 3
STUD,8X20 92004 92004-1272 4
NUT,FLANGED,8MM 92015 92015-1406 6
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 3
NUT,8MM 92210 92210-1217 6
BOLT-FLANGED,8X25 130 130J0825 2
BOLT-UPSET-WS,6X12 180 180J0612 3
