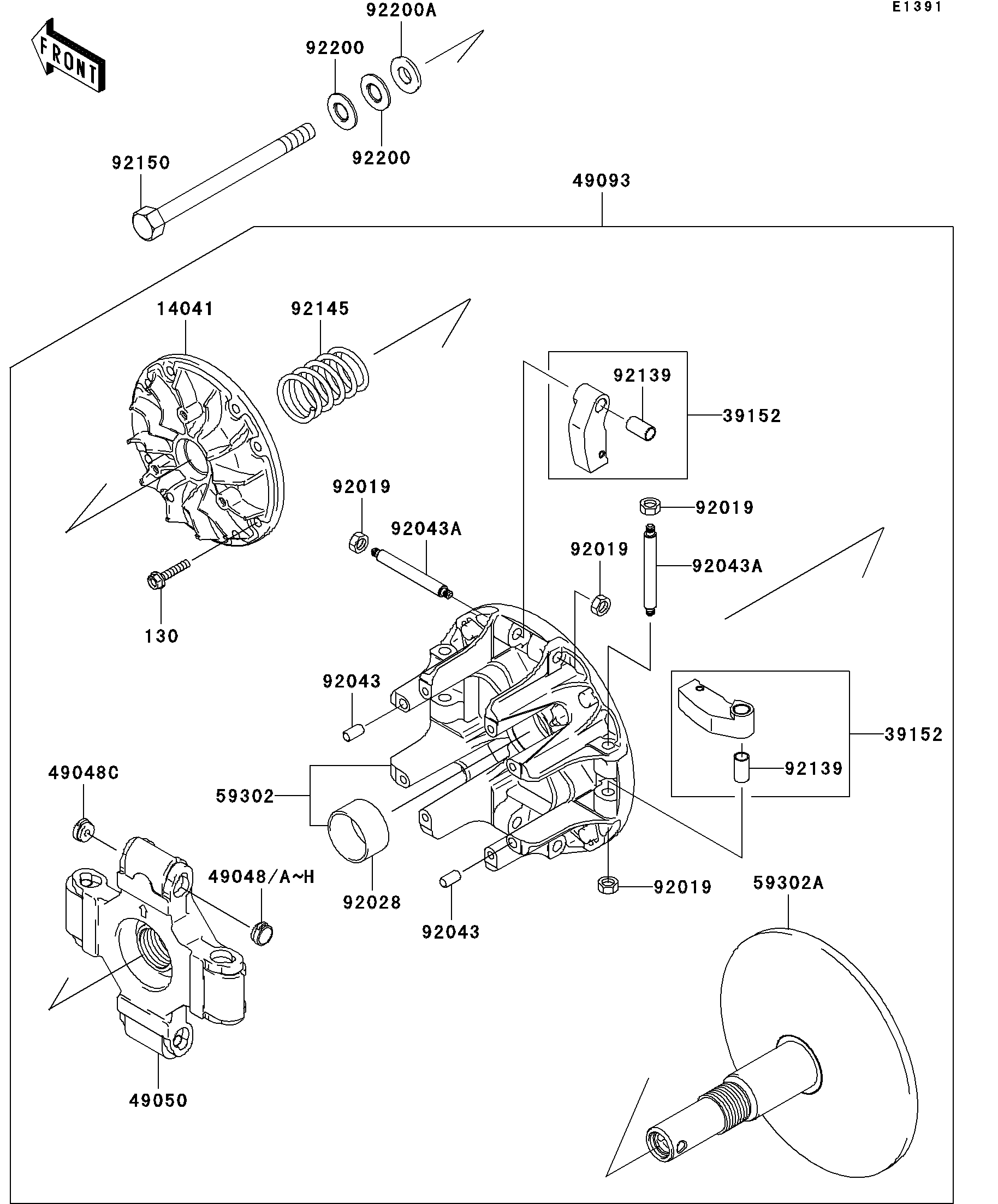

2008 Mule 3010 Trans4x4 Diesel - Drive Converter

DOWNLOAD PDF
SELECT A NEW PART
14041
39152
39152
49048
49048A
49048B
49048C
49048C
49048D
49048E
49048F
49048G
49048H
49050
49093
59302
59302A
92019
92019
92019
92019
92028
92043
92043
92043A
92043A
92139
92139
92145
92150
92200
92200
92200A
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-COMP 14041 14041-1168 1
WEIGHT-RAMP 39152 39152-1103 4
SHOE,T=7.2 49048 49048-1087 AR (OPTION)
SHOE,T=7.3 49048A 49048-1088 AR (OPTION)
SHOE,T=7.4 49048B 49048-1089 AR (OPTION)
SHOE,T=7.5 49048C 49048-1090 8
SHOE,T=7.6 49048D 49048-1091 AR (OPTION)
SHOE,T=7.7 49048E 49048-1092 AR (OPTION)
SHOE,T=7.8 49048F 49048-1093 AR (OPTION)
SHOE,T=7.9 49048G 49048-1094 AR (OPTION)
SHOE,T=8.0 49048H 49048-1095 AR (OPTION)
SPIDER 49050 49050-1083 1
CONVERTER-ASSY-DRIVE 49093 49093-1077 1
SHEAVE-COMP,MOVABLE 59302 59302-1102 1
SHEAVE-COMP 59302A 59302-1103 1
NUT,LOCK,6MM 92019 92019-008 8
BUSHING 92028 92028-1975 1
PIN,6.2X8X14 92043 92043-1263 2
PIN 92043A 92043-1699 4
BUSHING,9X11X19.75 92139 92139-1103 4
SPRING,DRIVE 92145 92145-0038 1
BOLT,12X163.5 92150 92150-1008 1
WASHER,SPRING 92200 92200-1504 2
WASHER 92200A 92200-1634 1
BOLT-FLANGED,6X30 130 130T0630 8
