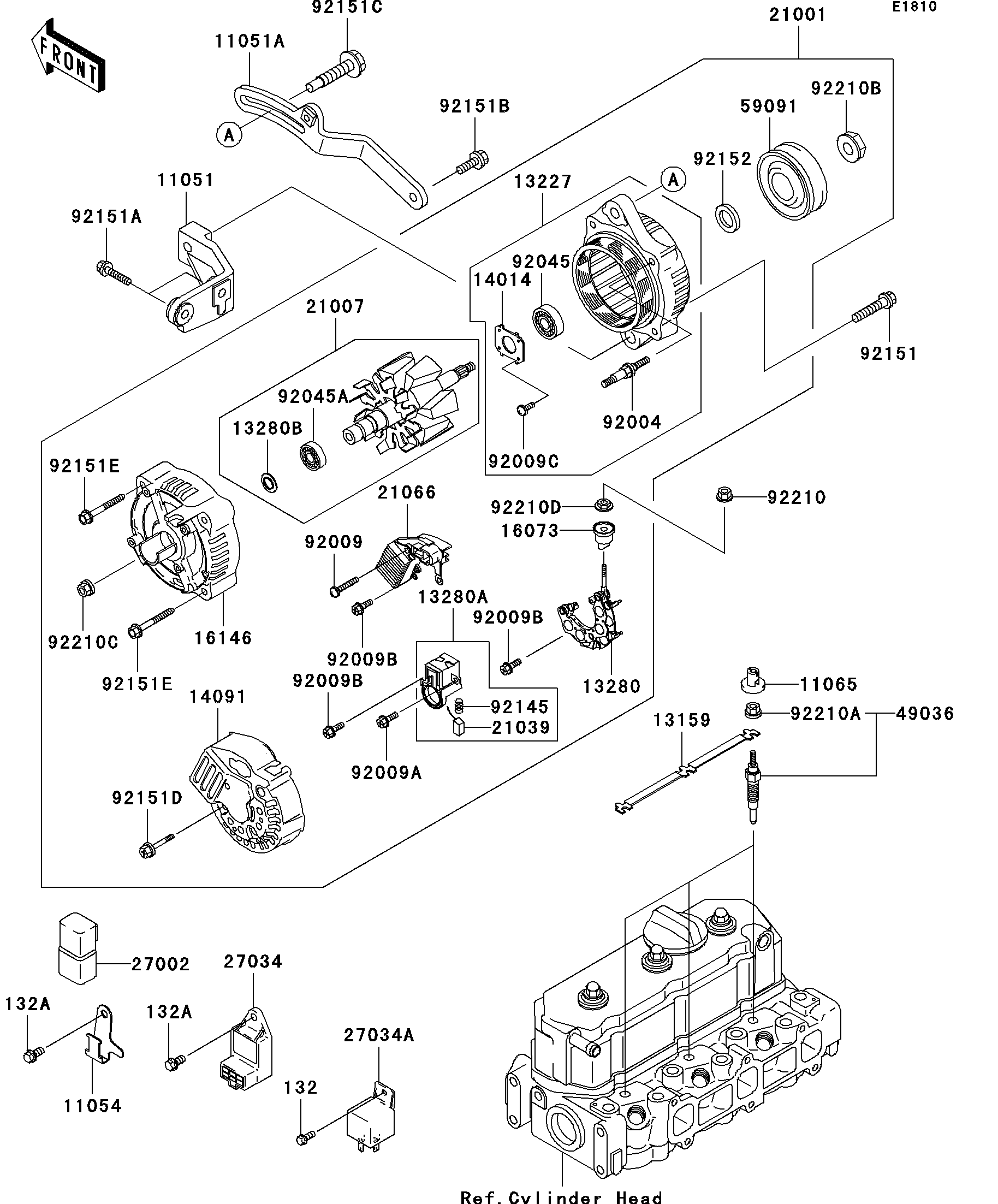

2008 Mule 3010 Trans4x4 Diesel - Generator

DOWNLOAD PDF
SELECT A NEW PART
11051
11051
11051A
11051A
11054
11054
11065
11065
13159
13159
13227
13227
13280
13280
13280A
13280A
13280B
13280B
14014
14014
14091
14091
16073
16073
16146
16146
21001
21001
21007
21007
21039
21039
21066
21066
27002
27002
27034
27034
27034A
27034A
49036
49036
59091
59091
92004
92004
92009
92009
92009A
92009A
92009B
92009B
92009B
92009B
92009B
92009B
92009C
92009C
92045
92045
92045A
92045A
92145
92145
92151
92151
92151A
92151A
92151B
92151B
92151C
92151C
92151D
92151D
92151E
92151E
92151E
92151E
92152
92152
92210
92210
92210A
92210A
92210B
92210B
92210C
92210C
92210D
92210D
132
132
132A
132A
132A
132A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR 11051 11051-1568 1
BRACKET,UPP 11051A 11051-1569 1
BRACKET 11054 11054-7512 1
CAP,GLOW 11065 11065-1150 3
CONNECTOR 13159 13159-1066 1
HOUSING,ALTERNATOR 13227 13227-1139 1
HOLDER,RECTIFIER 13280 13280-1173 1
HOLDER,ALTERNATOR BRUSH 13280A 13280-1174 1
HOLDER,BEARING 13280B 13280-1175 1
PLATE-POSITION 14014 14014-1149 1
COVER,REAR END 14091 14091-1207 1
INSULATOR 16073 16073-1122 1
COVER-ASSY,RECTIFIER 16146 16146-1214 1
GENERATOR 21001 21001-1176 1
ROTOR,ALTERNATOR 21007 21007-1368 1
BRUSH 21039 21039-1068 2
REGULATOR-VOLTAGE 21066 21066-1122 1
RELAY-ASSY 27002 27002-1086 1
RELAY,HEATING TIMER 27034 27034-1065 1
RELAY,GLOW 27034A 27034-1066 1
PLUG-GLOW 49036 49036-1051 3
PULLEY,ALTERNATOR 59091 59091-1106 1
STUD,ALTERNATOR HOUSING 92004 92004-1273 2
SCREW 92009 92009-1921 2
SCREW 92009A 92009-1922 1
SCREW 92009B 92009-1923 6
SCREW,POSITION PLATE 92009C 92009-1924 4
BEARING-BALL,373 92045 92045-1398 1
BEARING-BALL,6002DG6 92045A 92045-1399 1
SPRING,ALTERNATOR BRUSH 92145 92145-1312 2
BOLT,10X40 92151 92151-1691 1
BOLT,8X25 92151A 92151-1692 2
BOLT,8X20 92151B 92151-1693 1
BOLT,8X45 92151C 92151-1694 1
BOLT 92151D 92151-1715 3
BOLT 92151E 92151-1716 2
COLLAR 92152 92152-1230 1
NUT,6MM 92210 92210-1210 1
NUT,GLOW PLUG,4MM 92210A 92210-1218 3
NUT,PULLEY 92210B 92210-1232 1
NUT 92210C 92210-1233 2
NUT 92210D 92210-1234 1
BOLT-FLANGED-SMALL,5X12 132 132J0512 1
BOLT-FLANGED-SMALL,6X12 132A 132J0612 2
