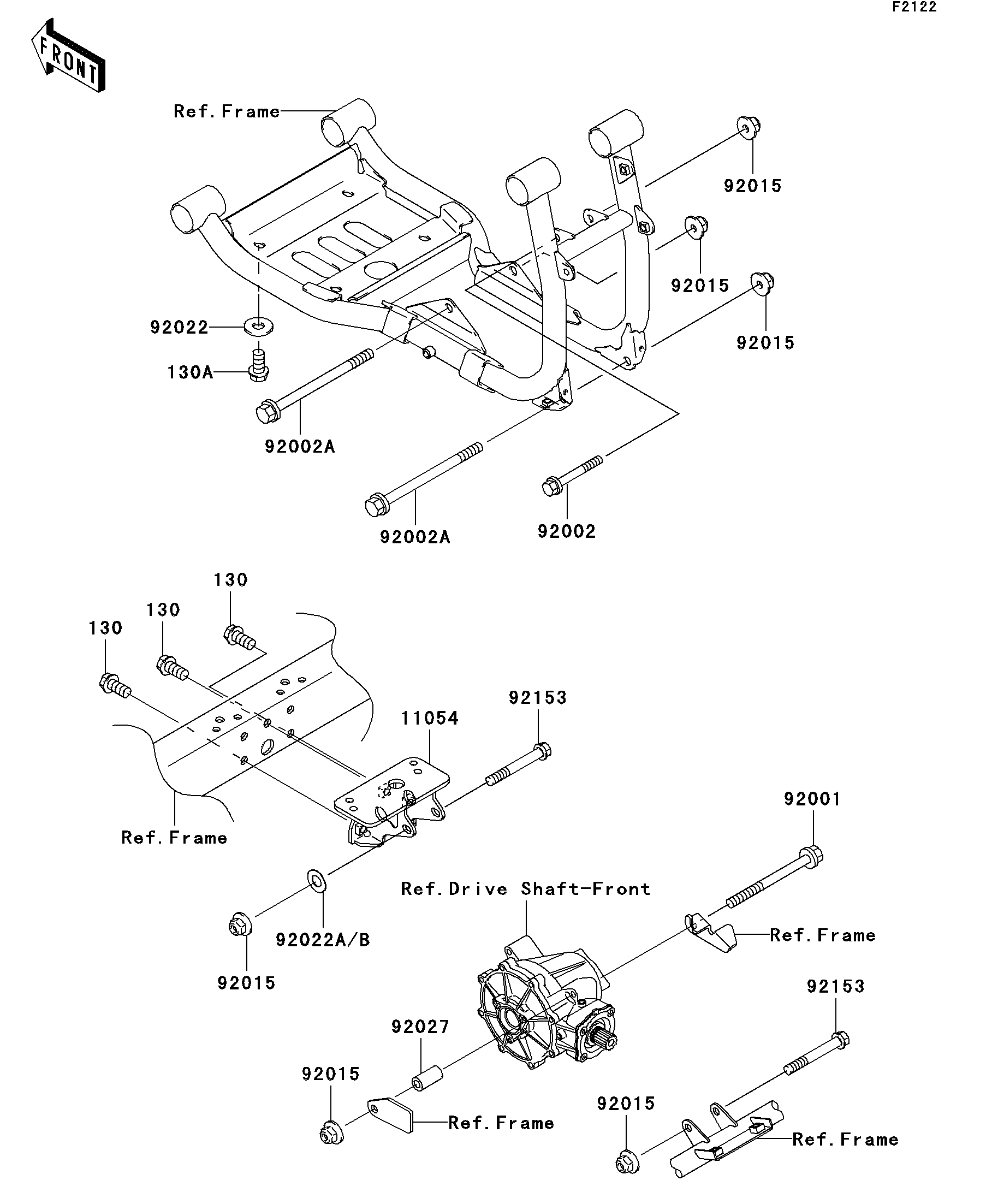

2008 Mule 3010 Trans4x4 Diesel - Engine Mount
11054
92001
92002
92002A
92002A
92015
92015
92015
92015
92015
92015
92022
92022A
92022B
92027
92153
92153
130
130
130
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,FRONT GEAR CASE | 11054 | 11054-7506 | 1 | ||
| BOLT,FLANGED,10X115 | 92001 | 92001-1603 | 1 | ||
| BOLT,FLANGED,10X80 | 92002 | 92002-1764 | 1 | ||
| BOLT,FLANGED,10X145 | 92002A | 92002-1765 | 2 | ||
| NUT,LOCK,10MM | 92015 | 92015-1597 | 6 | ||
| WASHER,10.5X26X2.3,BLACK | 92022 | 92022-1396 | 4 | ||
| WASHER,10.2X20X0.5 | 92022A | 92022-1649 | AR | ||
| WASHER,10.5X20X1 | 92022B | 92022-239 | AR | ||
| COLLAR,11X20X39 | 92027 | 92027-1518 | 1 | ||
| BOLT,FLANGED,10X75 | 92153 | 92153-1384 | 2 | ||
| BOLT-FLANGED,10X20 | 130 | 130G1020 | 3 | ||
| BOLT-FLANGED,10X20 | 130A | 130J1020 | 4 |
