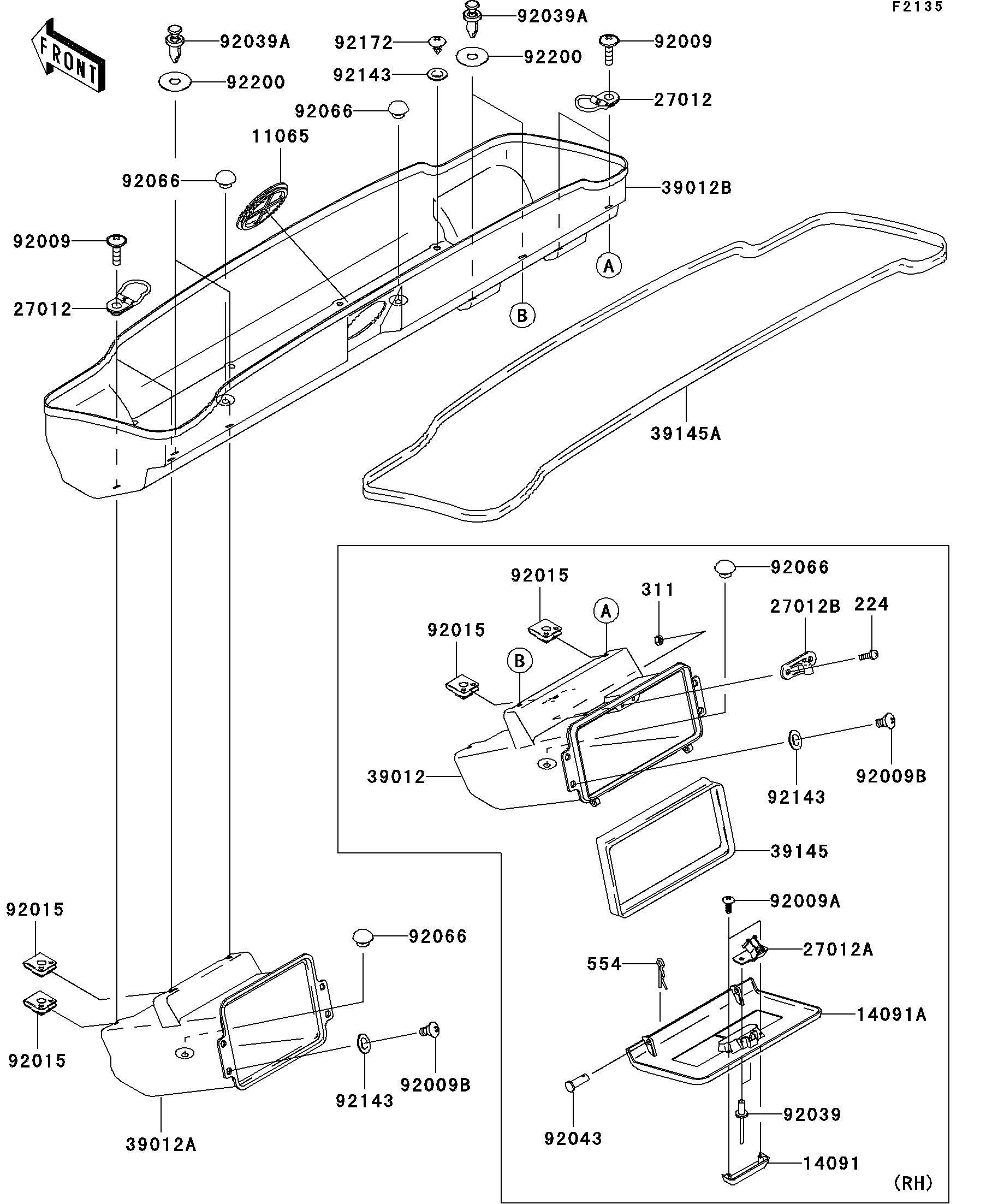

2008 Mule 3010 Trans4x4 Diesel - Front Box

DOWNLOAD PDF
SELECT A NEW PART
11065
14091
14091A
27012
27012
27012A
27012B
39012
39012A
39012B
39145
39145A
92009
92009
92009A
92009B
92009B
92015
92015
92015
92015
92039
92039A
92039A
92043
92066
92066
92066
92066
92143
92143
92143
92172
92200
92200
224
311
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,F.BLACK 11065 11065-1053-6Z 1
COVER,STORAGE GRIP,GRAY 14091 14091-1228-284 1
COVER,CONTROL PANEL,GRAY 14091A 14091-1399-284 1
HOOK 27012 27012-1577 4
HOOK 27012A 27012-1607 1
HOOK 27012B 27012-1612 1
CASE-STORAGE,RH,GRAY 39012 39012-1061-284 1
CASE-STORAGE,LH,GRAY 39012A 39012-1062-284 1
CASE-STORAGE,CNT 39012B 39012-1066 1
TRIM-SEAL,L=774 39145 39145-1130 1
TRIM-SEAL,L=2805 39145A 39145-1132 1
SCREW,6X22,BLACK 92009 92009-1256 4
SCREW,TAPPING,4X12 92009A 92009-1444 2
SCREW,6X16 92009B 92009-1621 8
NUT,CLAMP,6MM 92015 92015-1678 4
RIVET 92039 92039-1041 2
RIVET 92039A 92039-1229 4
PIN,6X14.5 92043 92043-125 2
PLUG 92066 92066-1485 4
COLLAR 92143 92143-1087 12
SCREW,TAPPING,6X12 92172 92172-0003 4
WASHER,8.5X26X0.8 92200 92200-1567 4
SCREW-PAN-WP-CROS,4X12 224 224C0412 2
NUT-HEX 311 311C0400 2
PIN-SNAP 554 554A0600 2
