16126
16126
41009
41009
41025
41025
92015
92015

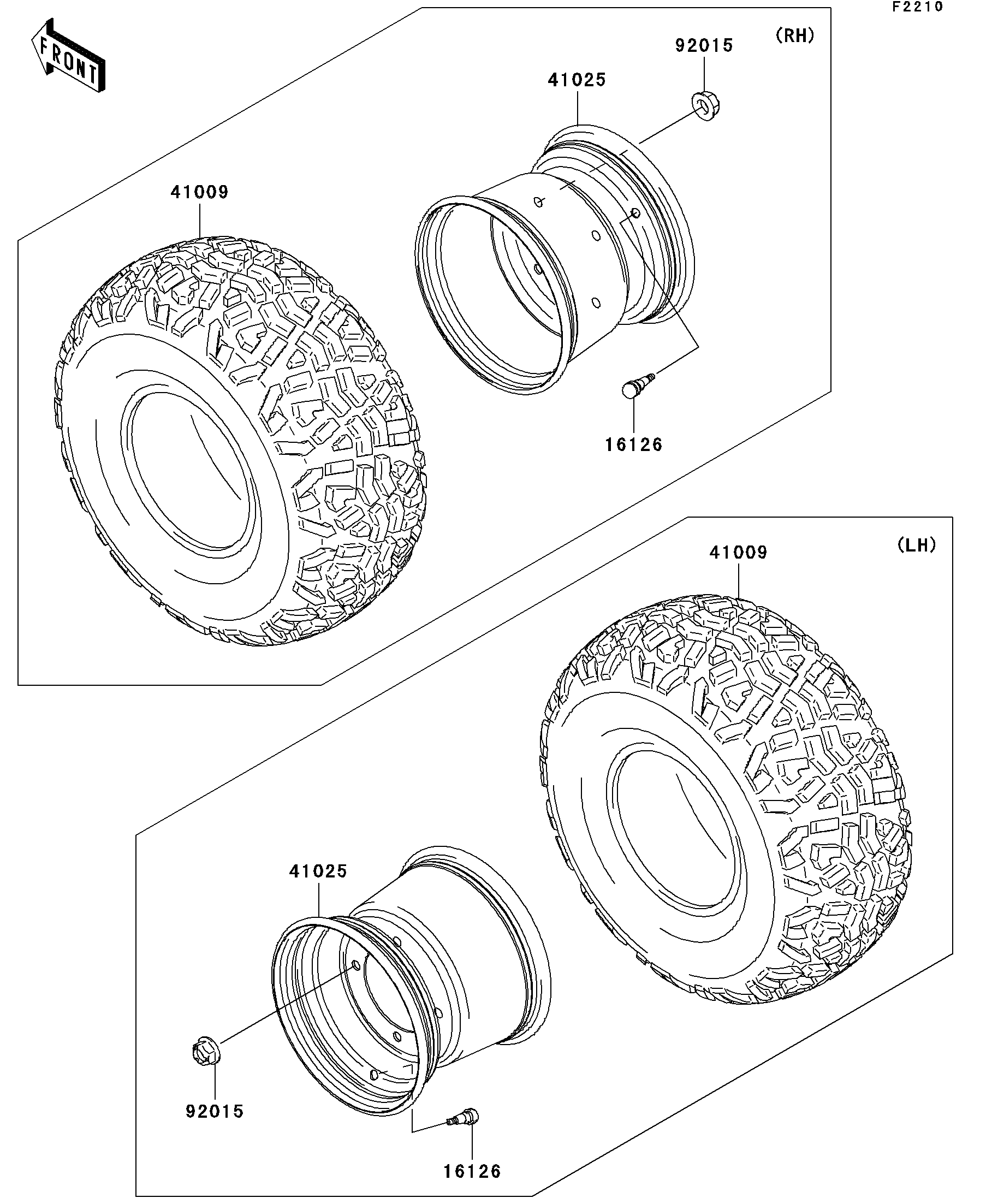

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-4001 4
TIRE,23X11.00-10 4PR,KT869(D) 41009 41009-0166 4
RIM,10X8.5AT,M.GRAYSTONE 41025 41025-7503-379 4
NUT,12MM 92015 92015-1706 16
