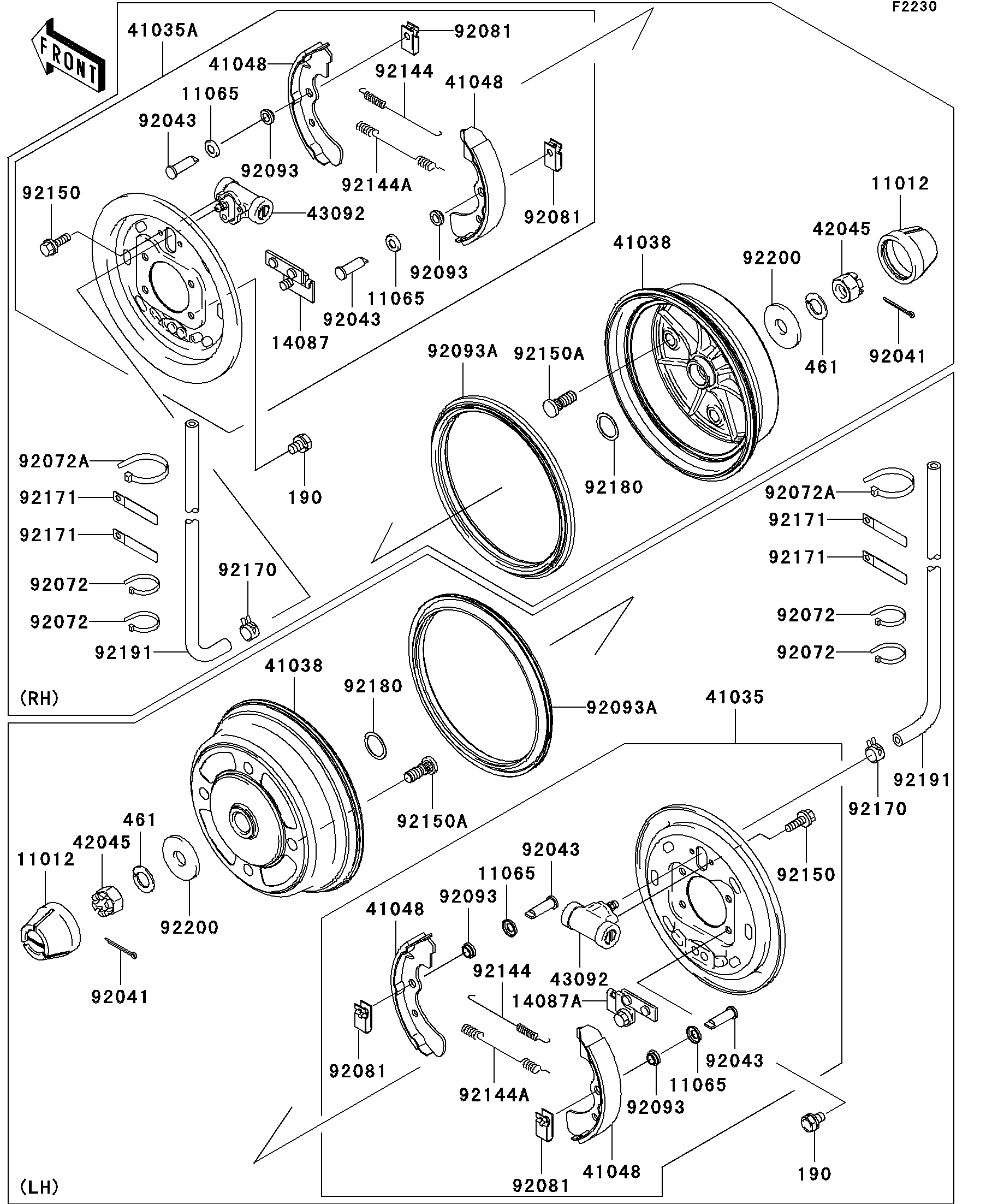

2008 Mule 3010 Trans4x4 Diesel - Front Hubs/Brakes

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11065
11065
11065
11065
14087
14087A
41035
41035A
41038
41038
41048
41048
41048
41048
42045
42045
43092
43092
92041
92041
92043
92043
92043
92043
92072
92072
92072
92072
92072A
92072A
92081
92081
92081
92081
92093
92093
92093
92093
92093A
92093A
92144
92144
92144A
92144A
92150
92150
92150A
92150A
92170
92170
92171
92171
92171
92171
92180
92180
92191
92191
92200
92200
190
190
461
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,WHEEL 11012 11012-1969 2
CAP 11065 11065-1175 4
RETAINER-ASSY,RH 14087 14087-1001 1
RETAINER-ASSY,LH 14087A 14087-1002 1
PANEL-ASSY-BRAKE,FR,LH 41035 41035-7502 1
PANEL-ASSY-BRAKE,FR,RH 41035A 41035-7504 1
DRUM,FRONT BRAKE 41038 41038-7501 2
SHOE-BRAKE 41048 41048-7501 4
NUT,CASTLE,18MM 42045 42045-018 2
CYLINDER,FRONT BRAKE PANEL 43092 43092-1054 2
COTTER,4.0X35 92041 92041-1053 2
PIN 92043 92043-1636 4
BAND,L=123 92072 92072-030 4
BAND,L=149 92072A 92072-031 2
SPRING,SHOE CLAMP 92081 92081-1904 4
SEAL 92093 92093-1532 4
SEAL,BS184.8X13.5ZS 92093A 92093-1543 2
SPRING,BRAKE 92144 92144-1300 2
SPRING,BRAKE 92144A 92144-1301 2
BOLT,FLANGED,6X12 92150 92150-1166 4
BOLT 92150A 92150-1366 8
CLAMP 92170 92170-2042 2
CLAMP 92171 92171-0652 4
SHIM,25.2X32.5X0.6 92180 92180-1353 2
TUBE,4.7X9.5X1480 92191 92191-1615 2
WASHER,18.5X52X4.5 92200 92200-1474 2
BOLT-UPSET-WS,10X16 190 190H1016 8
WASHER-SPRING,18MM 461 461F1800 2
