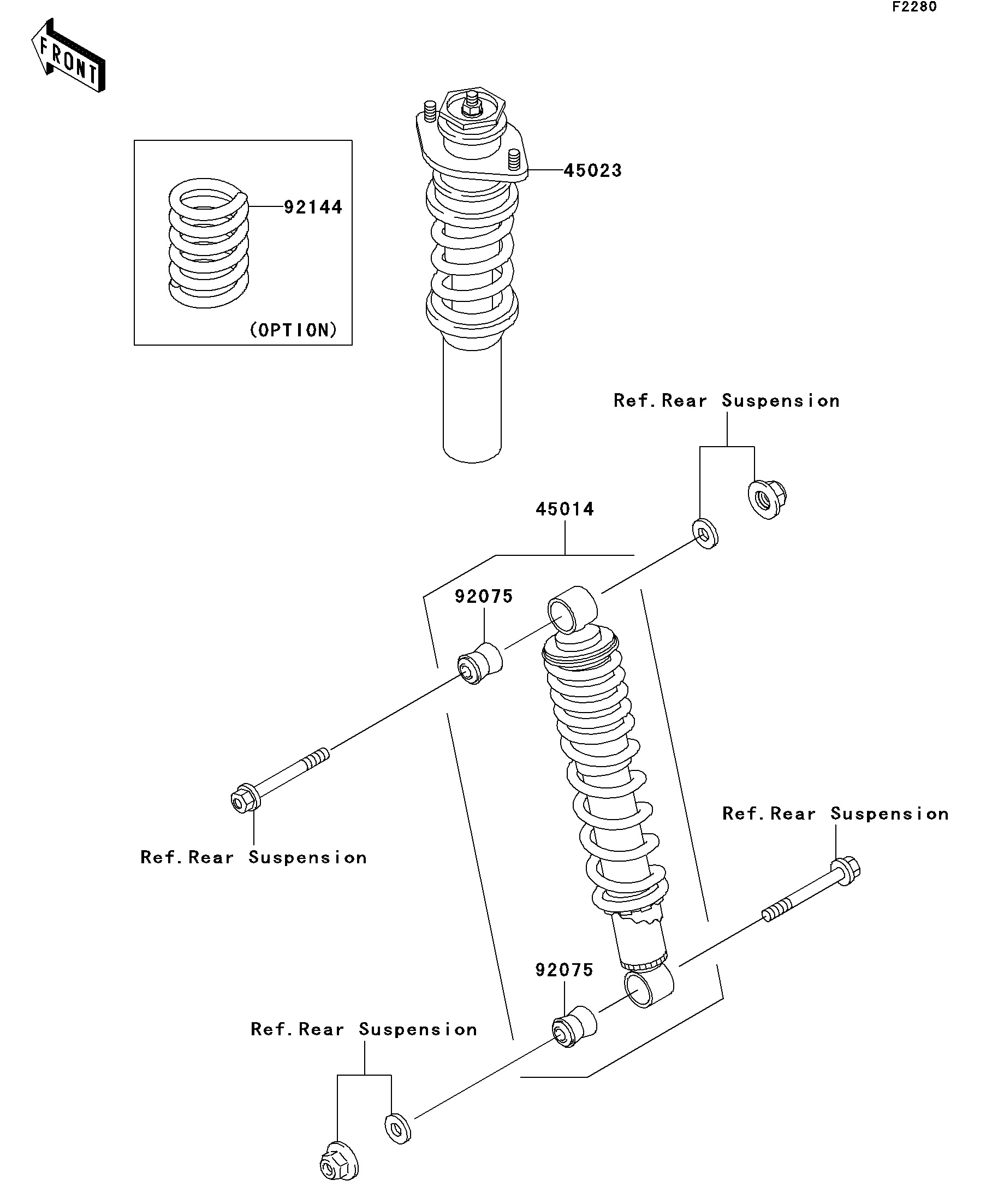

2008 Mule 3010 Trans4x4 Diesel - Shock Absorber(s)

45014
45023
92075
92075
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHOCKABSORBER,RR 45014 45014-7505 2
STRUT,K=19.1N/MM 45023 45023-7506 2
DAMPER,SHOCKABSORBER 92075 92075-1784 4
SPRING,STRUT,K=30.7N/MM 92144 92144-1919 2 (OPTION)
