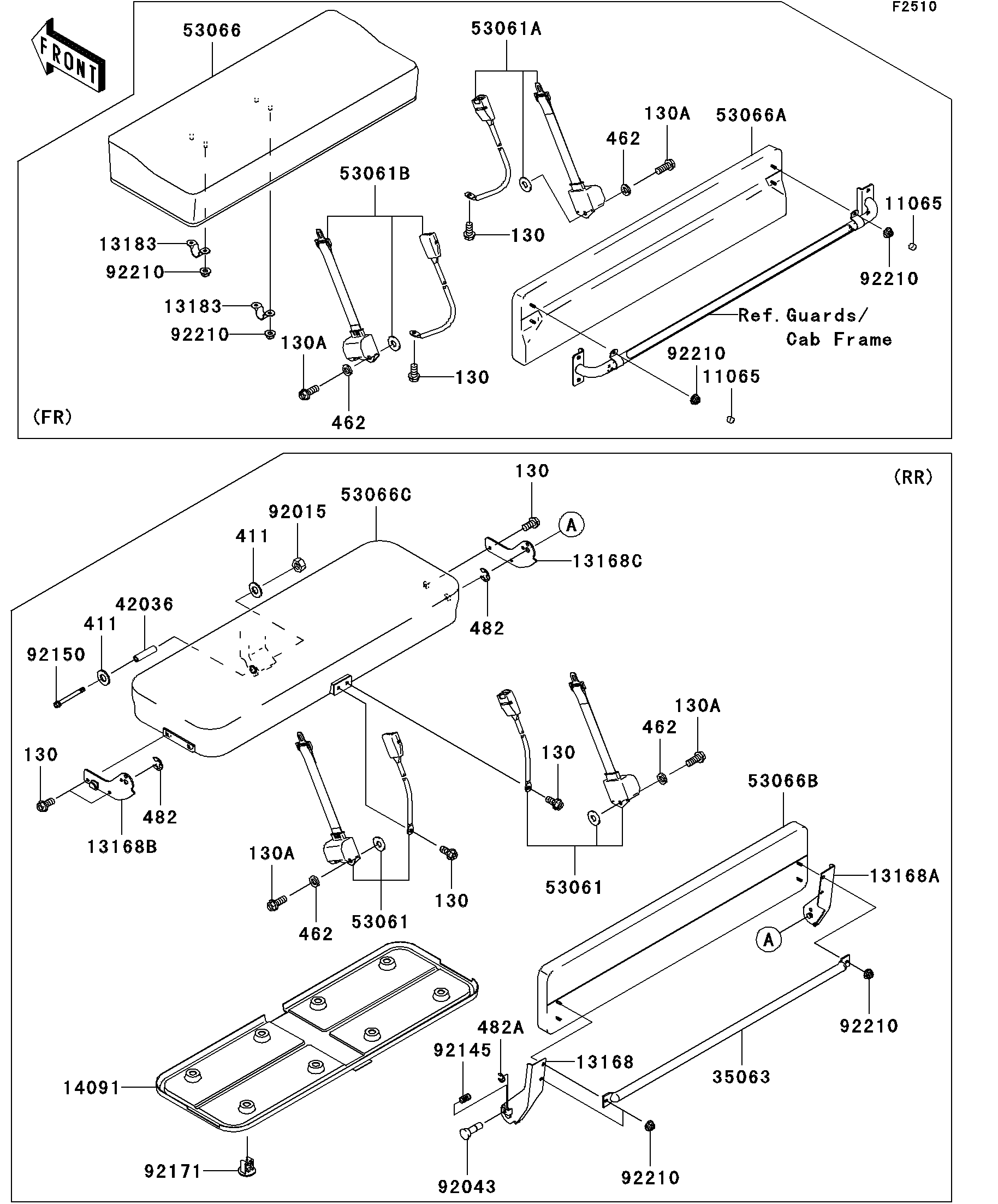

2008 Mule 3010 Trans4x4 Diesel - Seat

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
13168
13168A
13168B
13168C
13183
13183
14091
35063
42036
53061
53061
53061A
53061B
53066
53066A
53066B
53066C
92015
92043
92145
92150
92171
92210
92210
92210
92210
92210
92210
130
130
130
130
130
130
130A
130A
130A
130A
411
411
462
462
462
462
482
482
482A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-7504 4
LEVER,SEAT,TOP,LH 13168 13168-7502 1
LEVER,SEAT,TOP,RH 13168A 13168-7503 1
LEVER,SEAT,LWR,LH 13168B 13168-7504 1
LEVER,SEAT,LWR,RH 13168C 13168-7505 1
PLATE,SEAT 13183 13183-1400 2
COVER,REAR SEAT,BOTTOM 14091 14091-7556 1
STAY,REAR BACK 35063 35063-7510 1
SLEEVE,12.1X20X85 42036 42036-7501 1
BELT-SEAT,RR 53061 53061-7506 2
BELT-SEAT,FR,RH 53061A 53061-7507 1
BELT-SEAT,FR,LH 53061B 53061-7508 1
SEAT-ASSY,FR,LWR,GRAY 53066 53066-7502-338 1
SEAT-ASSY,FR,BACK,GRAY 53066A 53066-7503-338 1
SEAT-ASSY,RR,BACK,GRAY 53066B 53066-7507-338 1
SEAT-ASSY,RR,LWR,GRAY 53066C 53066-7509-338 1
NUT,LOCK,12MM,BLACK 92015 92015-1190 1
PIN 92043 92043-7503 1
SPRING 92145 92145-7507 1
BOLT,FLANGED,12X117 92150 92150-1895 1
CLAMP 92171 92171-7509 8
NUT,FLANGED,LOCK,8MM 92210 92210-0005 12
BOLT-FLANGED,10X20 130 130J1020 8
BOLT-FLANGED,10X25 130A 130J1025 4
WASHER-PLAIN 411 411F1200 2
WASHER-SPRING,10MM 462 462K1000 4
CIRCLIP-TYPE-E 482 482L0200 2
CIRCLIP-TYPE-E,8MM 482A 482L8000 1
