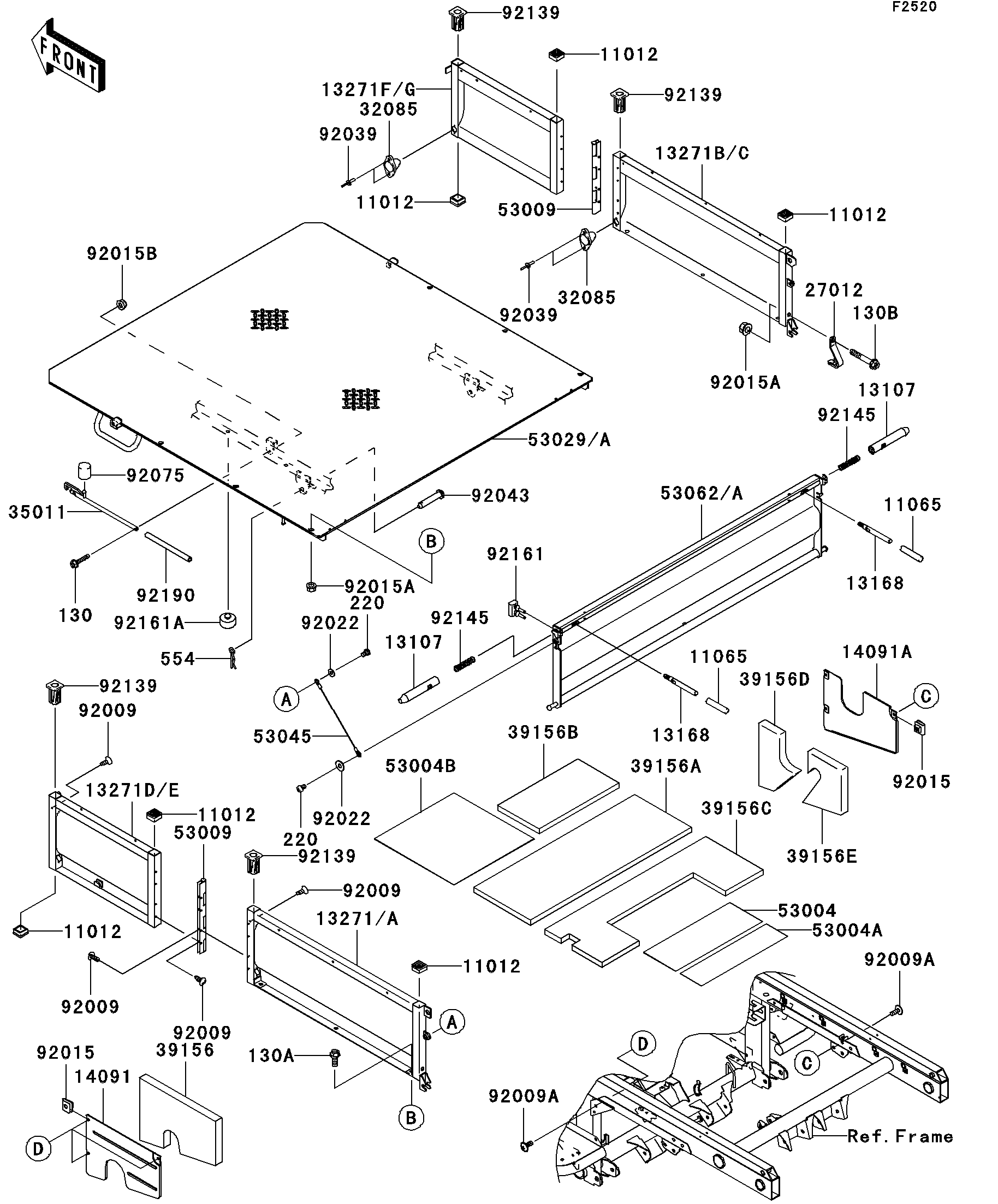

2008 Mule 3010 Trans4x4 Diesel - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11012
11012
11012
11012
11012
11012
11012
11012
11065
11065
11065
11065
13107
13107
13107
13107
13168
13168
13168
13168
13271
13271
13271A
13271A
13271B
13271B
13271C
13271C
13271D
13271D
13271E
13271E
13271F
13271F
13271G
13271G
14091
14091
14091A
14091A
27012
27012
32085
32085
32085
32085
35011
35011
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
53004
53004
53004A
53004A
53004B
53004B
53009
53009
53009
53009
53029
53029
53029A
53029A
53045
53045
53062
53062
53062A
53062A
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92022
92022
92022
92022
92039
92039
92039
92039
92043
92043
92075
92075
92139
92139
92139
92139
92139
92139
92139
92139
92145
92145
92145
92145
92161
92161
92161A
92161A
92190
92190
130
130
130A
130A
130B
130B
220
220
220
220
554
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1784 6
CAP 11065 11065-0126 2
SHAFT 13107 13107-0082 2
LEVER 13168 13168-0090 2
PLATE,SIDE,RR,LH,W.GREEN 13271 13271-7532-398 1
PLATE,SIDE,RR,LH,A.RED 13271A 13271-7532-467 1
PLATE,SIDE,RR,RH,W.GREEN 13271B 13271-7534-398 1
PLATE,SIDE,RR,RH,A.RED 13271C 13271-7534-467 1
PLATE,SIDE,FR,LH,W.GREEN 13271D 13271-7535-398 1
PLATE,SIDE,FR,LH,A.RED 13271E 13271-7535-467 1
PLATE,SIDE,FR,RH,W.GREEN 13271F 13271-7537-398 1
PLATE,SIDE,FR,RH,A.RED 13271G 13271-7537-467 1
COVER,ENCLOSURE,LH 14091 14091-7546 1
COVER,ENCLOSURE,RH 14091A 14091-7562 1
HOOK,TAIL GATE 27012 27012-0022 2
STOPPER 32085 32085-7501 4
STAY,CARRIER STOPPER 35011 35011-1648 1
PAD,ENCLOSURE COVER,LH 39156 39156-0007 1
PAD,CARRIER,MIDDLE 39156A 39156-0010 1
PAD,CARRIER,FR 39156B 39156-7504 1
PAD,CARRIER,RR 39156C 39156-7505 1
PAD,ENCLOSURE COVER,RH 39156D 39156-7507 1
PAD,ENCLOSURE COVER,RH 39156E 39156-7508 1
MAT,CARRIER,MIDDLE 53004 53004-0004 1
MAT,CARRIER,RR 53004A 53004-0005 1
MAT,CARRIER,FR 53004B 53004-7502 1
HINGE,CARRIER 53009 53009-7501 2
CARRIER,W.GREEN 53029 53029-7512-398 1
CARRIER,A.RED 53029A 53029-7512-467 1
HOOK-ASSY,TAIL GATE 53045 53045-0004 2
GATE-TAIL,W.GREEN 53062 53062-7503-398 1
GATE-TAIL,A.RED 53062A 53062-7503-467 1
SCREW,TAPPING,6X16 92009 92009-1166 20
SCREW,6X16 92009A 92009-1621 6
NUT,6MM 92015 92015-1094 6
NUT,FLANGED,8MM 92015A 92015-1408 8
NUT,LOCK,FLANGED,6MM 92015B 92015-1675 1
WASHER,7X18X1.2 92022 92022-1545 4
RIVET 92039 92039-1150 8
PIN,12X65 92043 92043-1428 2
DAMPER 92075 92075-1817 1
BUSHING,REAR SCREEN 92139 92139-7501 4
SPRING,TENSIONER 92145 92145-1215 2
DAMPER 92161 92161-0258 2
DAMPER 92161A 92161-7510 8
TUBE,13X16X200 92190 92190-1401 1
BOLT-FLANGED,6X30 130 130H0630 1
BOLT-FLANGED,8X20 130A 130J0820 6
BOLT-FLANGED,8X50 130B 130J0850 2
SCREW-PAN-CROSS,6X10 220 220F0610 4
PIN-SNAP,12MM 554 554A1200 2
