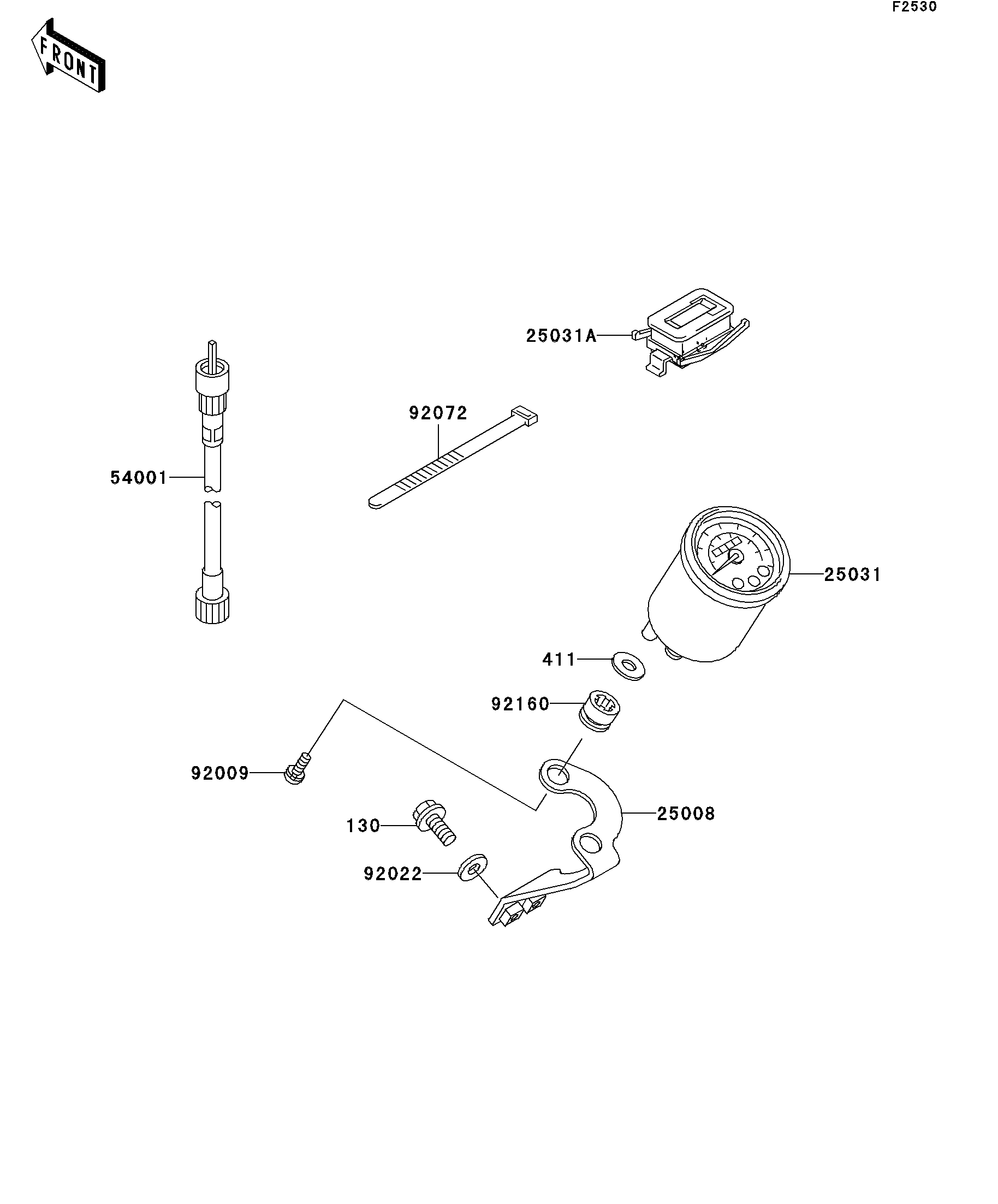

25008
25031
25031A
54001
92009
92022
92072
92160
130
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-METER 25008 25008-1228 1
METER-ASSY,MPH 25031 25031-1190 1
METER-ASSY,HOUR 25031A 25031-7506 1
CABLE-SPEEDMETER 54001 54001-7502 1
SCREW,5X12 92009 92009-3740 2
WASHER,6.5X16X1.0 92022 92022-1093 2
BAND,L=188 92072 92072-1239 1
DAMPER 92160 92160-1461 2
BOLT-FLANGED,6X14 130 130J0614 2
WASHER-PLAIN,8MM 411 411B0800 2
