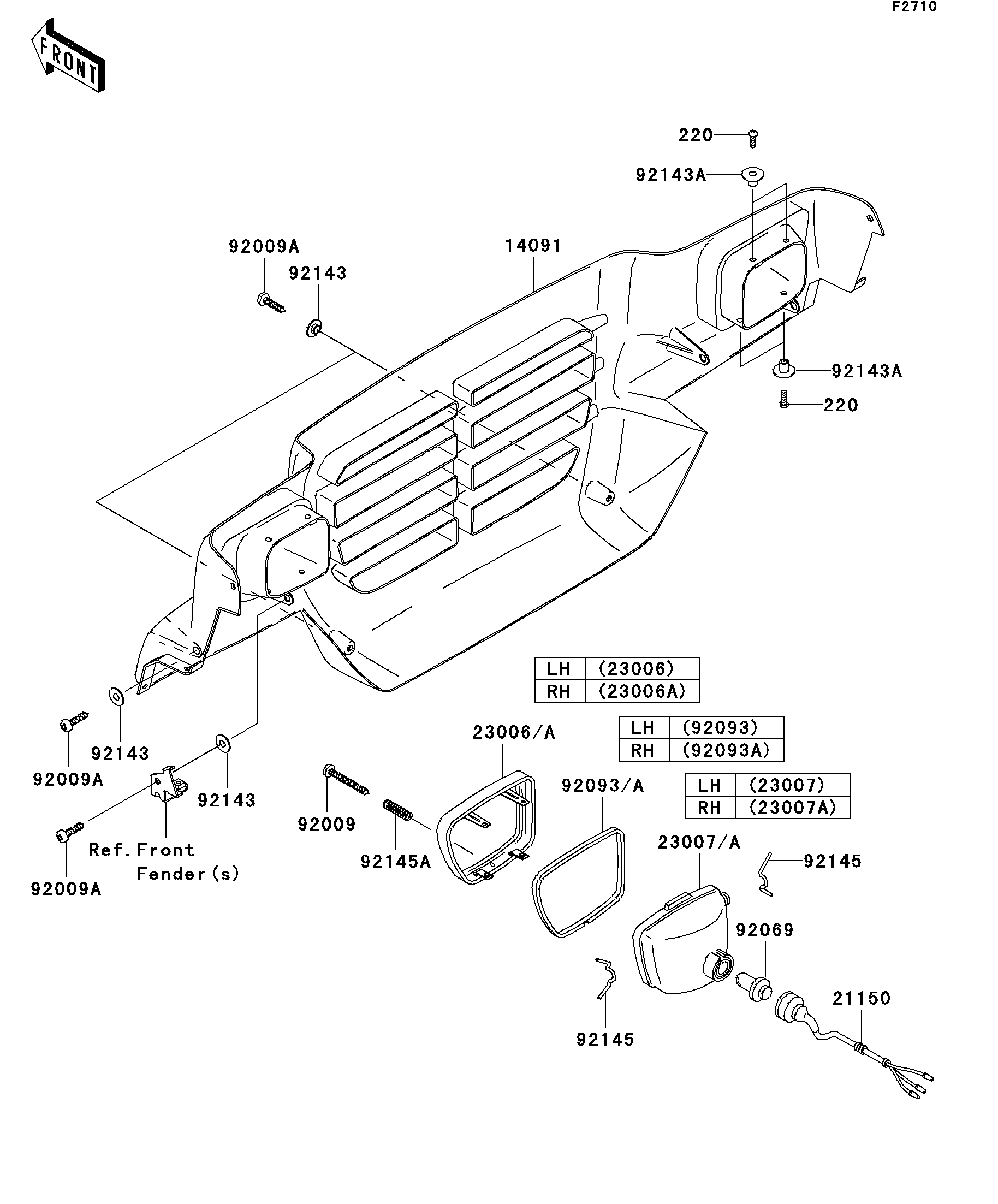

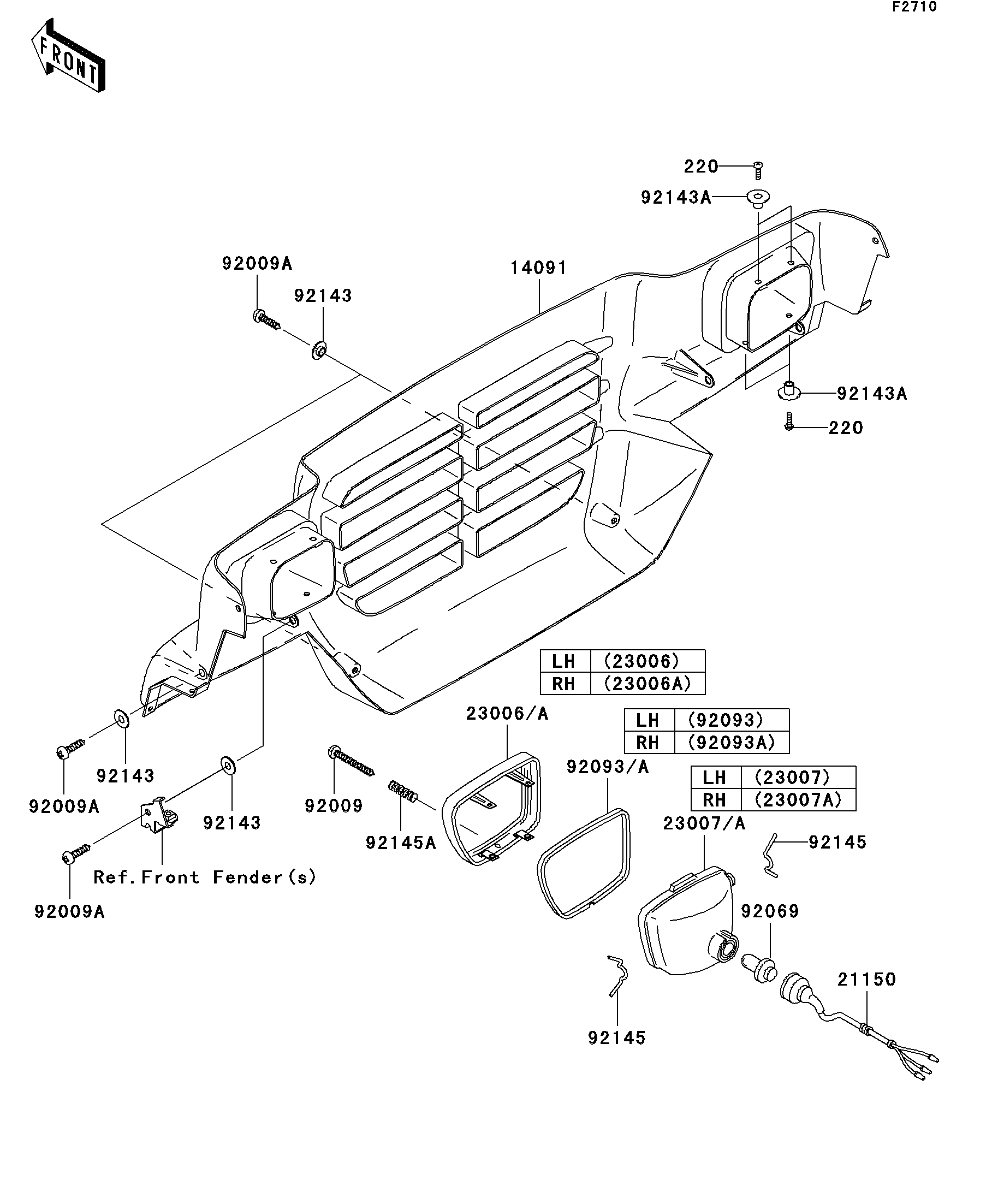

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FRONT GRIL,F.BLACK 14091 14091-7545-6Z 1
CORD-ASSY,HEAD LAMP 21150 21150-1060 2
RIM-LAMP,LH 23006 23006-1075 1
RIM-LAMP,RH 23006A 23006-1076 1
LENS-COMP,HEAD LAMP,LH 23007 23007-1354 1
LENS-COMP,HEAD LAMP,RH 23007A 23007-1355 1
SCREW,TAPPING,4X30 92009 92009-1139 2
SCREW,6X16 92009A 92009-1621 6
BULB,12V 30/30W 92069 92069-1080 2
SEAL,HEAD LAMP,LH 92093 92093-1481 1
SEAL,HEAD LAMP,RH 92093A 92093-1482 1
COLLAR 92143 92143-1087 6
COLLAR 92143A 92143-1234 8
SPRING 92145 92145-1190 4
SPRING 92145A 92145-1230 2
SCREW-PAN-CROSS,5X16 220 220F0516 8
