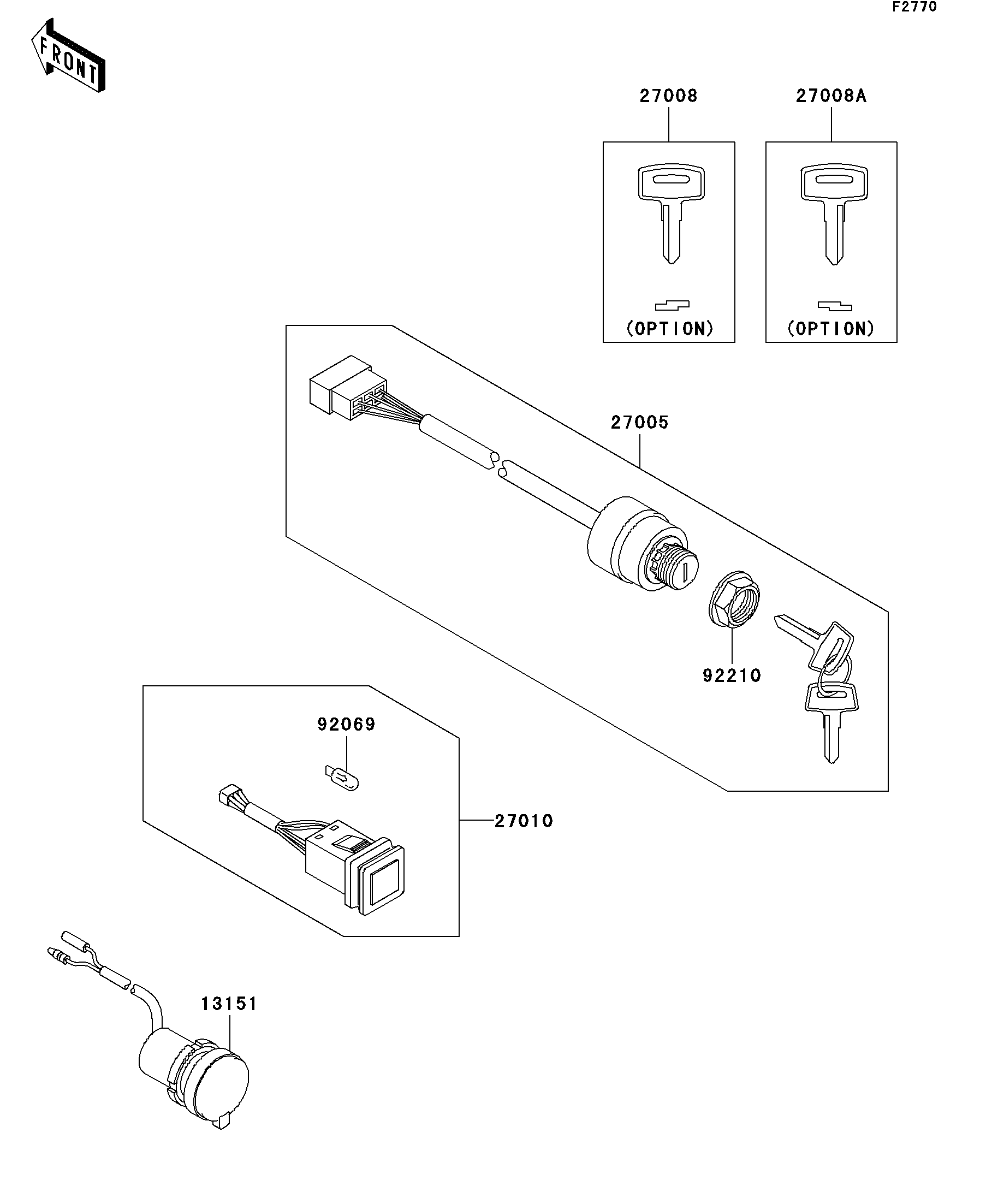

2008 Mule 3010 Trans4x4 Diesel - Ignition Switch

13151
27005
27008
27008A
27010
92069
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH-COMP,D.C.TERMINAL 13151 13151-0003 1
SWITCH-ASSY-IGNITION 27005 27005-1244 1
KEY-LOCK,BLANK 27008 27008-1153 1 (OPTION)
KEY-LOCK,BLANK 27008A 27008-1157 1 (OPTION)
SWITCH,HEAD LAMP 27010 27010-1498 1
BULB,12V 1.7W,T6.5 92069 92069-1118 1
NUT,IGNITION SWITCH 92210 92210-1264 1
