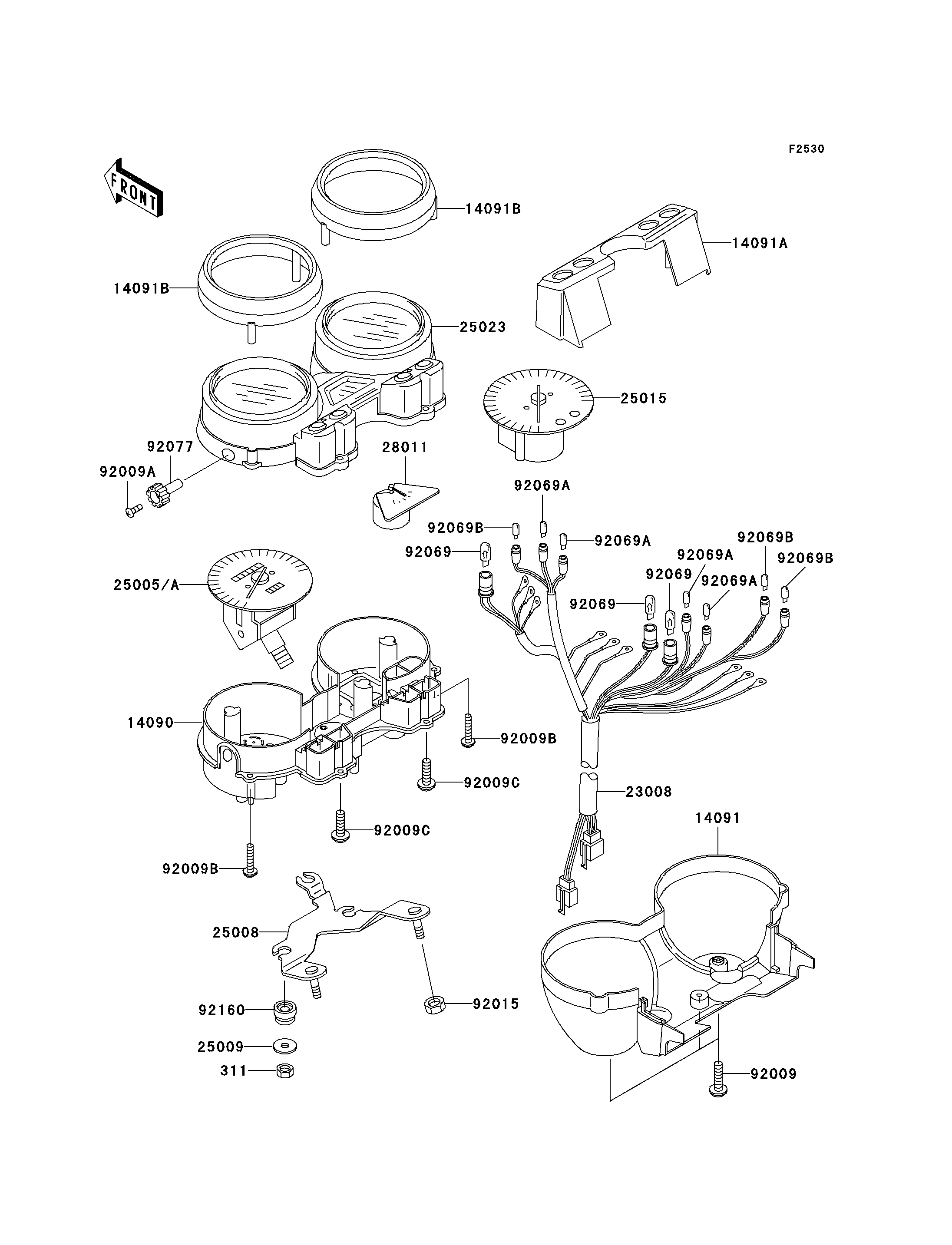

2002 ZRX1200R - Meter(s)

DOWNLOAD PDF
SELECT A NEW PART
311
14090
14091
14091A
14091B
14091B
23008
25008
25009
25015
25023
28011
92009
92009A
92009B
92009B
92009C
92009C
92015
92069
92069
92069
92069A
92069A
92069A
92069A
92069B
92069B
92069B
92077
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX 311 311C0500 3
COVER,METER HOUSING 14090 14090-1842 1
COVER,METER,LWR 14091 14091-1105 1
COVER,PILOT BOX,UPP 14091A 14091-1154 1
COVER,SPEEDO&TACHOMETER 14091B 14091-1326 2
SOCKET-ASSY,METER 23008 23008-1583 1
BRACKET-METER 25008 25008-1213 1
WASHER,5.2X16X1.2 25009 25009-004 3
TACHOMETER,X1000R/MIN 25015 25015-1364 1
COVER-METER CASE,UPP 25023 25023-1230 1
METER,FUEL 28011 28011-1216 1
SCREW,4X16,BLACK 92009 92009-1158 3
SCREW,2X6,BLACK 92009A 92009-1172 1
SCREW,TAPPING,3X16 92009B 92009-1391 4
SCREW,TAPPING,4X14 92009C 92009-1503 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
BULB,12V 1.7W,T10 92069 92069-1059 3
BULB,12V 3W,T6.5 92069A 92069-1068 4
BULB,12V 1.7W,T6.5 92069B 92069-1070 3
KNOB,METER 92077 92077-1073 1
DAMPER 92160 92160-1178 3
SPEEDOMETER,KPH 25005 25005-1691 1 CN
SPEEDOMETER,MPH 25005A 25005-1692 1 CAUS
