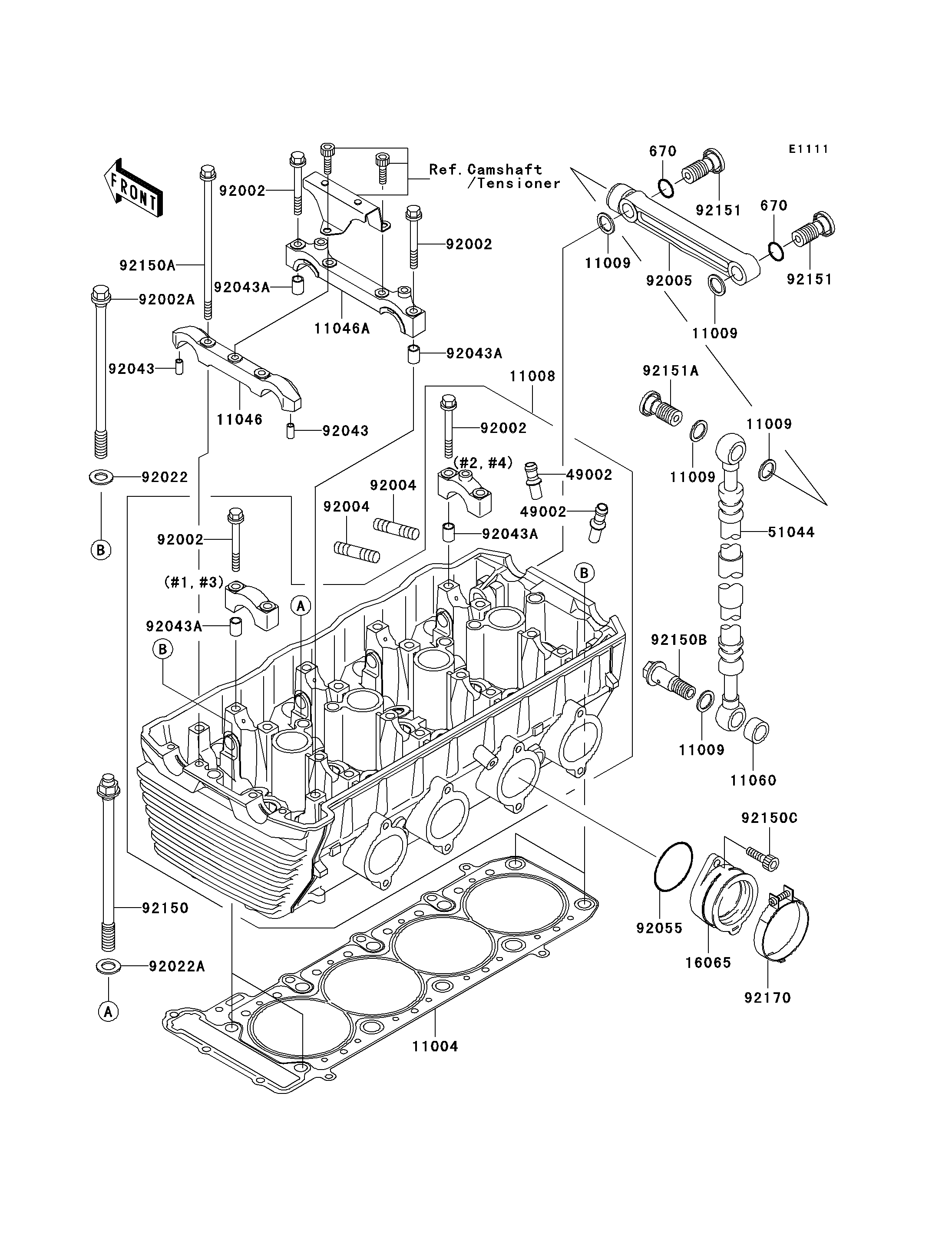

2004 ZRX1200R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
670
670
11004
11008
11009
11009
11009
11009
11009
11046
11046A
11060
16065
49002
49002
51044
92002
92002
92002
92002
92002A
92004
92004
92005
92022
92022A
92043
92043
92043A
92043A
92043A
92043A
92055
92150
92150A
92150B
92150C
92151
92151
92151A
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,15MM 670 670B2015 2
GASKET-HEAD 11004 11004-1377 1
HEAD-COMP-CYLINDER 11008 11008-1404 1
GASKET,14X19.5X1.4 11009 11009-1461 5
BRACKET,CAMSHAFT,#9 11046 11046-1150 1
BRACKET,CAMSHAFT,#10 11046A 11046-1151 1
GASKET 11060 11060-1369 1
HOLDER-CARBURETOR 16065 16065-1307 4
GUIDE-VALVE 49002 49002-1097 AR
TUBE-ASSY,OIL 51044 51044-1198 1
BOLT,6X40 92002 92002-1756 18
BOLT,10X164 92002A 92002-1943 4
STUD,8X22 92004 92004-1181 8
FITTING 92005 92005-1328 1
WASHER,10.5X20X1.6 92022 92022-1591 4
WASHER,11.5X20.5X1.6 92022A 92022-1720 6
PIN,4.2X6X12 92043 92043-1262 2
PIN,6.2X8X14 92043A 92043-1263 18
RING-O,43.7X1.9 92055 92055-1401 4
BOLT,11X164 92150 92150-1075 6
BOLT,6X148 92150A 92150-1076 2
BOLT,BANJO,12X40.5 92150B 92150-1077 1
BOLT,SOCKET,6X16 92150C 92150-1655 8
BOLT 92151 92151-1147 2
BOLT 92151A 92151-1148 1
CLAMP 92170 92170-1066 4
