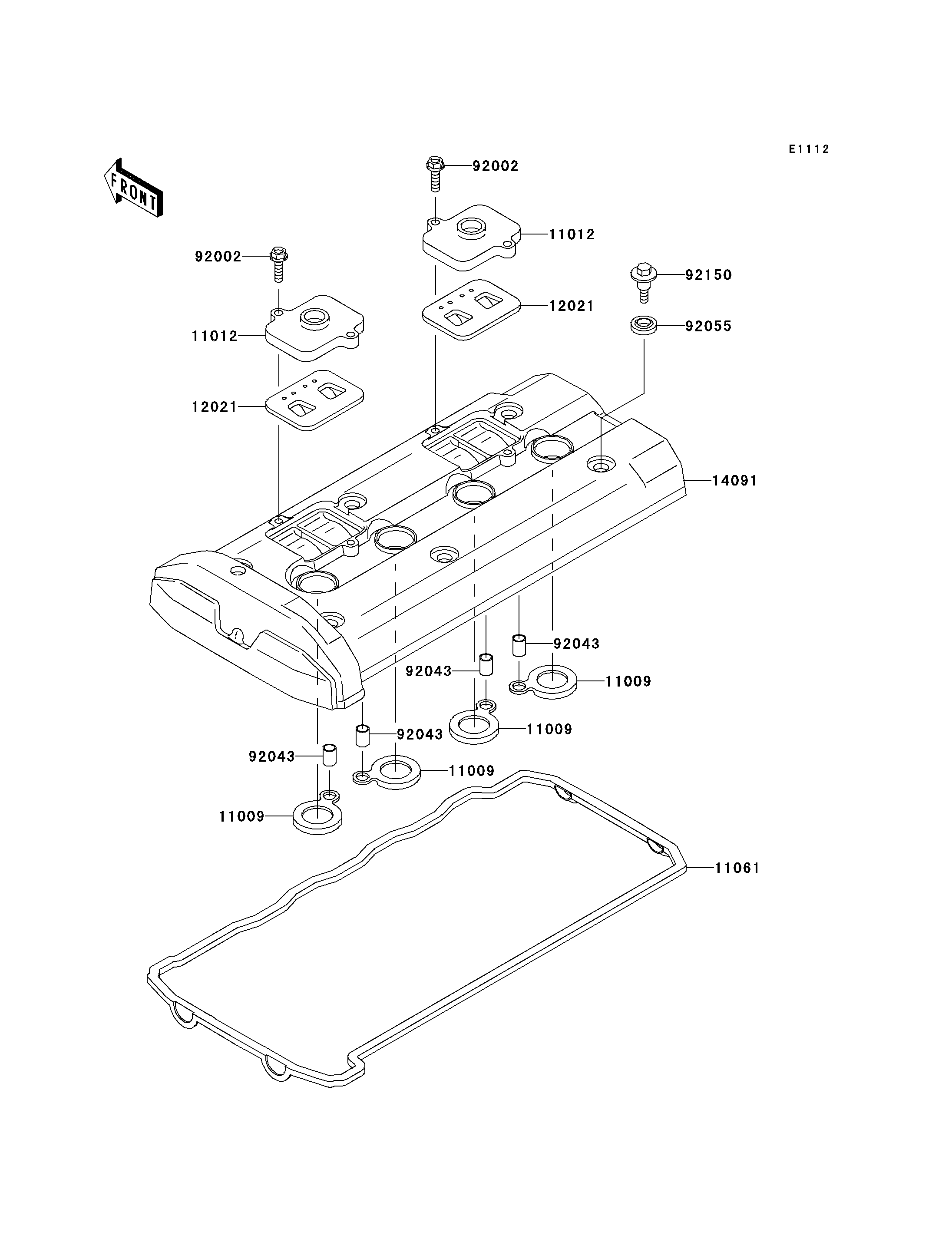

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11009
11009
11009
11009
11012
11012
11061
12021
12021
14091
92002
92002
92043
92043
92043
92043
92055
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,SPARK PLUG | 11009 | 11009-1725 | 4 | ||
CAP,REED VALVE | 11012 | 11012-1532 | 2 | ||
GASKET,CYLINDER HEAD | 11061 | 11061-1059 | 1 | ||
VALVE-ASSY-REED | 12021 | 12021-1119 | 2 | ||
COVER,HEAD | 14091 | 14091-0016 | 1 | ||
BOLT,6X22 | 92002 | 92002-1068 | 4 | ||
PIN,8.2X10X14 | 92043 | 92043-1264 | 4 | ||
RING-O,HEAD COVER BOLT | 92055 | 92055-1352 | 6 | ||
BOLT,FLANGED,M6X23.5 | 92150 | 92150-1447 | 6 |
