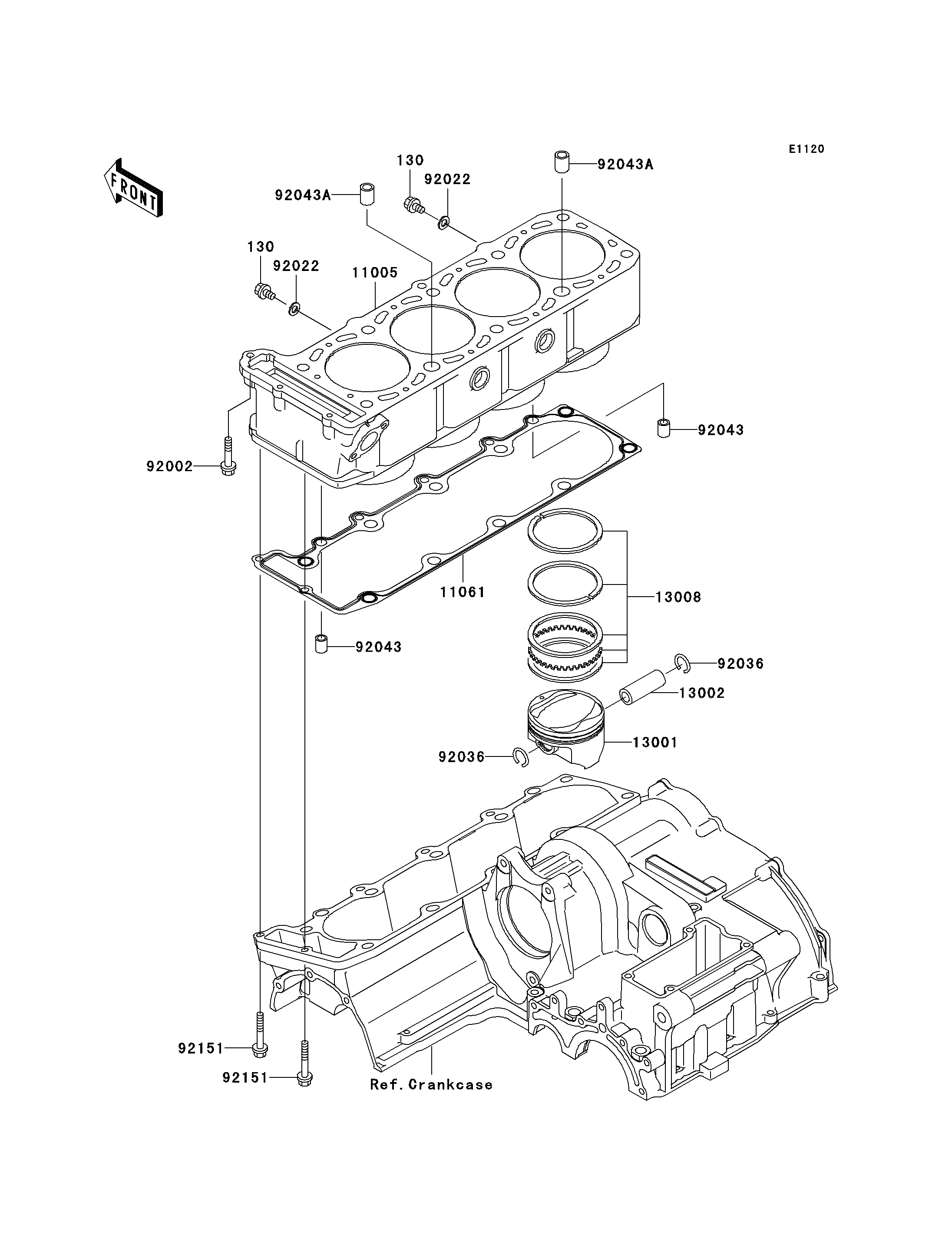

Parts Diagrams |
130
130
11005
11061
13001
13002
13008
92002
92022
92022
92036
92036
92043
92043
92043A
92043A
92151
92151
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130Y0610 | 2 | ||
CYLINDER-ENGINE | 11005 | 11005-1945 | 1 | ||
GASKET,CYLINDER | 11061 | 11061-1060 | 1 | ||
PISTON-ENGINE | 13001 | 13001-1592 | 4 | ||
PIN-PISTON | 13002 | 13002-1121 | 4 | ||
RING-SET-PISTON | 13008 | 13008-1202 | 4 | ||
BOLT,6X30 | 92002 | 92002-1138 | 1 | ||
WASHER,6.2X11X1 | 92022 | 92022-304 | 2 | ||
RING-SNAP,PISTON PIN | 92036 | 92036-008 | 8 | ||
PIN,8.2X10X14 | 92043 | 92043-1264 | 2 | ||
PIN,11.5X14X14 | 92043A | 92043-1279 | 2 | ||
BOLT,6X38 | 92151 | 92151-1904 | 2 |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CYLINDER-ENGINE | |
REF # | 11005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,CYLINDER | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-ENGINE | |
REF # | 13001 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN-PISTON | |
REF # | 13002 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-SET-PISTON | |
REF # | 13008 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,6X30 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.2X11X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP,PISTON PIN | |
REF # | 92036 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PIN,8.2X10X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,11.5X14X14 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X38 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
