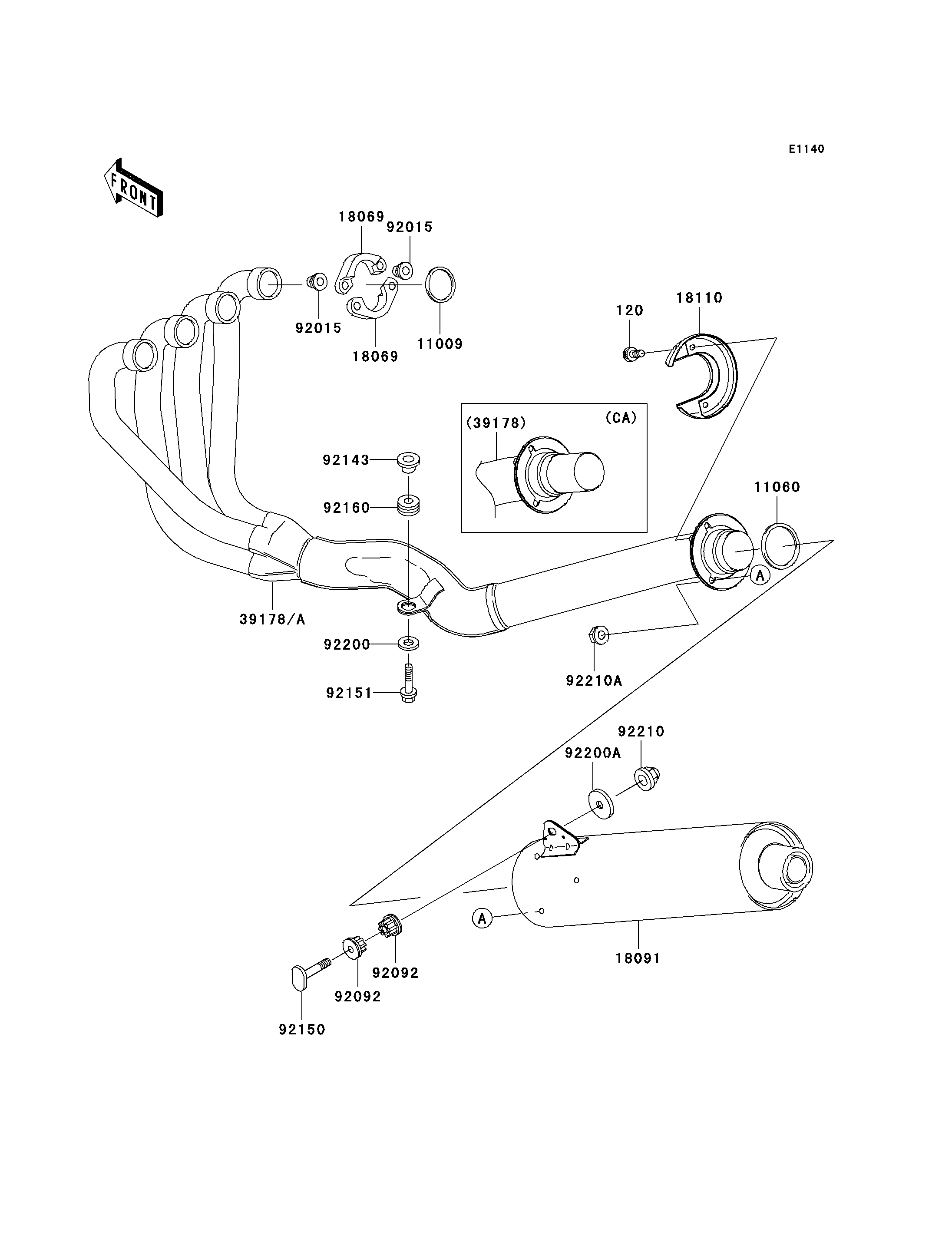

Parts Diagrams |
120
11009
11060
18069
18069
18091
18110
92015
92015
92092
92092
92143
92150
92151
92160
92200
92200A
92210
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120R0610 | 2 | ||
GASKET,EXHAUST PIPE HOLDER | 11009 | 11009-1840 | 4 | ||
GASKET,MUFFLER CONNECTING | 11060 | 11060-1213 | 1 | ||
HOLDER-EXHAUST PIPE | 18069 | 18069-1139 | 8 | ||
BODY-COMP-MUFFLER | 18091 | 18091-0078 | 1 | ||
BODY END-MUFFLER | 18110 | 18110-1176 | 1 | ||
NUT,LOCK,8MM | 92015 | 92015-1380 | 8 | ||
BUSHING-RUBBER,MUFFLER | 92092 | 92092-1013 | 2 | ||
COLLAR | 92143 | 92143-1709 | 1 | ||
BOLT,10X55 | 92150 | 92150-1792 | 1 | ||
BOLT,8X35 | 92151 | 92151-1208 | 1 | ||
DAMPER,MUFFLER | 92160 | 92160-1543 | 1 | ||
WASHER,9X28X2.3 | 92200 | 92200-1374 | 1 | ||
WASHER,10.5X25X2.0 | 92200A | 92200-1377 | 1 | ||
NUT,CAP,10MM | 92210 | 92210-1121 | 1 | ||
NUT | 92210A | 92210-1312 | 3 | ||
MANIFOLD-COMP-EXHAUST | 39178 | 39178-0035 | 1 | CA | |
MANIFOLD-COMP-EXHAUST | 39178A | 39178-0037 | 1 | CNUS |
BOLT-SOCKET | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST PIPE HOLDER | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GASKET,MUFFLER CONNECTING | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-EXHAUST PIPE | |
REF # | 18069 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BODY-COMP-MUFFLER | |
REF # | 18091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY END-MUFFLER | |
REF # | 18110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BUSHING-RUBBER,MUFFLER | |
REF # | 92092 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,10X55 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X35 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,MUFFLER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,9X28X2.3 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,10.5X25X2.0 | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,CAP,10MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
MANIFOLD-COMP-EXHAUST | |
REF # | 39178 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
MANIFOLD-COMP-EXHAUST | |
REF # | 39178A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CNUS |
REMARKS |
