Parts Diagrams |

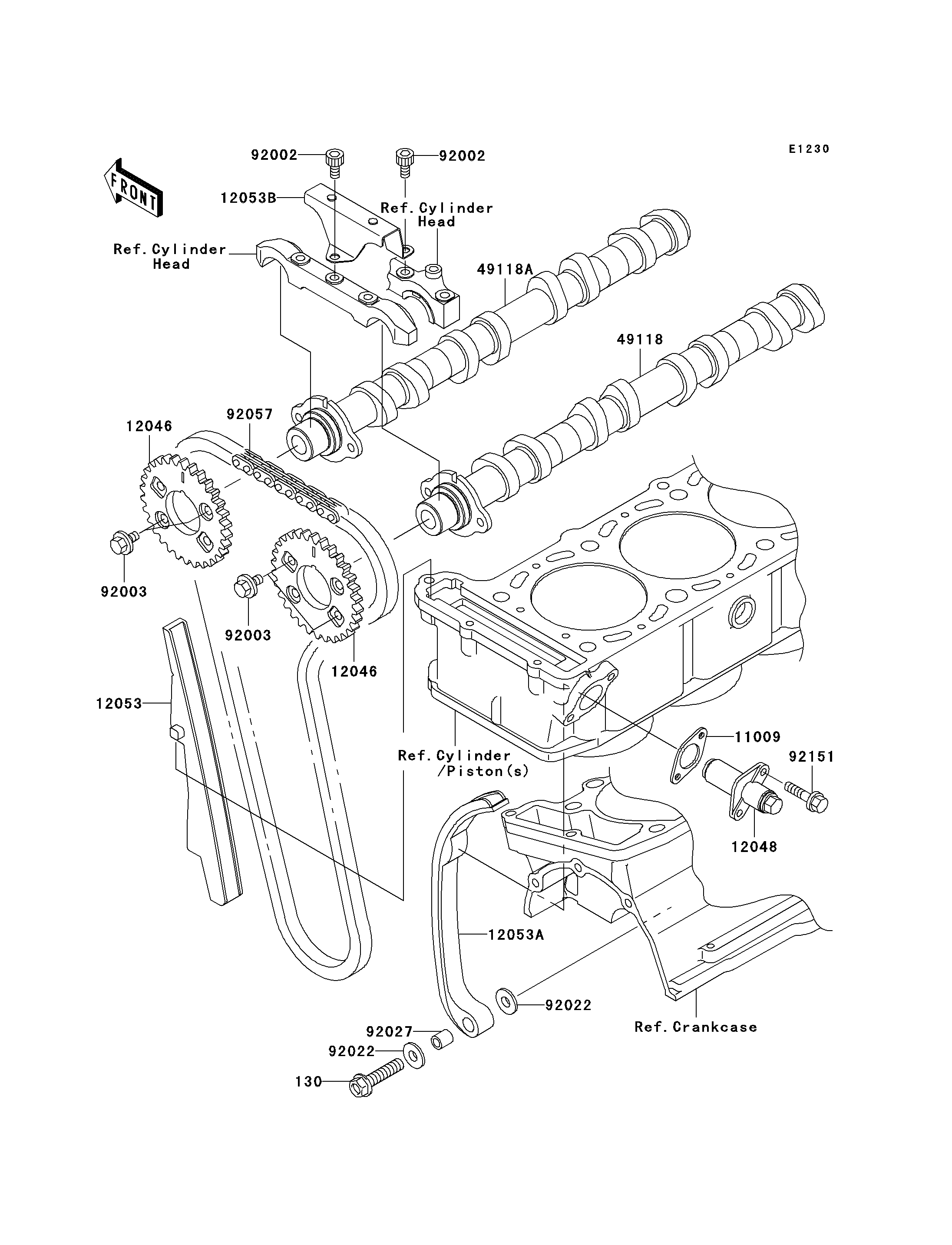

130
11009
12046
12046
12048
12053
12053A
12053B
49118
49118A
92002
92002
92003
92003
92022
92022
92027
92057
92151
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X35 | 130 | 130G0835 | 1 | ||
| GASKET,TENSIONER | 11009 | 11009-1858 | 1 | ||
| SPROCKET,CAMSHAFT,34T | 12046 | 12046-1112 | 2 | ||
| TENSIONER-ASSY | 12048 | 12048-1113 | 1 | ||
| GUIDE-CHAIN,FR | 12053 | 12053-1241 | 1 | ||
| GUIDE-CHAIN,RR | 12053A | 12053-1242 | 1 | ||
| GUIDE-CHAIN,UPP | 12053B | 12053-1243 | 1 | ||
| CAMSHAFT-COMP,INTAKE | 49118 | 49118-1202 | 1 | ||
| CAMSHAFT-COMP,EXHAUST | 49118A | 49118-1203 | 1 | ||
| BOLT,SOCKET,6X12 | 92002 | 92002-1796 | 3 | ||
| BOLT,FLANGED,6X11 | 92003 | 92003-208 | 4 | ||
| WASHER,8.2X19X2 | 92022 | 92022-1533 | 2 | ||
| COLLAR,8.2X10.5X15.6 | 92027 | 92027-1763 | 1 | ||
| CHAIN,CAMSHAFT | 92057 | 92057-1255 | 1 | ||
| BOLT,6X25 | 92151 | 92151-1190 | 2 |
| BOLT-FLANGED,8X35 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,TENSIONER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,CAMSHAFT,34T | |
| REF # | 12046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TENSIONER-ASSY | |
| REF # | 12048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,FR | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,RR | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,UPP | |
| REF # | 12053B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAMSHAFT-COMP,INTAKE | |
| REF # | 49118 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAMSHAFT-COMP,EXHAUST | |
| REF # | 49118A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X12 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X11 | |
| REF # | 92003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.2X19X2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,8.2X10.5X15.6 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,CAMSHAFT | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
