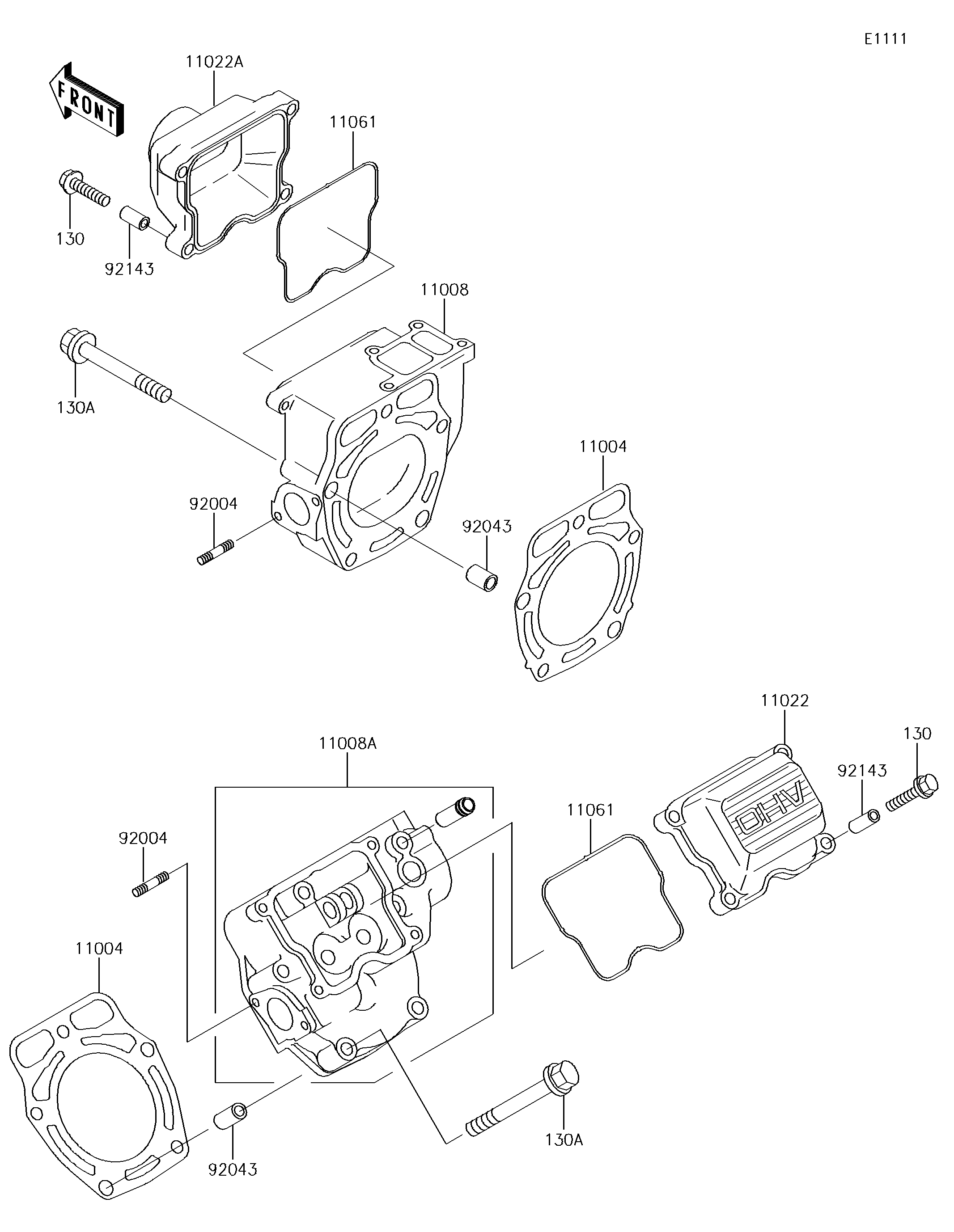

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET-HEAD | 11004 | 11004-2107 | 2 | ||
| HEAD-COMP-CYLINDER,#1 | 11008 | 11008-0820 | 1 | ||
| HEAD-COMP-CYLINDER,#2 | 11008A | 11008-6046 | 1 | ||
| CASE-ROCKER | 11022 | 11022-2056 | 1 | ||
| CASE-ROCKER | 11022A | 11022-2068 | 1 | ||
| GASKET,ROCKER CASE | 11061 | 11061-2182 | 2 | ||
| STUD,6X20 | 92004 | 92004-2142 | 4 | ||
| PIN,DOWEL,10X14 | 92043 | 92043-1037 | 4 | ||
| COLLAR | 92143 | 92143-2010 | 8 | ||
| BOLT-FLANGED,6X25 | 130 | 130BA0625 | 8 | ||
| BOLT-FLANGED,8X65 | 130A | 130BA0865 | 10 |
