Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11010
11013
11061
14069
14073
14073A
14073A
14073B
39145
52005
92005
92022
92037
92037A
92037B
92152
92170
92170
92170A
92170A
92170A
92170A
92170A
92170A
92171
92171
92192
92192A
130
130A
130A

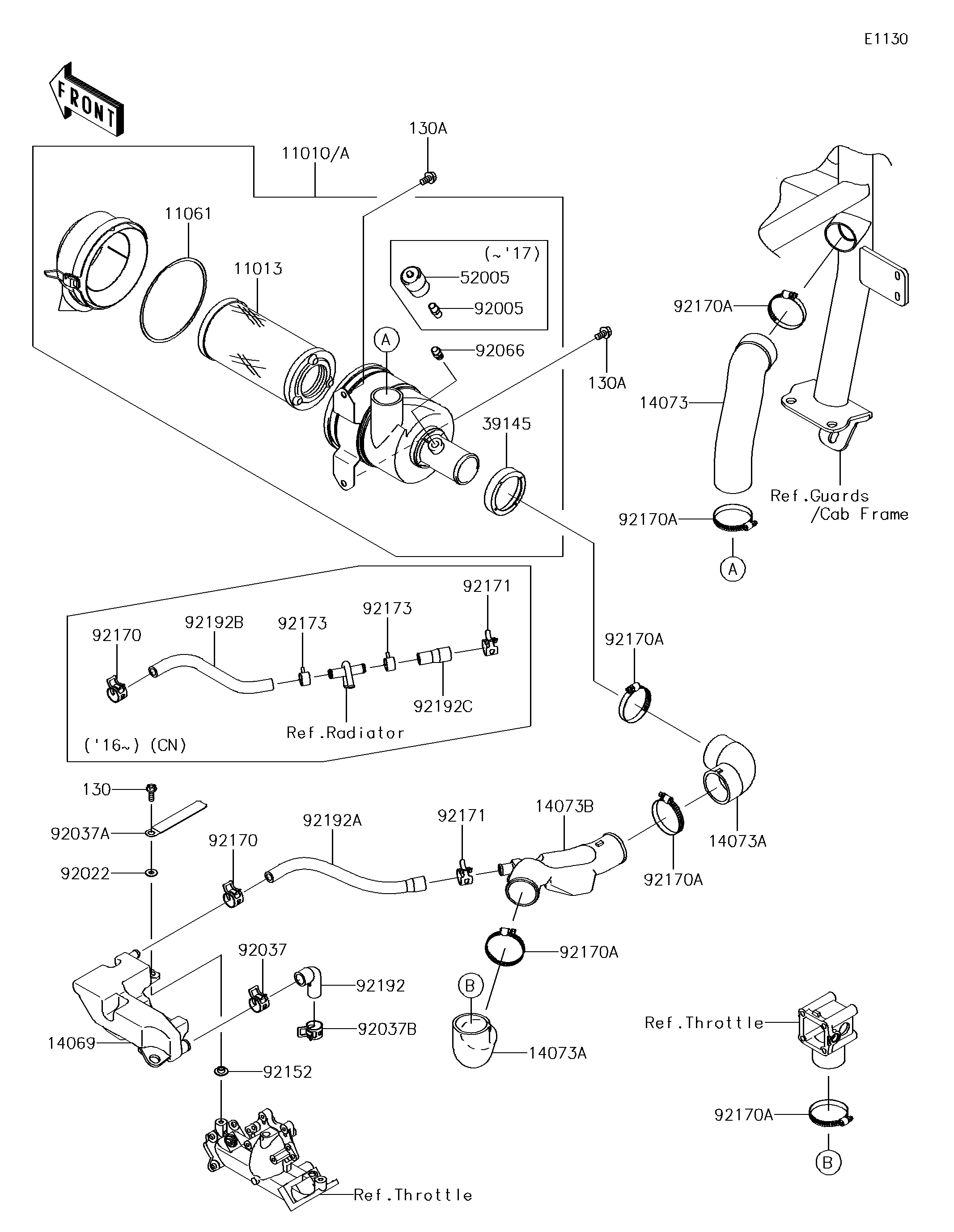

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FILTER-ASSY-AIR | 11010 | 11010-0177 | 1 | ||
ELEMENT-AIR FILTER | 11013 | 11013-1290 | 1 | ||
GASKET,AIR FILTER | 11061 | 11061-1078 | 1 | ||
BREATHER | 14069 | 14069-0018 | 1 | ||
DUCT,RR BAR-A/C | 14073 | 14073-0236 | 1 | ||
DUCT | 14073A | 14073-0773 | 2 | ||
DUCT | 14073B | 14073-0784 | 1 | ||
TRIM-SEAL | 39145 | 39145-1133 | 1 | ||
GAUGE,AIR | 52005 | 52005-7502 | 1 | ||
FITTING,AIR FILTER | 92005 | 92005-1386 | 1 | ||
WASHER,6.5X16X1.0 | 92022 | 92022-1093 | 1 | ||
CLAMP,HOSE CLIP | 92037 | 92037-1460 | 1 | ||
CLAMP,HARNESS,L=100 | 92037A | 92037-1636 | 1 | ||
CLAMP | 92037B | 92037-1678 | 1 | ||
COLLAR | 92152 | 92152-2069 | 1 | ||
CLAMP | 92170 | 92170-1491 | 1 | ||
CLAMP | 92170A | 92170-1674 | 6 | ||
CLAMP,18.8MM | 92171 | 92171-2056 | 1 | ||
TUBE,CRANKCASE-BREATHER | 92192 | 92192-1285 | 1 | ||
TUBE,BREATHER-INTAKE DUCT | 92192A | 92192-1855 | 1 | _________________________________________US | |
BOLT-FLANGED,6X18 | 130 | 130BA0618 | 1 | ||
BOLT-FLANGED,8X14 | 130A | 130BB0814 | 2 |
