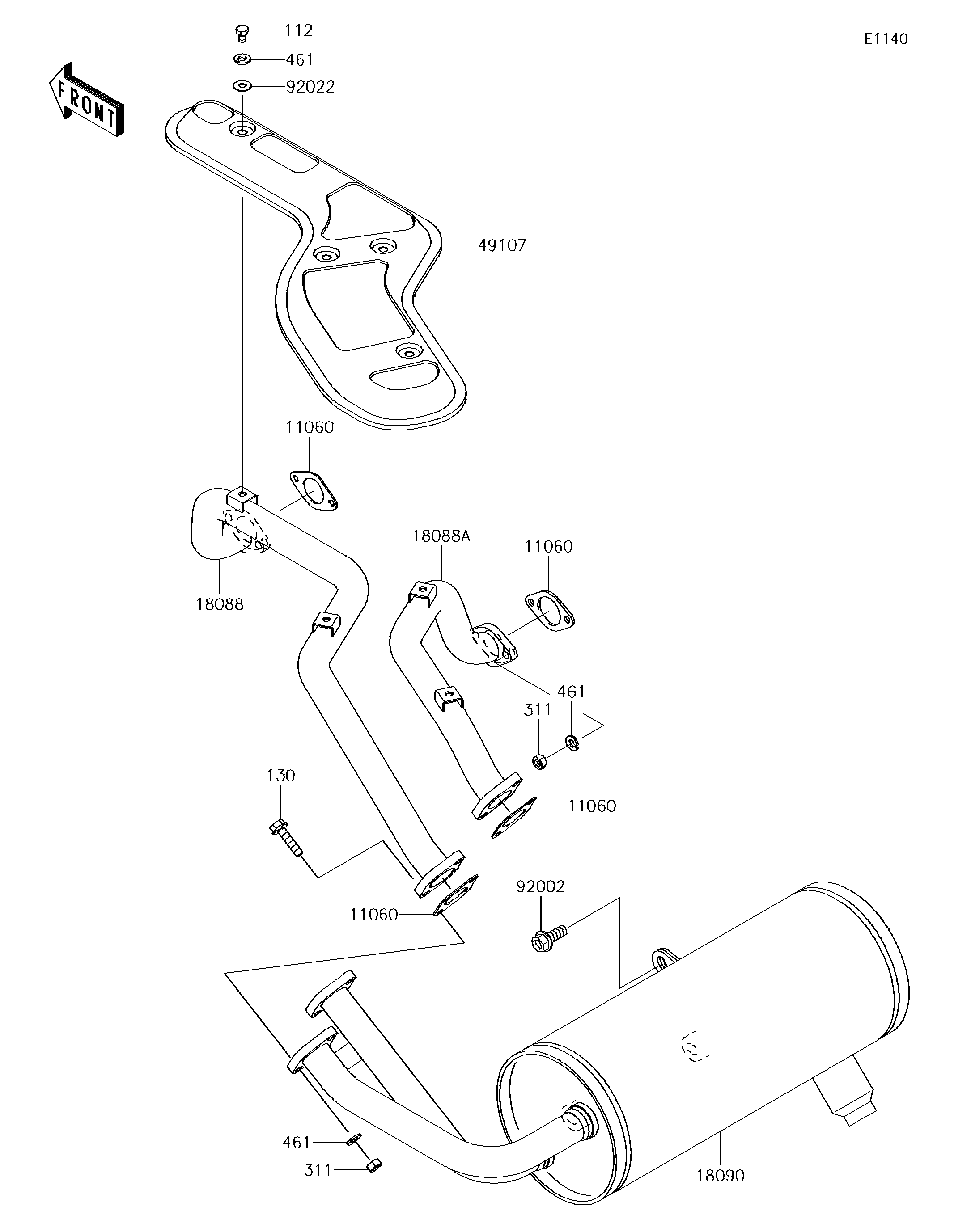

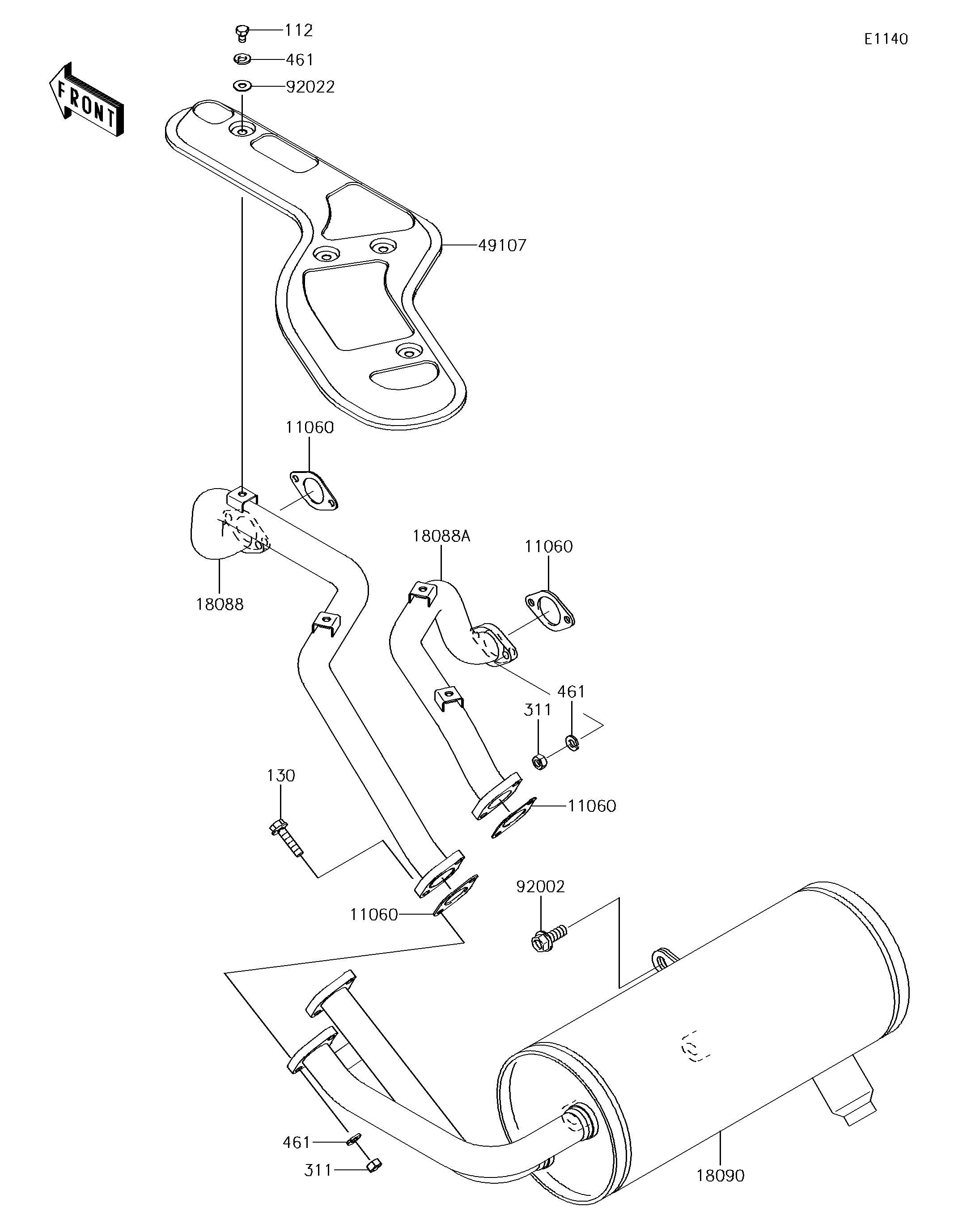

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11060 11060-2079 4
PIPE-EXHAUST,FR 18088 18088-0518 1
PIPE-EXHAUST,RR 18088A 18088-0519 1
BODY-COMP-MUFFLER 18090 18090-1912 1
COVER-EXHAUST PIPE 49107 49107-1211 1
BOLT,8X20 92002 92002-1250 3
WASHER,6.5X16X1.0 92022 92022-1093 4
BOLT-UPSET,6X10 112 112BB0610 4
BOLT-FLANGED,6X25 130 130BA0625 4
NUT-HEX,6MM 311 311BA0600 8
WASHER-SPRING,6MM 461 461DA0600 12
