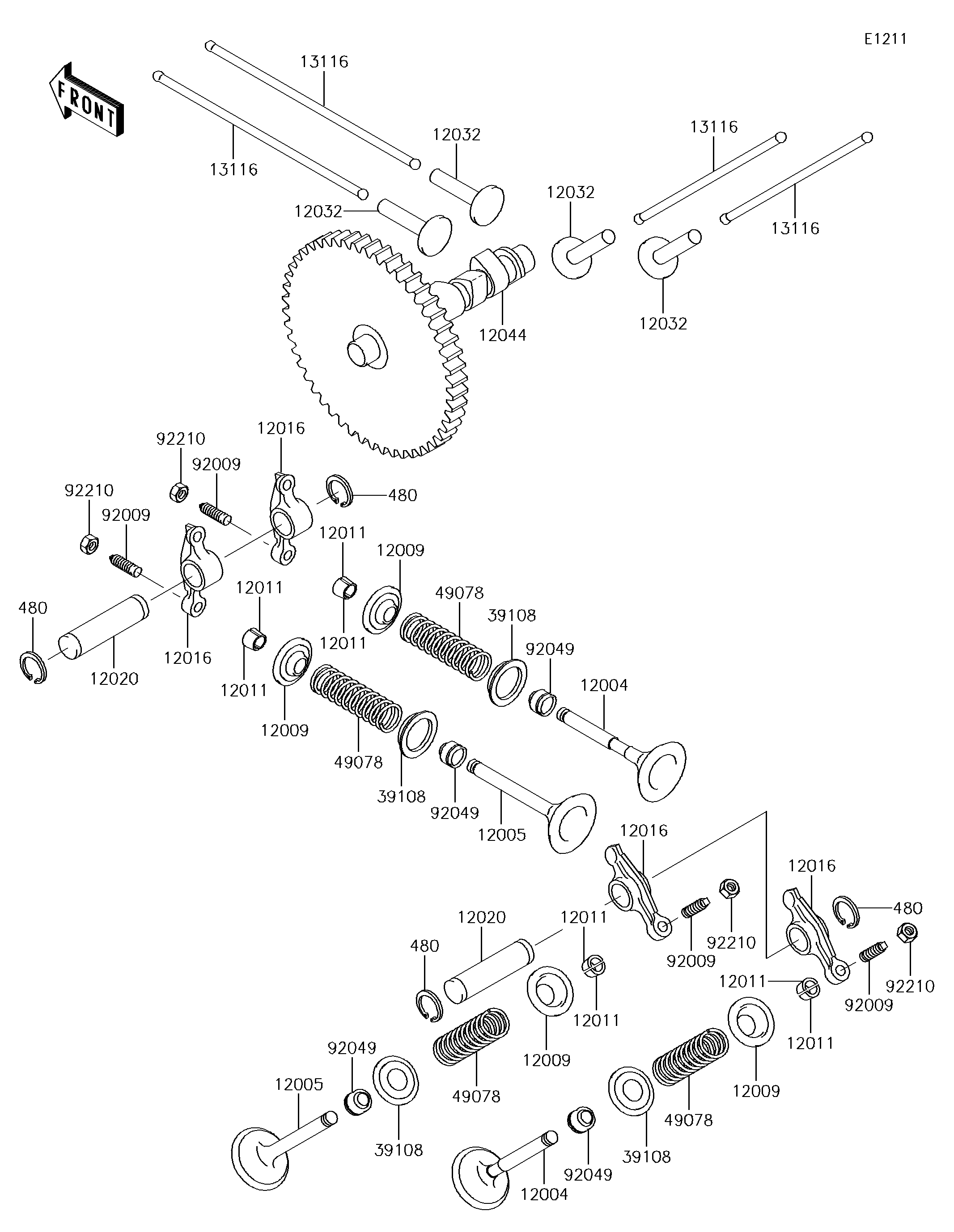

2014 MULE™ 4010 4x4 - Valve(s)/Camshaft(s)
12004
12004
12005
12005
12009
12009
12009
12009
12011
12011
12011
12011
12011
12011
12011
12011
12016
12016
12016
12016
12020
12020
12032
12032
12032
12032
12044
13116
13116
13116
13116
39108
39108
39108
39108
49078
49078
49078
49078
92009
92009
92009
92009
92049
92049
92049
92049
92210
92210
92210
92210
480
480
480
480
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE-INTAKE | 12004 | 12004-2115 | 2 | ||
| VALVE-EXHAUST | 12005 | 12005-2093 | 2 | ||
| RETAINER-VALVE SPRING | 12009 | 12009-2067 | 4 | ||
| COLLET | 12011 | 12011-2056 | 8 | ||
| ARM-ROCKER | 12016 | 12016-2056 | 4 | ||
| SHAFT-ROCKER | 12020 | 12020-2059 | 2 | ||
| TAPPET | 12032 | 12032-2064 | 4 | ||
| CAMSHAFT-VALVE | 12044 | 12044-0803 | 1 | ||
| ROD-PUSH | 13116 | 13116-2057 | 4 | ||
| RETAINER-SPRING | 39108 | 39108-2057 | 4 | ||
| SPRING-ENGINE VALVE | 49078 | 49078-2082 | 4 | ||
| SCREW,VALVE ADJUST | 92009 | 92009-1109 | 4 | ||
| SEAL-OIL | 92049 | 92049-2109 | 4 | ||
| NUT,VALVE ADJUST LOCK | 92210 | 92210-1491 | 4 | ||
| CIRCLIP-TYPE-C,12MM | 480 | 480J1200 | 4 |
