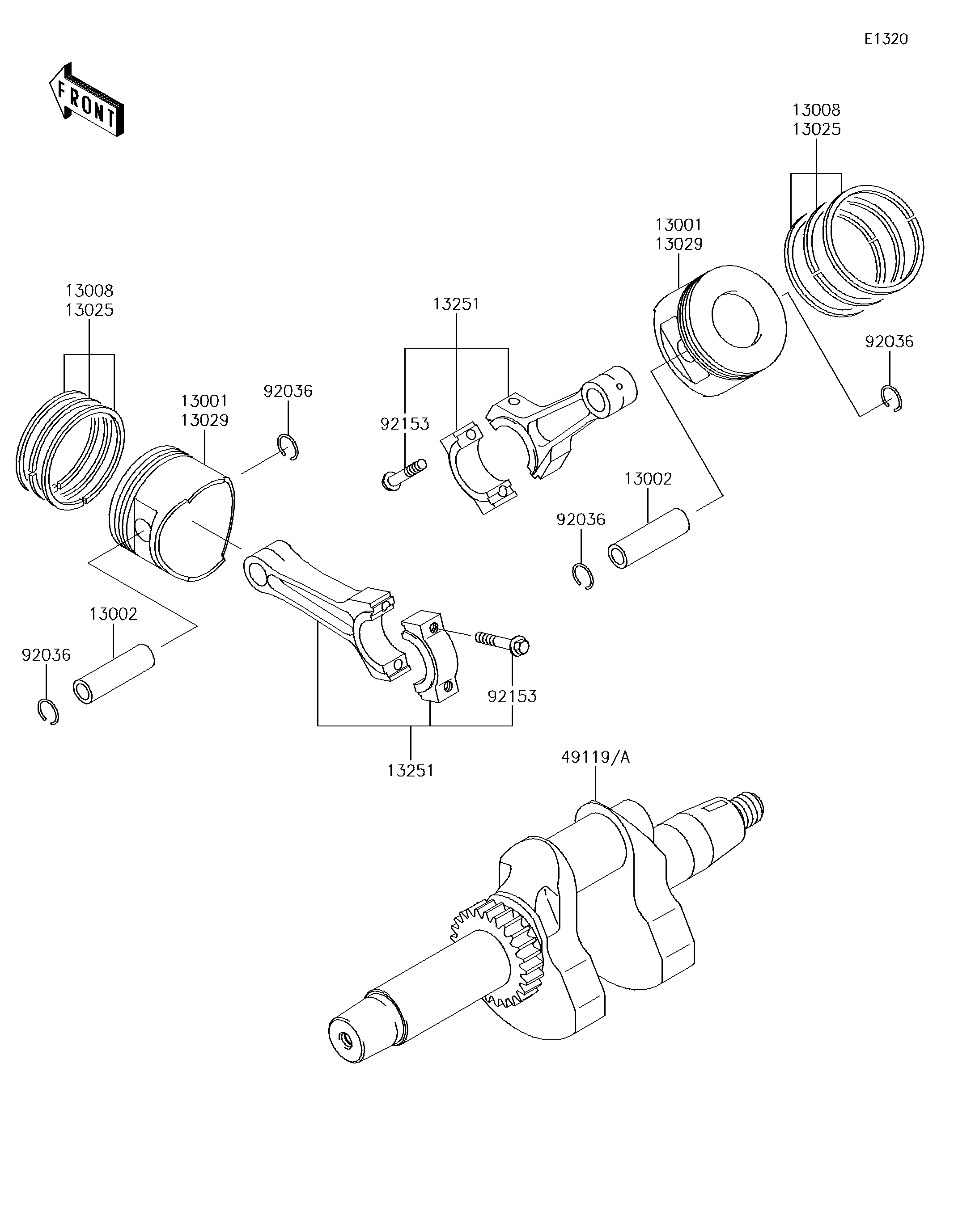

2014 MULE™ 4010 4x4 - Crankshaft/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
13001
13001
13002
13002
13008
13008
13025
13025
13029
13029
13251
13251
49119A
92036
92036
92036
92036
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE,STD 13001 13001-2210 2
PIN-PISTON 13002 13002-1013 2
RING-SET-PISTON,STD 13008 13008-6025 2
RING-SET-PISTON L,0.50 13025 13025-6008 AR
PISTON-ENGINE L,0.50 13029 13029-0033 AR
ROD-ASSY-CONNECTING 13251 13251-0034 2
CRANKSHAFT-ASSY 49119A 49119-2200 1
RING-SNAP,PISTON PIN 92036 92036-021 4
BOLT,7X35.2 92153 92153-2054 4
