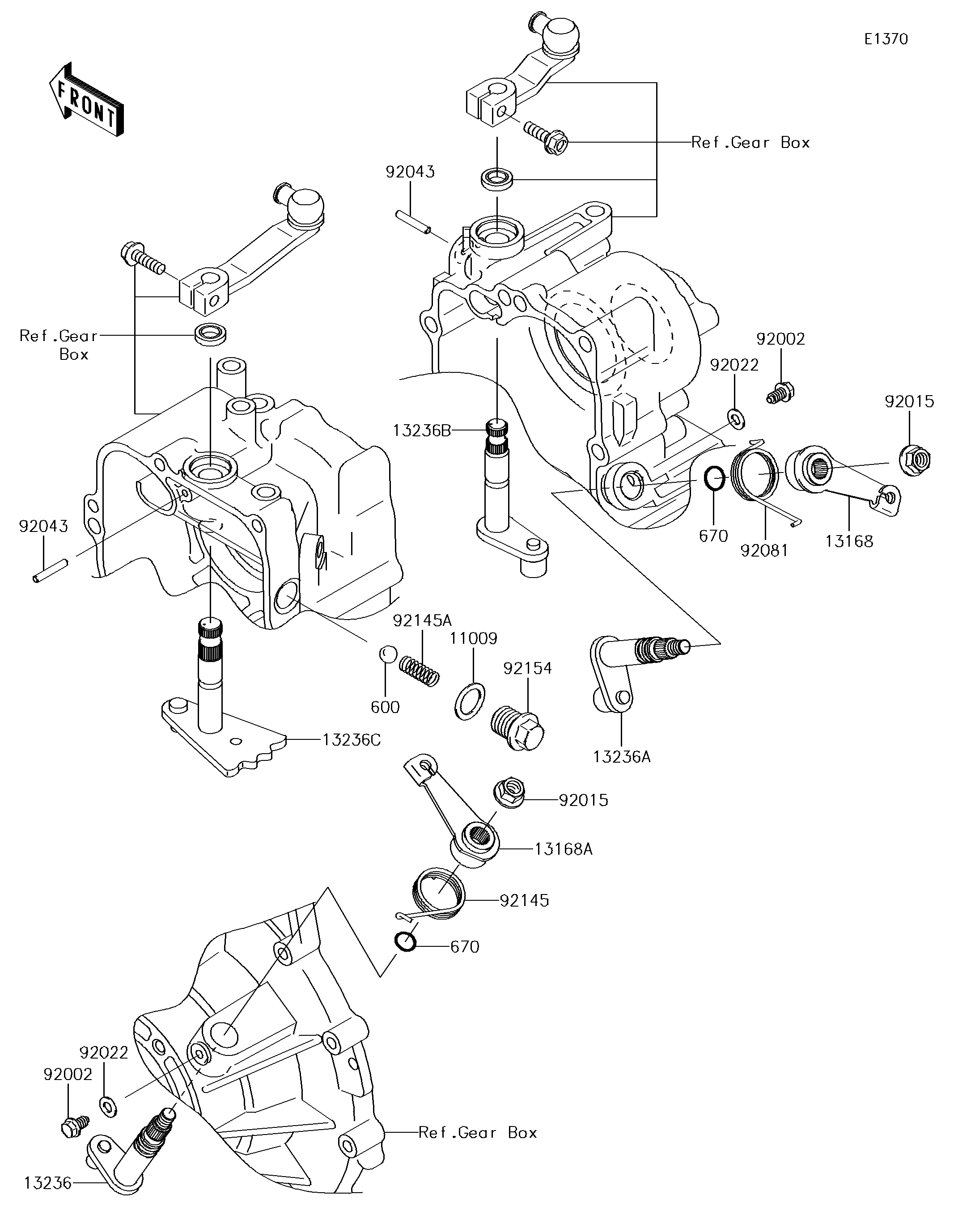

2014 MULE™ 4010 4x4 - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
11009
13168
13168A
13236
13236A
13236B
13236C
92002
92002
92015
92015
92022
92022
92043
92043
92081
92145
92145A
92154
600
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,15.5X22X1 11009 11009-1008 1
LEVER 13168 13168-1268 1
LEVER,DIFF LOCK 13168A 13168-1523 1
LEVER-COMP,DIFF LOCK 13236 13236-1219 1
LEVER-COMP,CHANGE,2WD/4WD 13236A 13236-1247 1
LEVER-COMP,HI/LOW 13236B 13236-1360 1
LEVER-COMP,FR/RR 13236C 13236-1366 1
BOLT,FLANGED-SMALL,6X8.1X2.5 92002 92002-1962 2
NUT,FLANGED,8MM 92015 92015-1406 2
WASHER,6.1X12X1 92022 92022-077 2
PIN 92043 92043-1415 2
SPRING 92081 92081-1853 1
SPRING 92145 92145-0253 1
SPRING 92145A 92145-0949 1
BOLT,NEUTRAL POSITION 92154 92154-1139 1
BALL-STEEL,13/32 600 600A1300 1
O RING,10MM 670 670B2010 2
