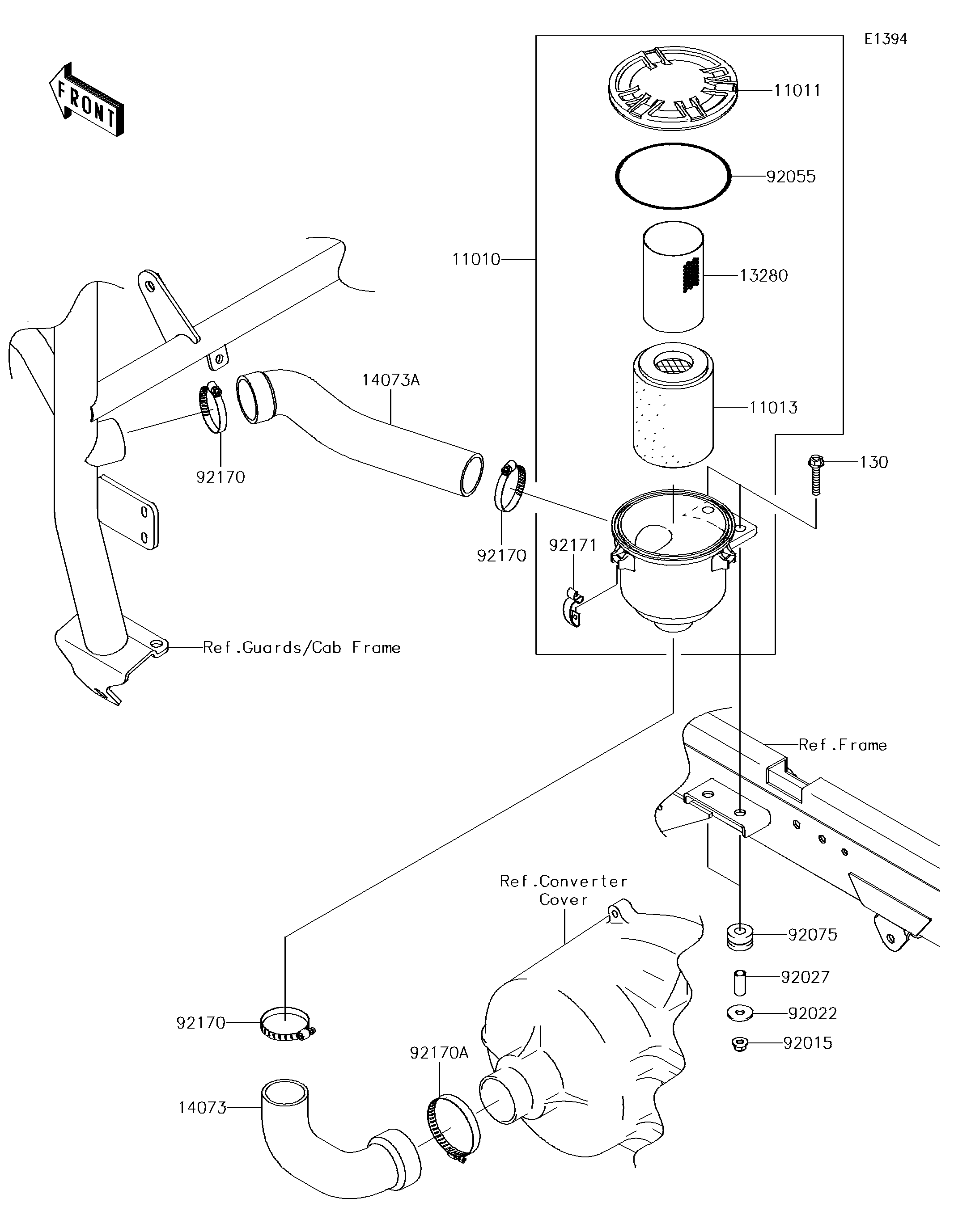

2014 MULE™ 4010 4x4 - Air Cleaner-Belt Converter
11010
11011
11013
13280
14073
14073A
92015
92022
92027
92055
92075
92170
92170
92170
92170A
92171
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-0172 | 1 | ||
| CASE-AIR FILTER,CAP | 11011 | 11011-0135 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-0037 | 1 | ||
| HOLDER | 13280 | 13280-0312 | 1 | ||
| DUCT,AIR FILTER-CVT | 14073 | 14073-0198 | 1 | ||
| DUCT,BAR-AIR FILTER | 14073A | 14073-0238 | 1 | ||
| NUT,8MM | 92015 | 92015-1432 | 2 | ||
| WASHER,9X28X2.3 | 92022 | 92022-1632 | 2 | ||
| COLLAR | 92027 | 92027-4012 | 2 | ||
| RING-O,122X4 | 92055 | 92055-0167 | 1 | ||
| DAMPER | 92075 | 92075-1736 | 2 | ||
| CLAMP | 92170 | 92170-1674 | 3 | ||
| CLAMP | 92170A | 92170-1764 | 1 | ||
| CLAMP | 92171 | 92171-0225 | 3 | ||
| BOLT-FLANGED,8X40 | 130 | 130BA0840 | 2 |
